Frame & Fork

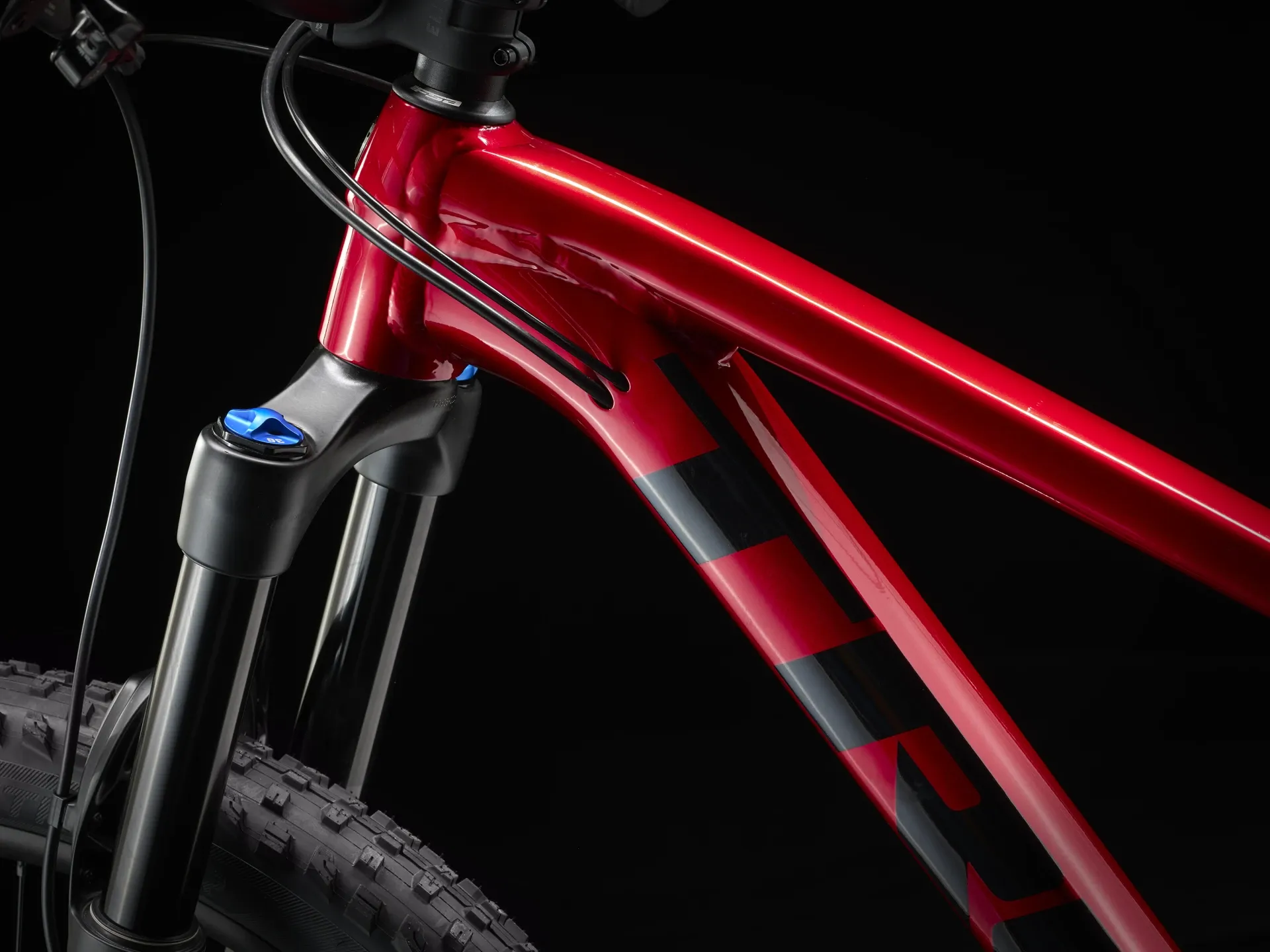

Frame: Alpha Gold Aluminium, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148

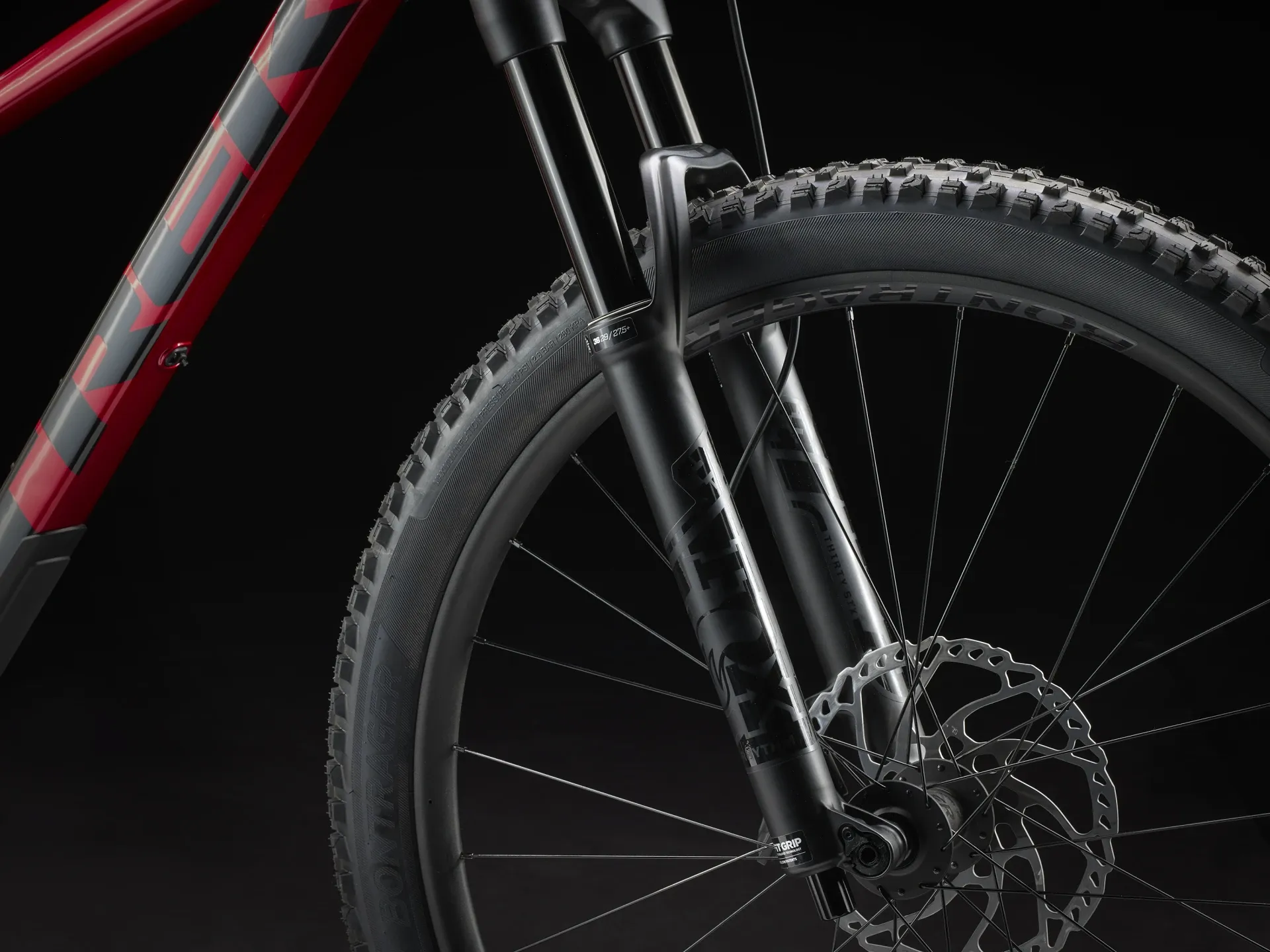

Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
Wheels & Tyres
Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rear Skewer: Bontrager Switch thru-axle, removable lever
Rims: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve

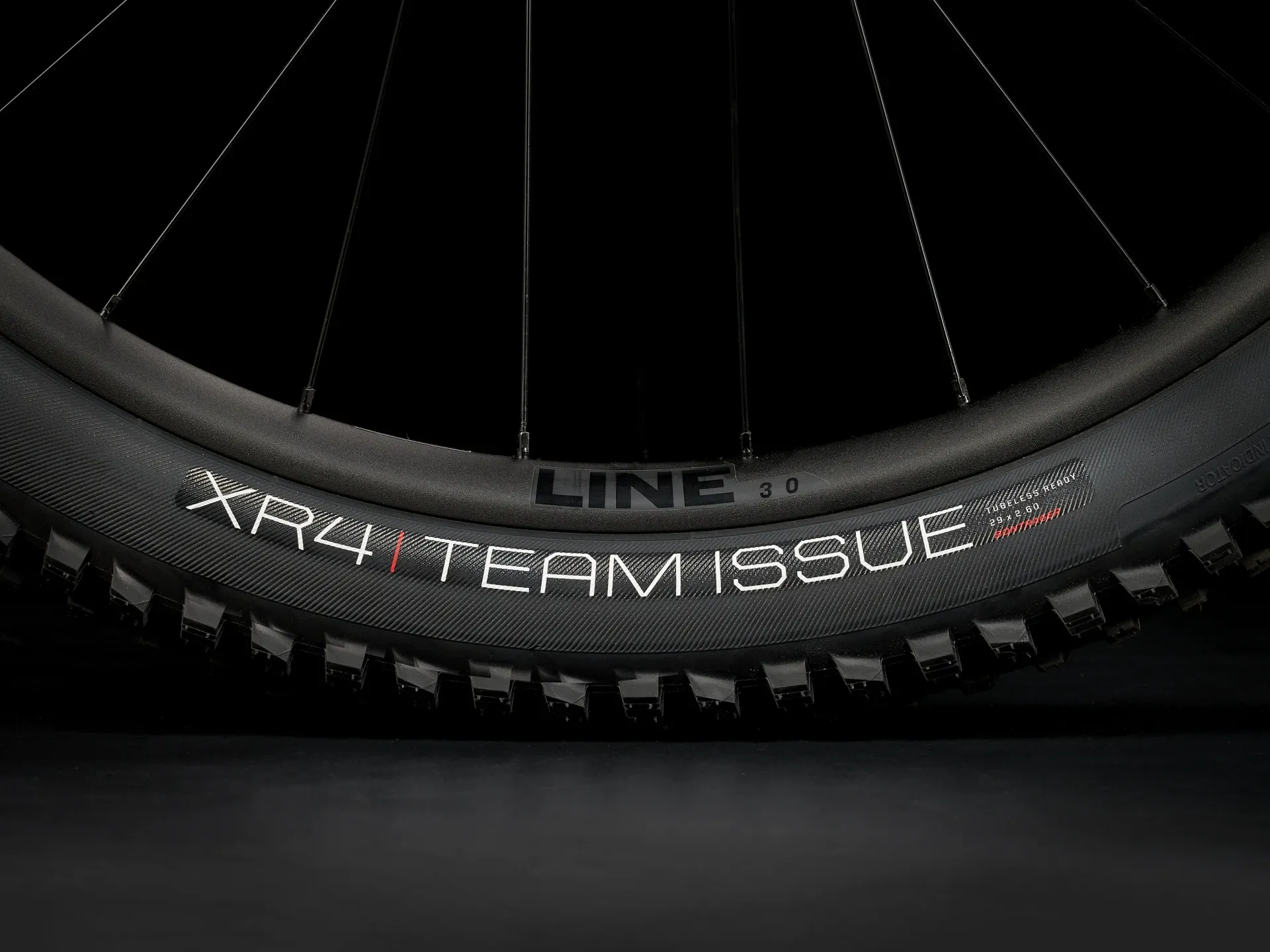

Tyres: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 2.60"
Sealant: Bontrager TLR sealant, 180 ml/6 oz
Valves: Bontrager TLR valve, 50 mm
Rim Strip: Bontrager TLR
Gears & Drivertrain
Shifter: Shimano SLX M7100, 12-speed

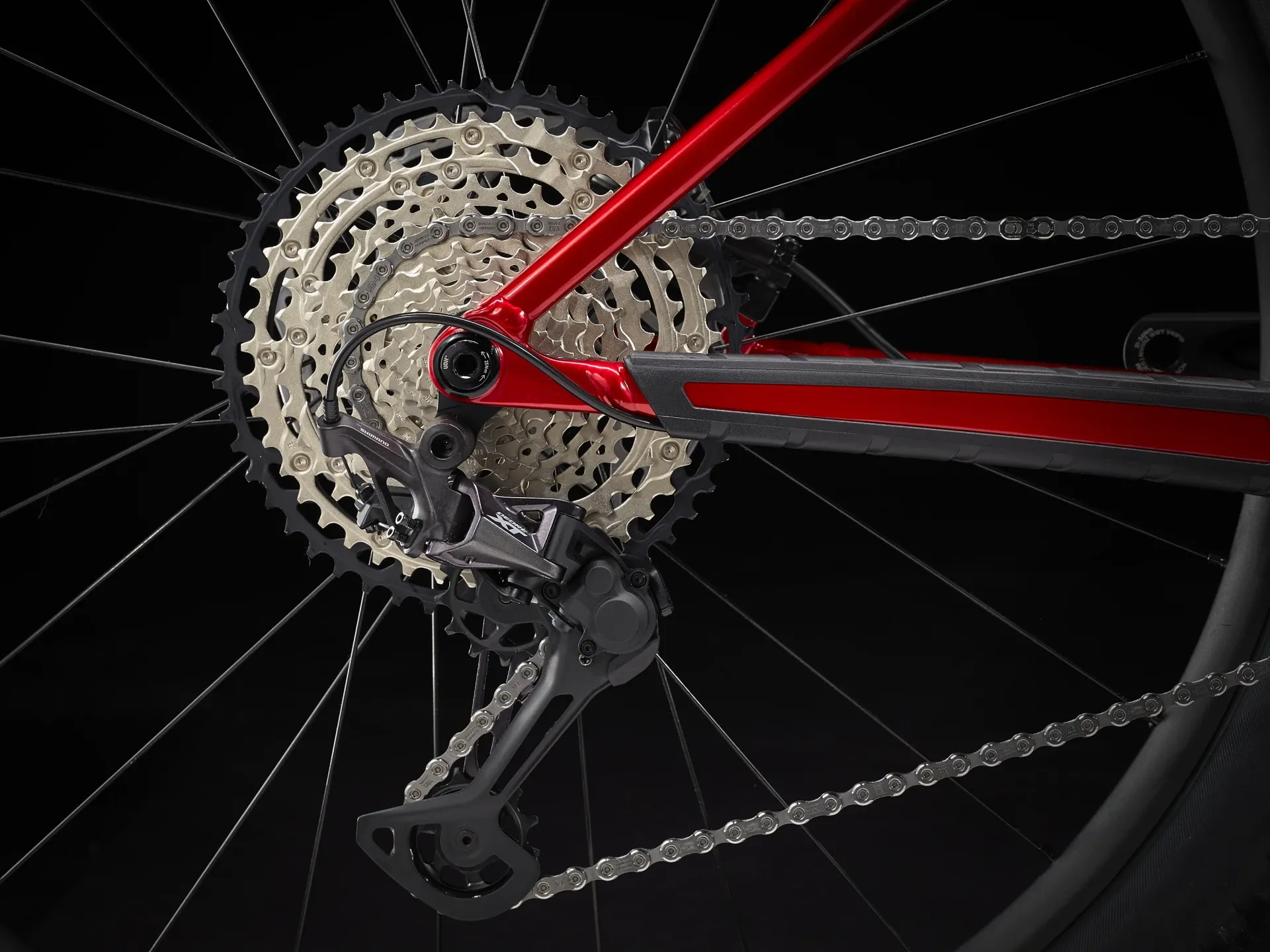

Rear Derailleur: Shimano XT M8100, long cage, 51T max cog

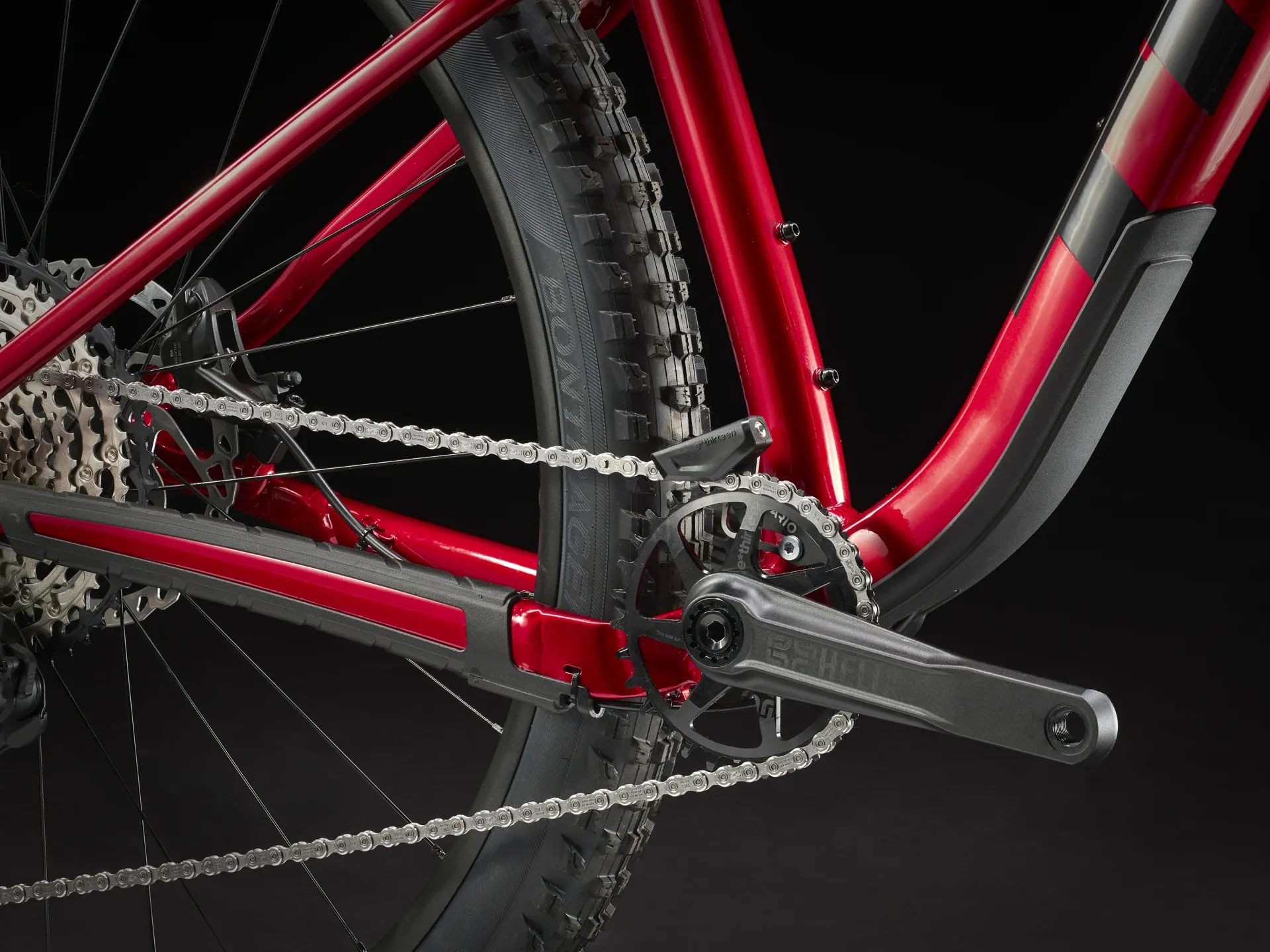

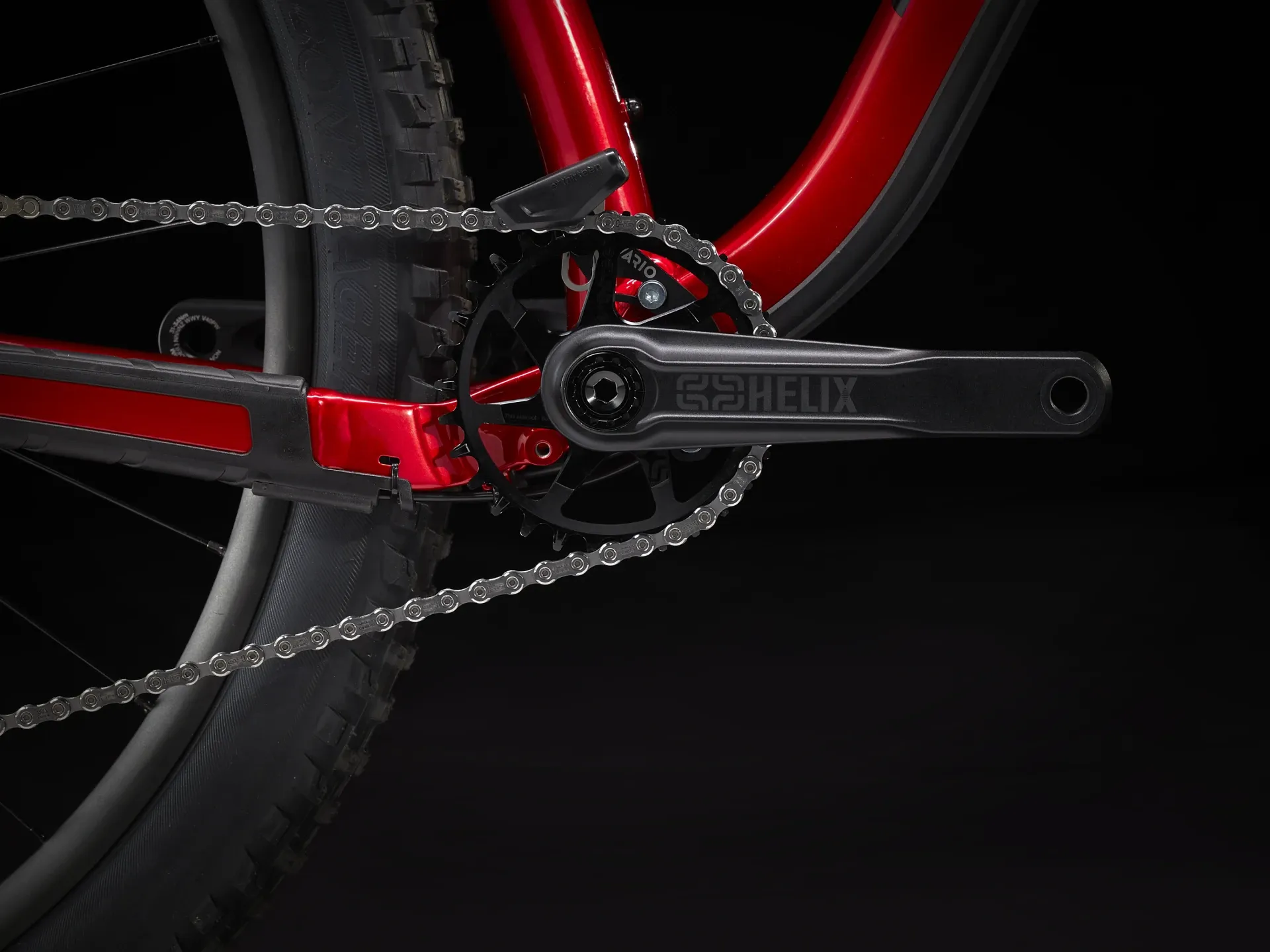

Crank: E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chainline,
Bottom Bracket: Shimano SM-BB52, 73 mm, threaded external bearing
Cassette: Shimano SLX M7100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Brakes
Brake: Shimano M6120 4-piston hydraulic disc
Brake Lever: Shimano M6100 lever
Brake Rotor: Shimano RT66, 6-bolt, 180/203mm
Components
Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost: TranzX JD-YSP18, XS/S: 100mm Travel, M: 130mm Travel, ML-XL: 150mm Travel, internal routing, 31.6 mm, 361mm (XS-S), 425mm (M), 445mm (ML-XL) Length

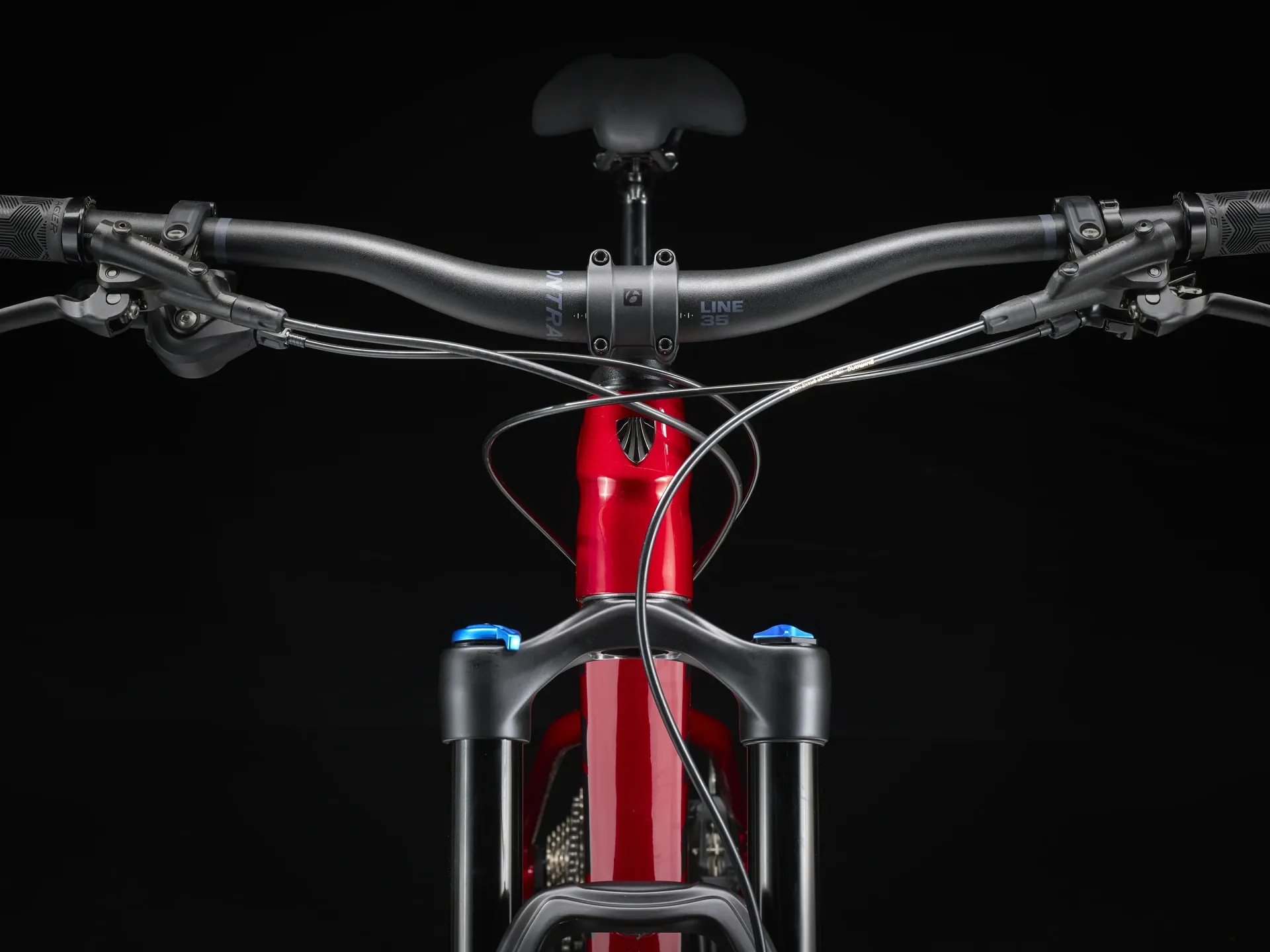

Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise
Stem: Bontrager Elite, 35 mm, 0-degree
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Weight
Weight: M - 28.95 lbs / 13.13 kg (with TLR sealant, no tubes)
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
