Frame & Fork

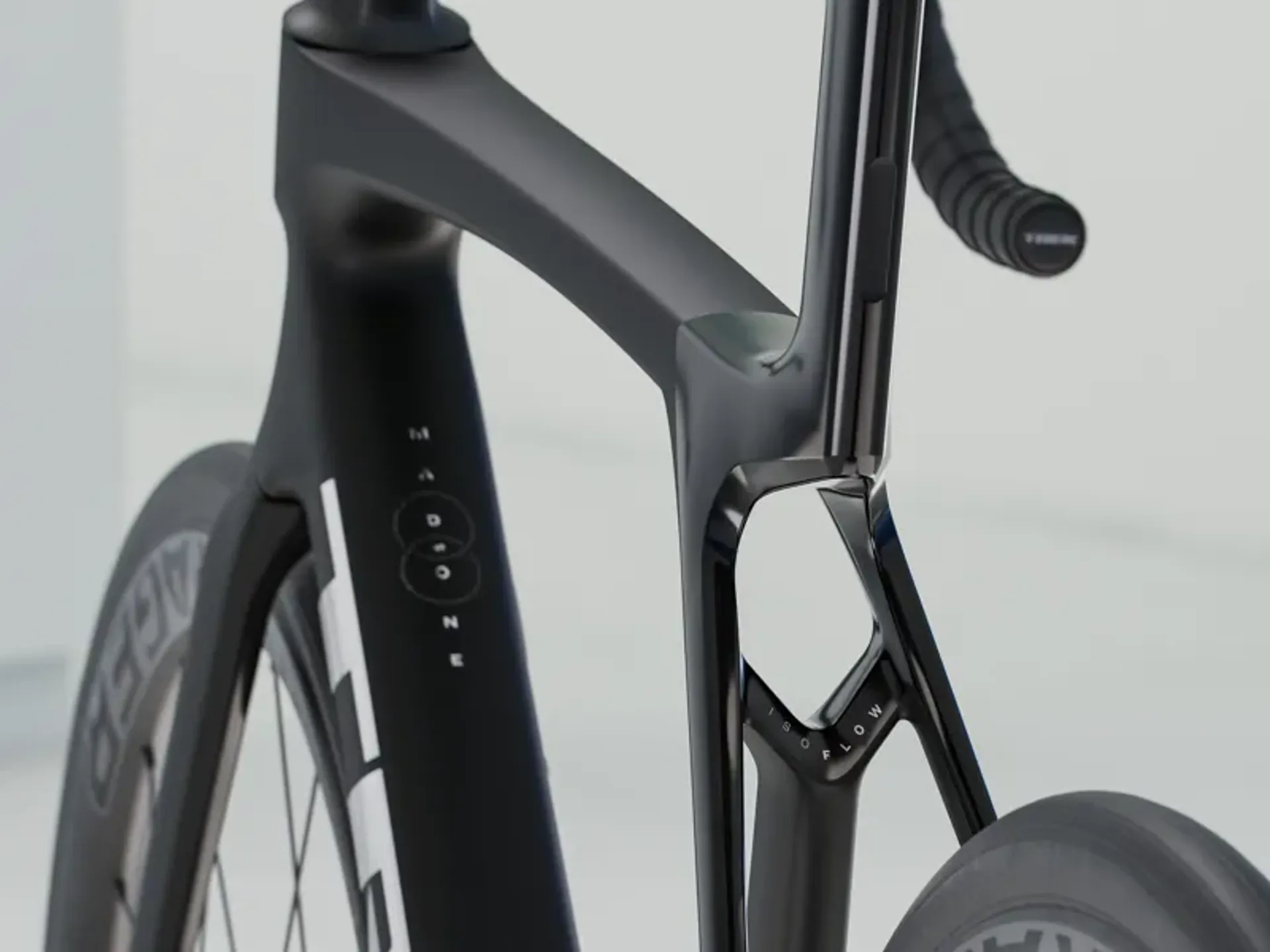

Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Wheels & Tyres
Front Wheel: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm Rim Depth, 100x12mm thru axle
Rear Wheel: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm Rim Depth, 142x12 mm thru axle
Front Hub: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12 mm thru axle
Rear Hub: Bontrager Affiinity Comp, SRAM XD-R freehub, 142x12 mm thru axle
Front Skewer: Bontrager Switch chamfered thru axle, removable lever
Rear Skewer: Bontrager Switch chamfered thru axle, removable lever
Rims: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Tyres: Bontrager R3 Hard-Case Lite, Aramid Bead, 170tpi, 700x28mm
Sealant: Bontrager TLR Sealant, 180ml/6oz
Rim Strip: Bontrager TLR

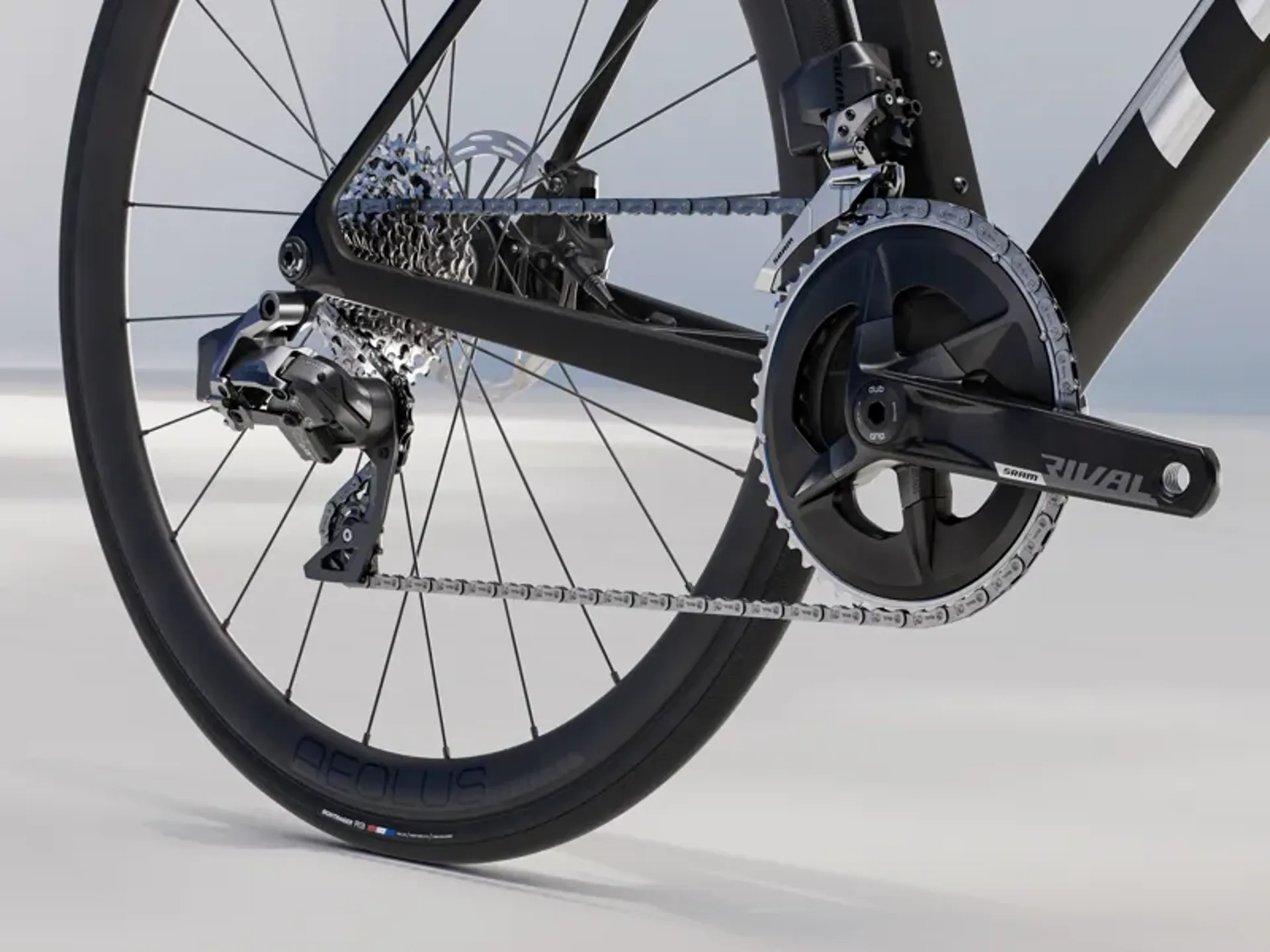

Gears & Drivetrain
Shifters: SRAM Rival eTap AXS, 12-speed
Front Derailleur: SRAM Rival D1 AXS, braze-on
Rear Derailleur: SRAM Rival AXS
Crankset: SRAM Rival AXS w/ power meter, 48/35, DUB
Bottom Bracket: SRAM DUB, T47 threaded, internal bearing
Cassette: SRAM XG-1250, 10-36, 12-speed
Chain: Sram 12-Speed
Brakes
Brake: SRAM Rival Hydraulic Disc Caliper
Brake Rotor: SRAM Paceline, rounded, CentreLock, 160 mm
Components
Saddle: Bontrager Aeolus Comp, Steel Rails
Seatpost: Madone Aero Carbon Seat Post, 0mm Offset

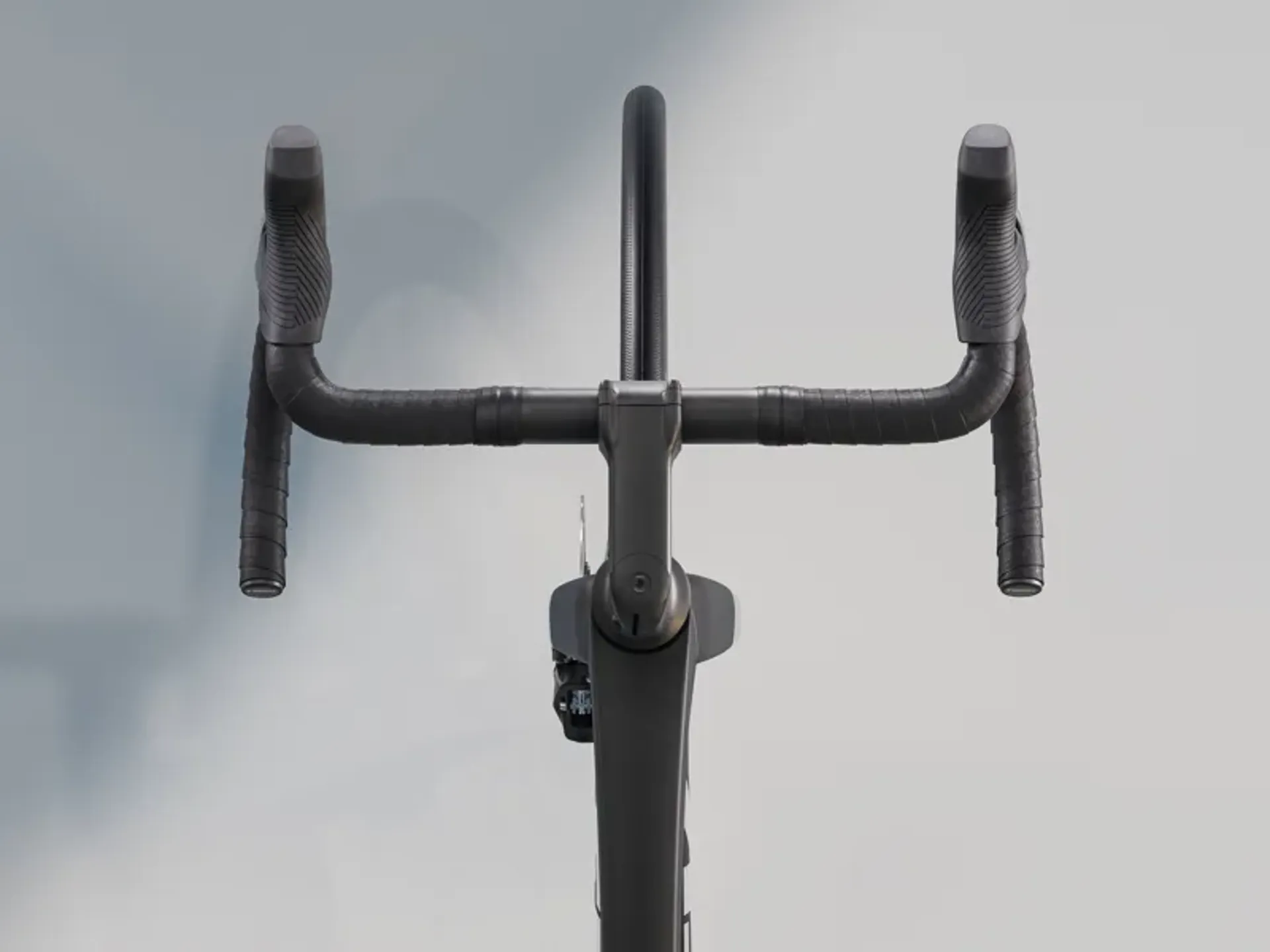

Handlebar: Bontrager Comp Alloy, 31.8mm Clamp
Stem: Trek RCS Pro -7-degree
Accessories
Battery: SRAM eTap battery pack (with charger)
Weight
Weight: ML - ML - 8.43 kg / 18.59 lbs (with TLR sealant, no tubes)
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
