Frame & Fork

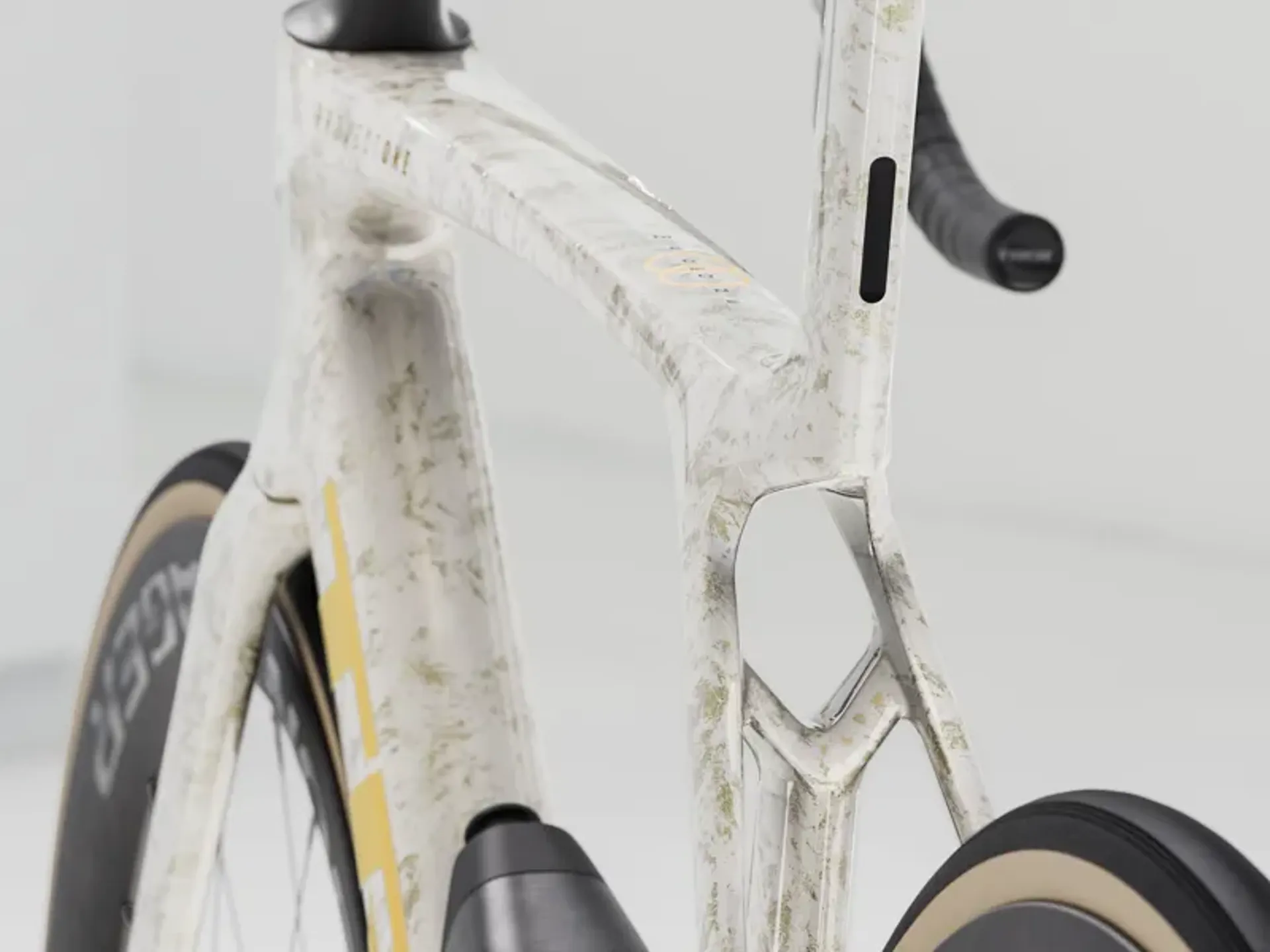

Frame: 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Wheels & Tyres
Front Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Rear Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-Speed Freehub, 142x12 mm thru axle
Front Skewer: Bontrager Switch chamfered thru axle, removable lever
Rear Skewer: Bontrager Switch chamfered thru axle, removable lever
Rims: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Tyres: Pirelli P Zero Race, 120tpi, tubeless compatible, 700x28mm
Sealant: Bontrager TLR Sealant, 180ml/6oz
Rim Strip: Bontrager TLR
Gears & Drivetrain
Shifters: Shimano Ultegra R8170 Di2, 12-speed
Front Derailleur: Shimano Ultegra R8150 Di2, braze-on
Rear Derailleur: Shimano Ultegra R8150 Di2
Crankset: Shimano Ultegra R8100, 52/36
Bottom Bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano Ultegra R8101, 11-30, 12-speed
Chain: Shimano Ultegra/XT M8100, 12-Speed
Brakes
Brake: Shimano Ultegra Hydraulic Disc Caliper
Brake Rotor: Shimano CL800, CentreLock, 160 mm
Components
Saddle: Bontrager Aeolus P2 Pro, Carbon Rails
Seatpost: Madone Aero Carbon Seat Post, 0mm Offset

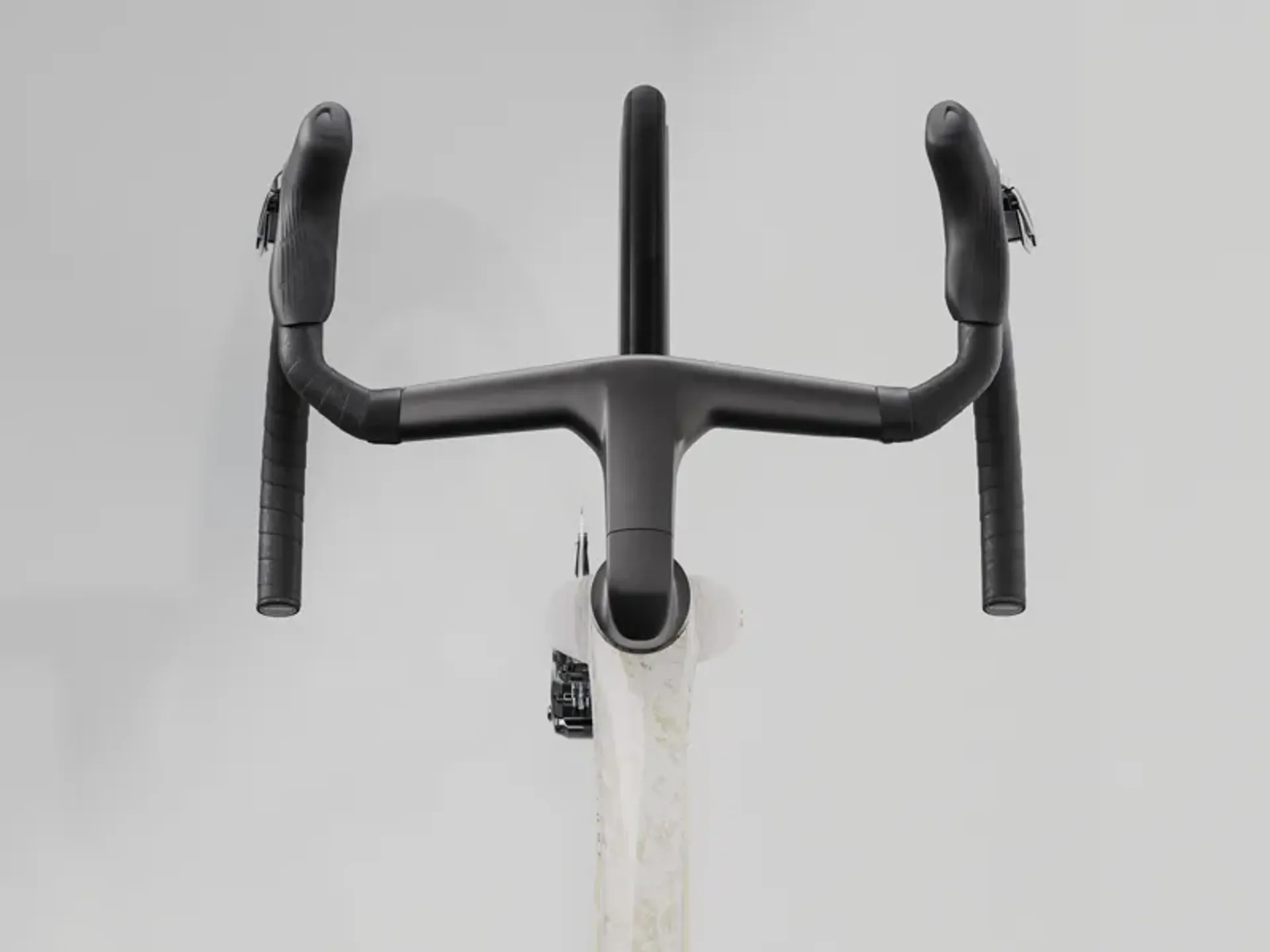

Handlebar: Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit
Stem: Integrated with bar
Accessories
Battery: Shimano BT-DN300
Charger: Charging cable included
Weight
Weight: ML - 7.31 kg / 16.12 lbs (with TLR sealant, no tubes)
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
