Rims
Material: S6000 Aluminum
Height: 21 mm
Joint: sleeved
Drilling: traditional
Disc brake specific profile
E-Bike specific rim profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Internal width: 25 mm
ETRTO size 29: 622x25TSS
Hookless profile
UST Tubeless Ready
Spokes
Material: steel
Shape: j-bent, round, 2.0 straight gauge
Nipples: steel, ABS
Count: 32 front and rear
Lacing: front and rear crossed 3

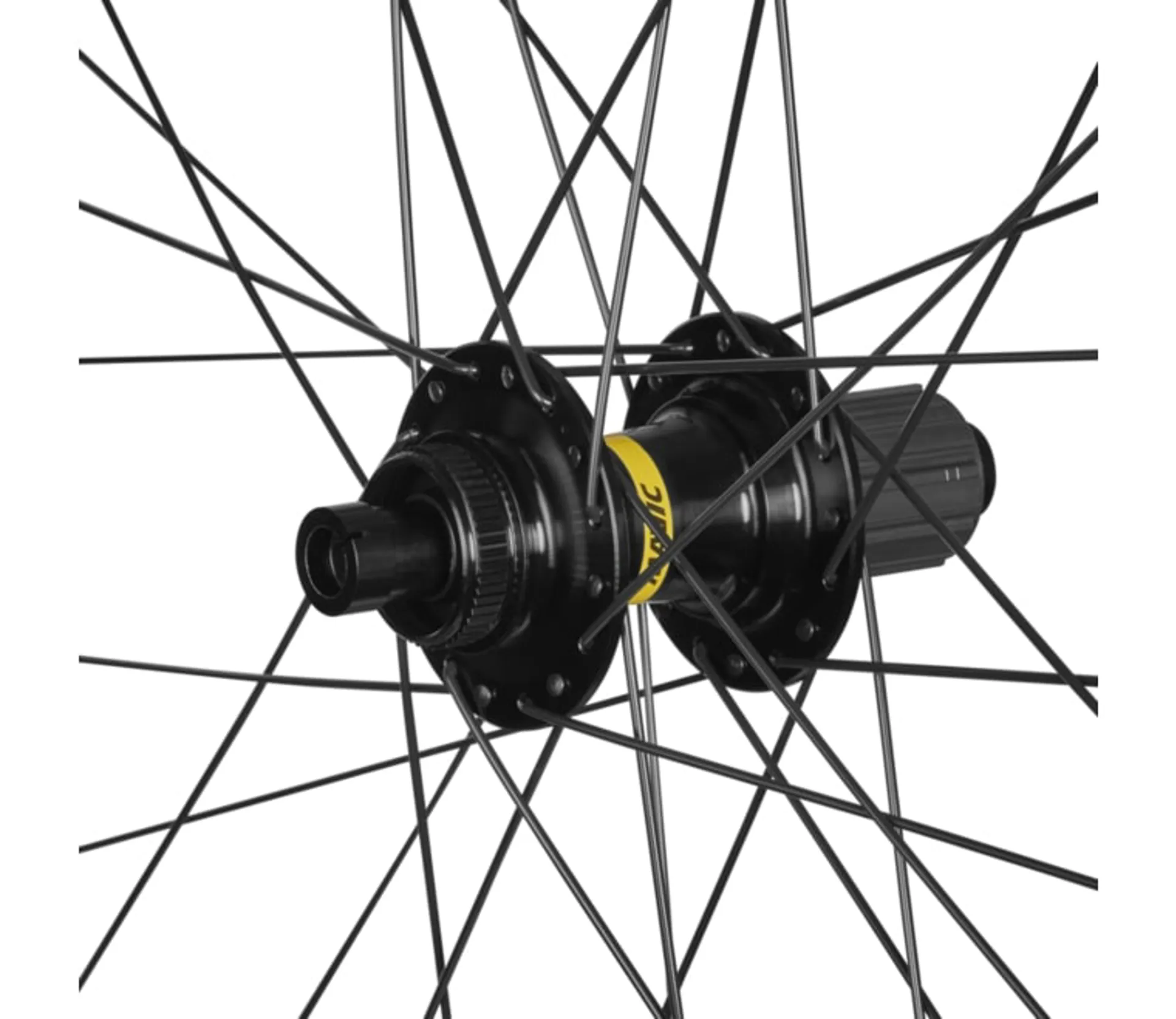

Hubs
Front and rear bodies: aluminum
Axle material: aluminum
Instant Drive 360 freewheel technology
QRM Auto bearing preload technology
Front: Quick release, 12x100 and 15x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Hub available for Center Lock brake rotors only
Versions
Disc standard: Center Lock® only
Freewheel: Shimano/Sram
Compatibility
Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W and XD-R with optional driver bodies
Front axle: 12mm thru axle, easily convertible to quick release with optional adapters. Convertible to 15mm with complete axle replacement
Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters and axle replacement
Compatible Adapters and freewheel bodies
12 to 9mm front adapter for quick release (V2680301)
15mm axle (V2373501)
12mm front hub cap (V2680501)
12x142 rear axle adapters (V2510701)
Non-Boost : 12x135 rear axle adapters (V2510901)
12 to 9mm rear adapter for quick release (V2510801 (with axle V2373401)
ID360 Shimano Micro Spline alloy freewheel body (V3990101)
ID360 XD-R freewheel body (V2580101)
ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
Delivered with
User guide
Intended use
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Recommended tire sizes: 28 to 64 mm (1.1 to 2.5)
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 180kg, E-bike included
Information on specified weight
The weight of the wheels is announced at +/-5%, in XD/XD-R and Center Lock version, without quick release, nor valve, nor rim tape
