Compatibility
Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Compatible Adapters and freewheel bodies
ID360 Shimano / Sram freewheel body (LV3430100- Delivered on the wheel)
ID360 XD-R freewheel body (LV2580100)
ID360 Campagnolo freewheel body (LV3440100)
ID360 Shimano / Sram Light freewheel body (LV3850100)
12x135 rear axle adapters (LV2510900)
12 to 9mm rear adapter for quick release (LV2510800- Delivered with the wheel)
12x142 rear axle adapters (LV2510700- Delivered with the wheel)
12mm front hub cap (LV2680500- Delivered with the wheel)
12 to 9mm front adapter for quick release (LV2680300)
Weight
Pair without tyre: 1670 grams
Front without tyre: 750 grams
Rear without tyre: 920 grams

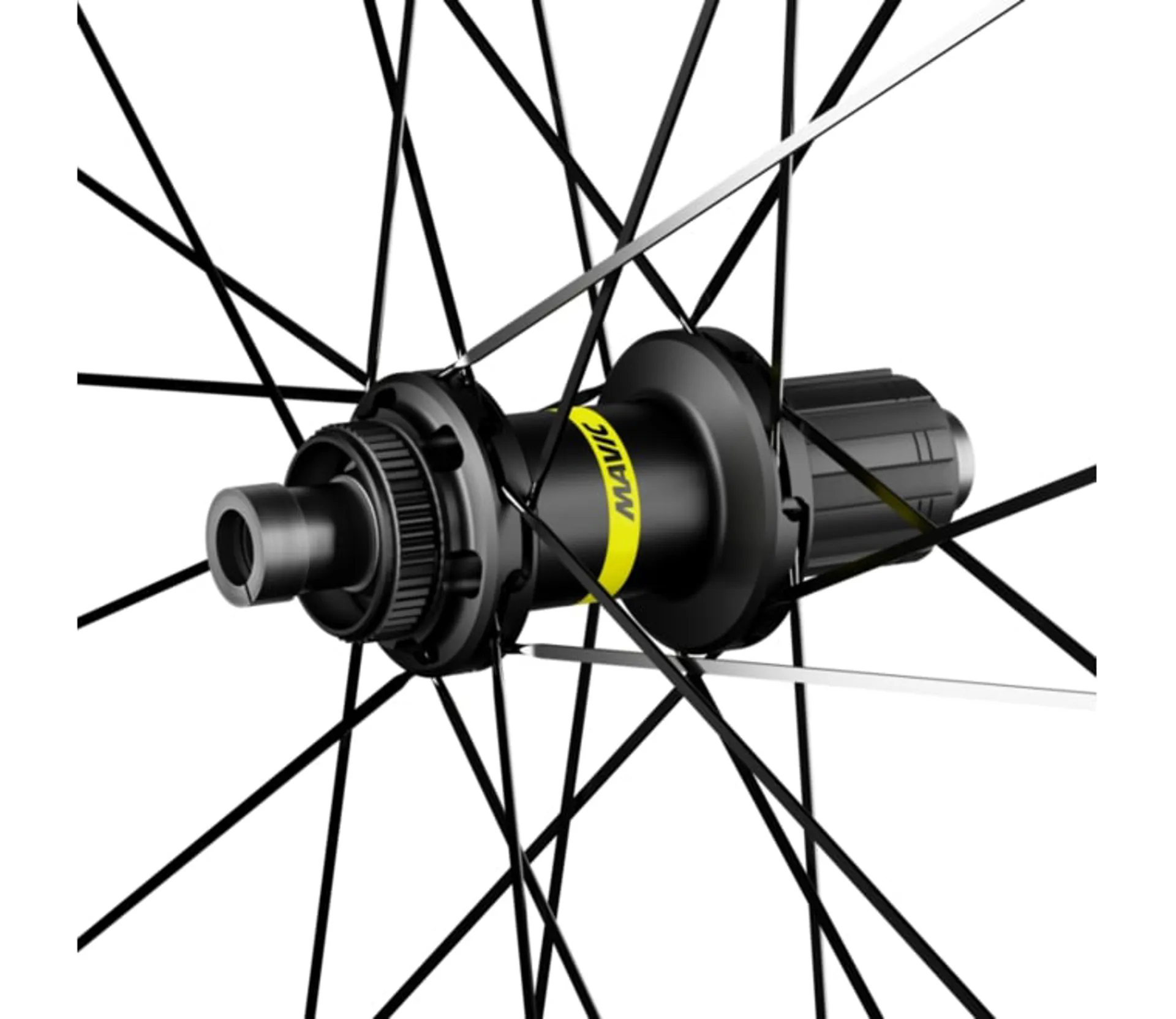

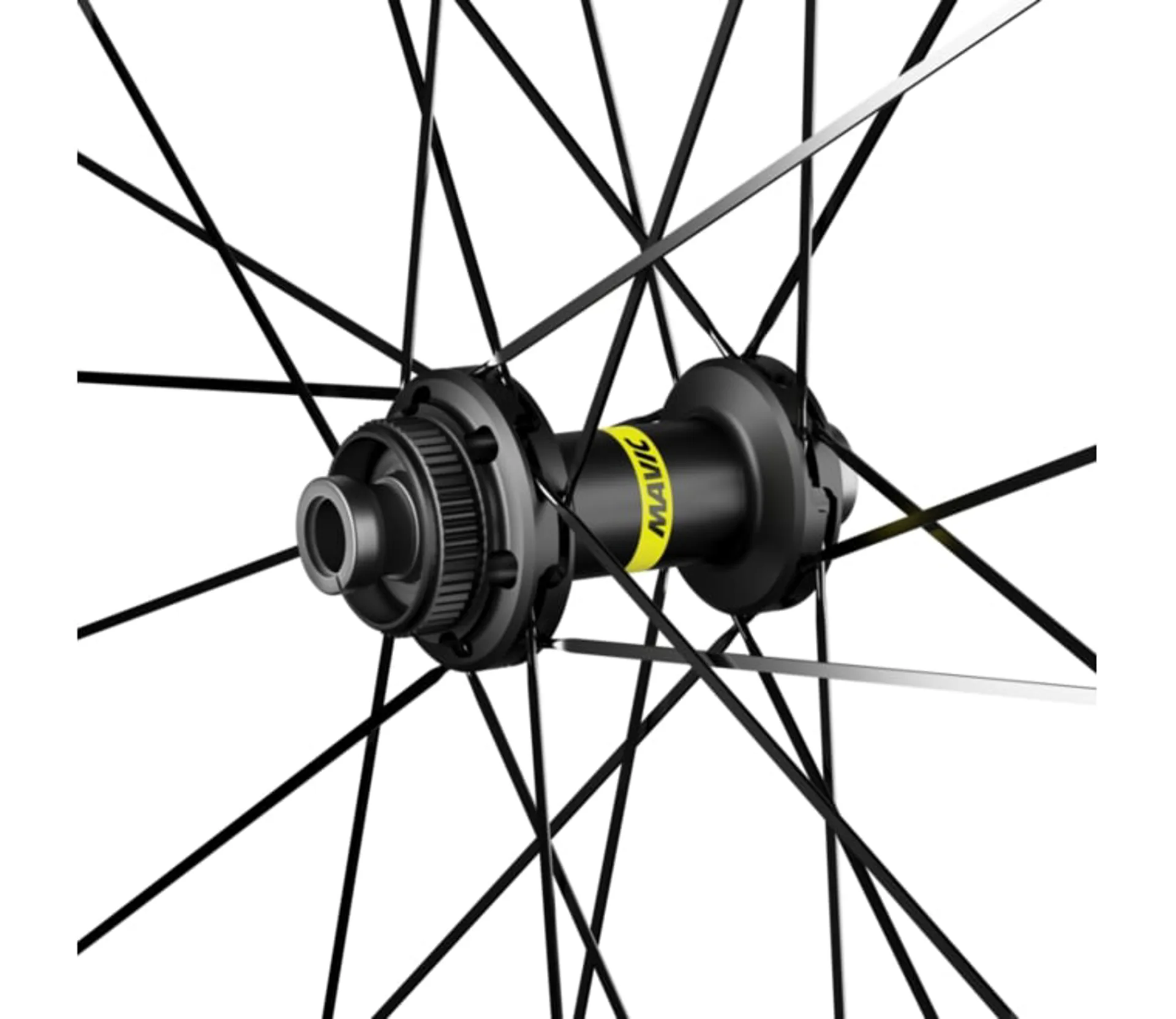

Hubs
Infinity Hubs
Front: Quick release and 12x100 through axle compatible
QRM Auto bearing preload technology
Rear: Quick Release, 12x142 and 12x135 compatible
Instant Drive 360 freewheel technology
Front and rear bodies: aluminum
Axle material: aluminum
Intended Use
Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn't exceed 120kg, bike included
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Recommended tyre sizes: 25 to 32 mm
Rims
Height: 22 mm
ETRTO size: 622x19TC Road
UST tubeless technology
Fore tapeless tubeless technology
SUP welding technology
Internal width: 19 mm
Disc brake specific profile
Tire: UST Tubeless and tubetype
Material: Maxtal
Spokes
Lacing: front and rear crossed 2, contactless
Shape: straight pull, flat, double butted
Material: steel
Nipples: Fore integrated aluminum
Count: 24 front and rear
Versions
Freewheel: Shimano/Sram or XD-Road
Disc standard: Center Lock (R) only
Delivered With
Rear QR adapters for Instant Drive 360
Front QR adapters
UST valve and accessories
User guide
