Frame & Fork

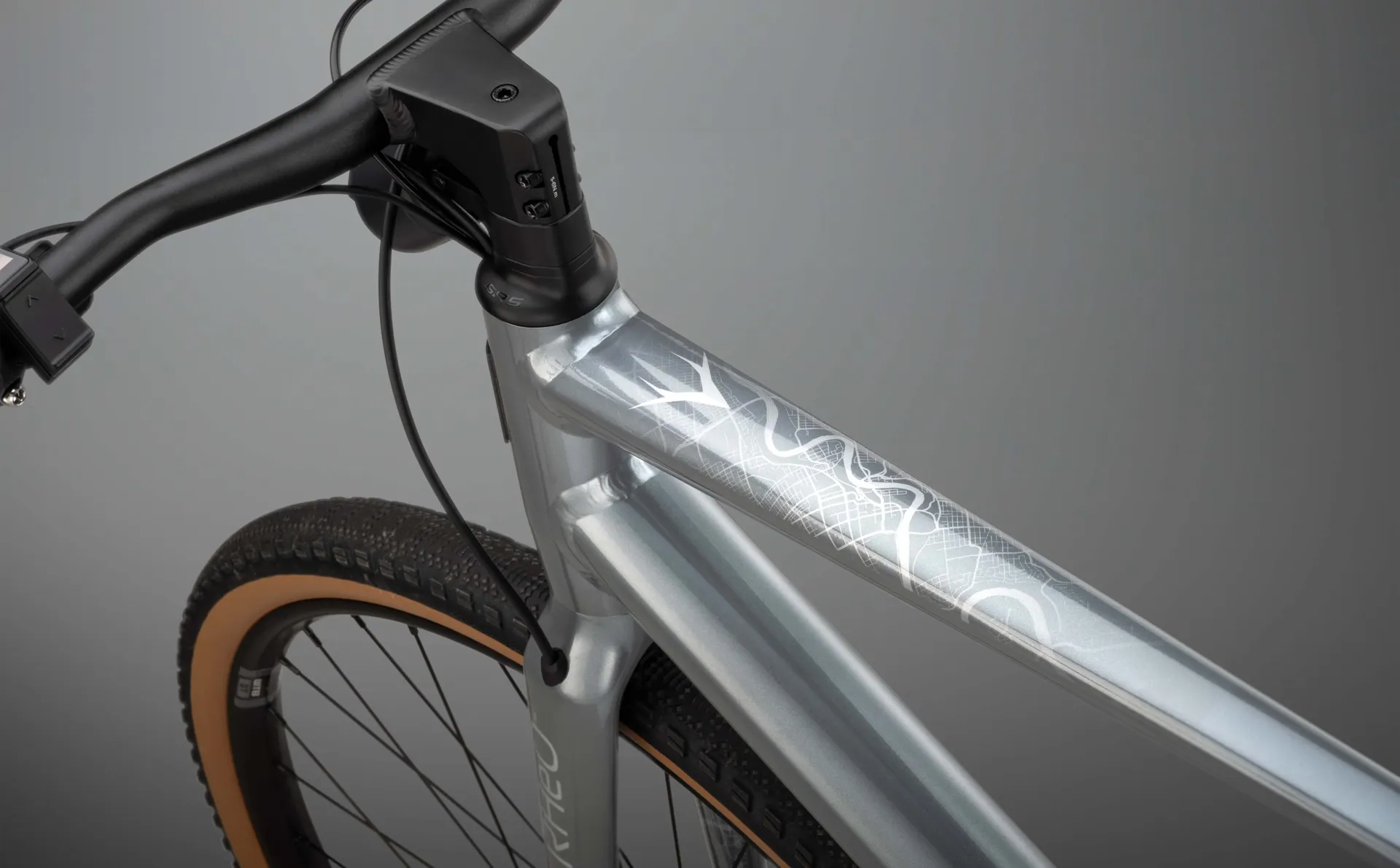

Frame: 6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts, chain stay kick stand mount

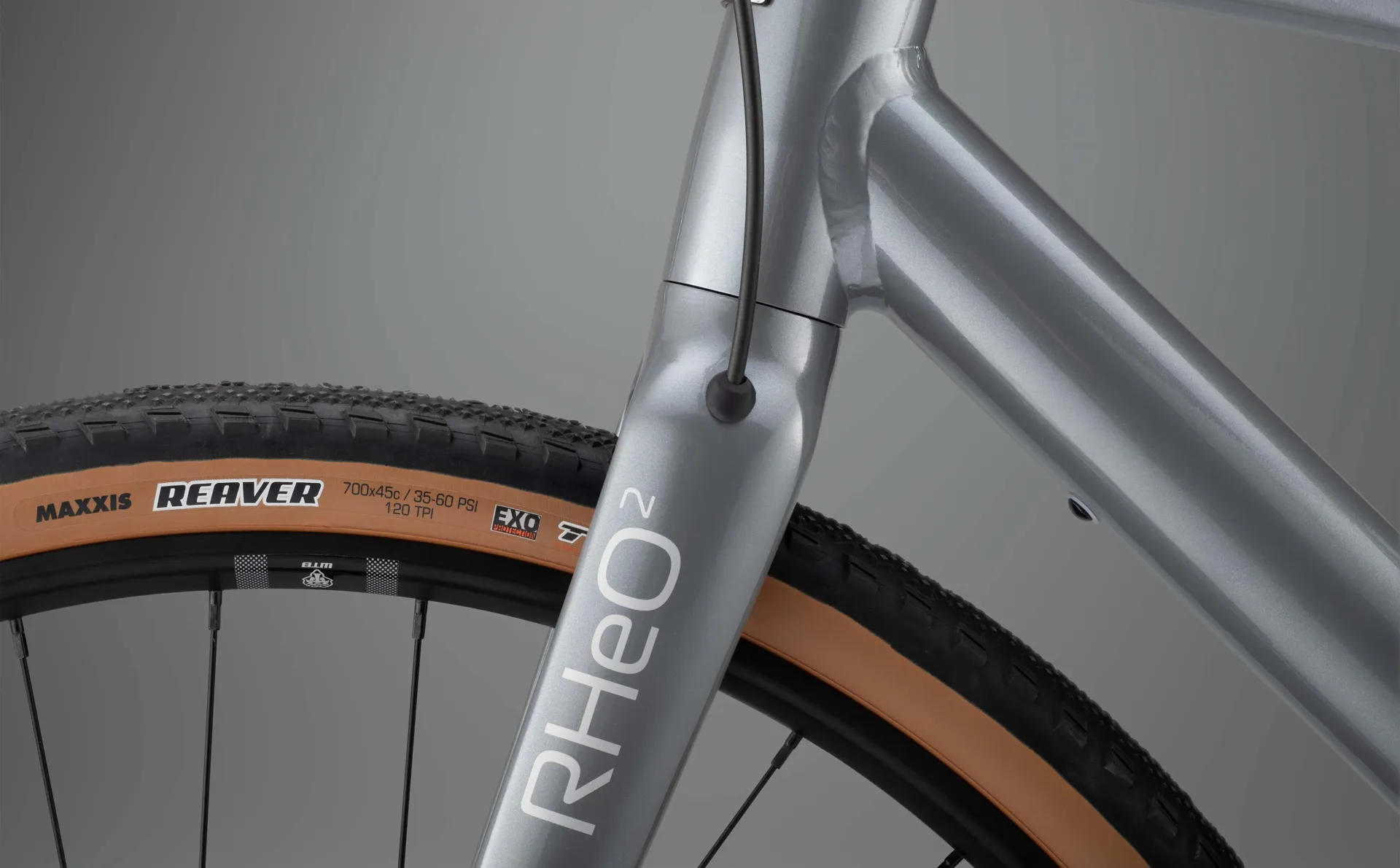

Fork: Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, Post Mount with single eyelets for mudguards
Wheels & Tyres
Front Hub: Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole

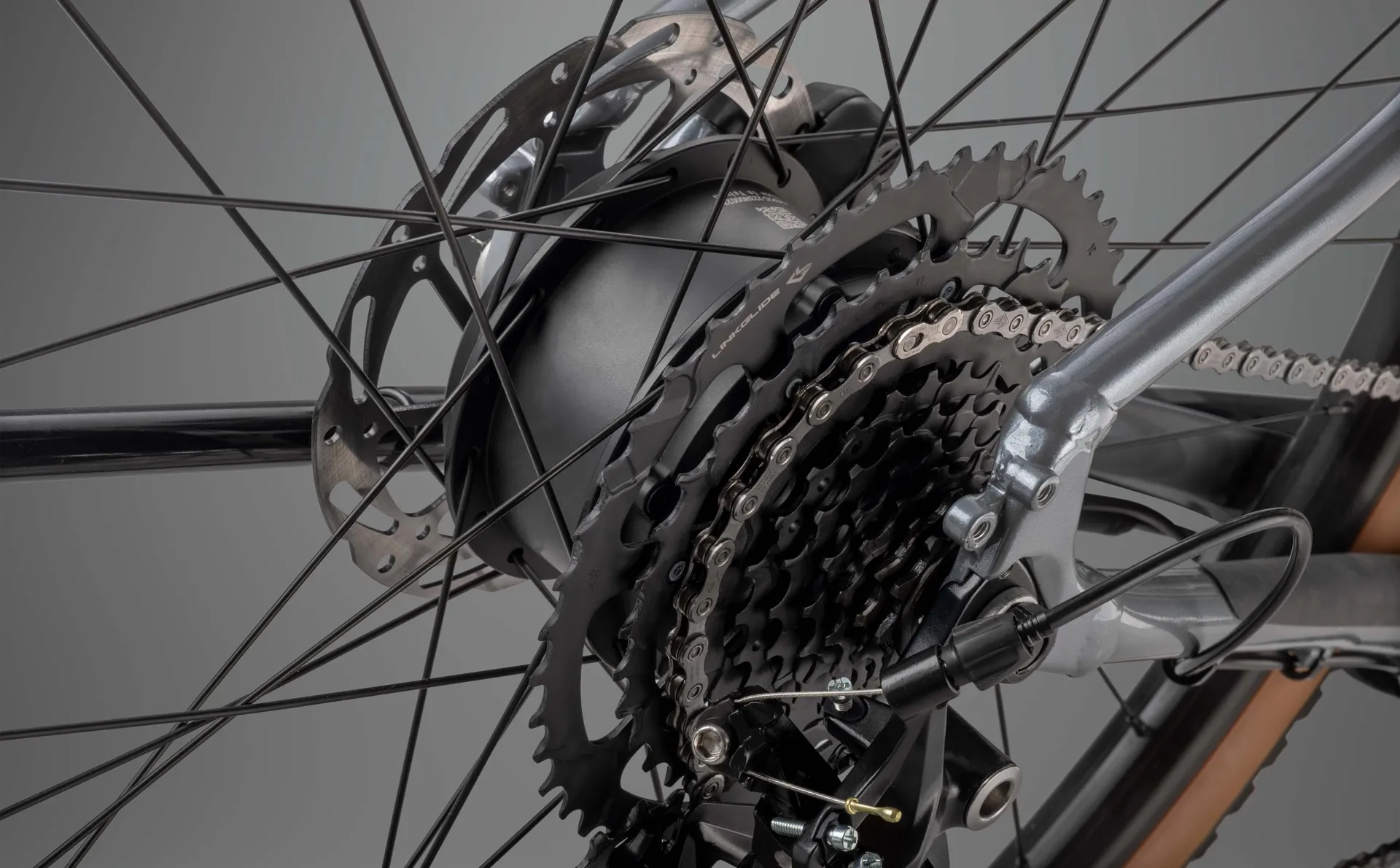

Rear Hub: Kynamic 250W, 36V, 45Nm 142mm power hub with replaceable freehub, 32 hole
Rims: WTB STp I27 rims, 32 hole
Spokes: 2.0mm, PG, black stainless, brass nipples
Tyres: Maxxis Reaver Tanwall 700 x 45c, EXO wire bead

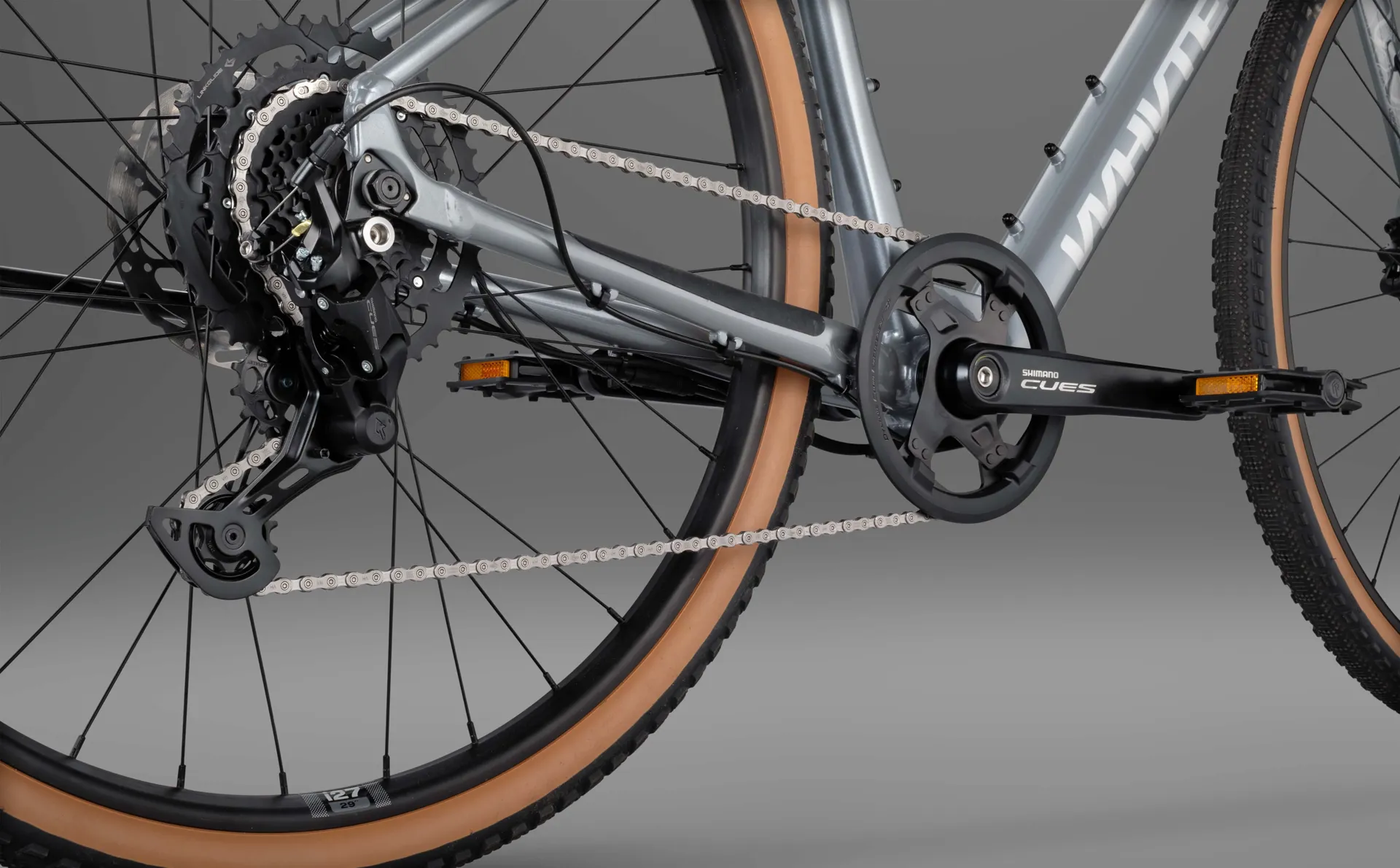

Gears & Drivetrain
Shift Levers: Shimano Cues 9 speed Rapidfire
Crankset: Shimano Cues 9 speed, 170mm, 40T chainring, with chain guard
Chain: Shimano Cues 9 speed
Cassette: Shimano Cues, 9 speed, 11-46T
Rear Mech: Shimano Cues 9 speed, Shadow Design and direct attachment
Bottom Bracket: Kynamic BSA, square taper, 122.5mm, with torque sensor
Brakes

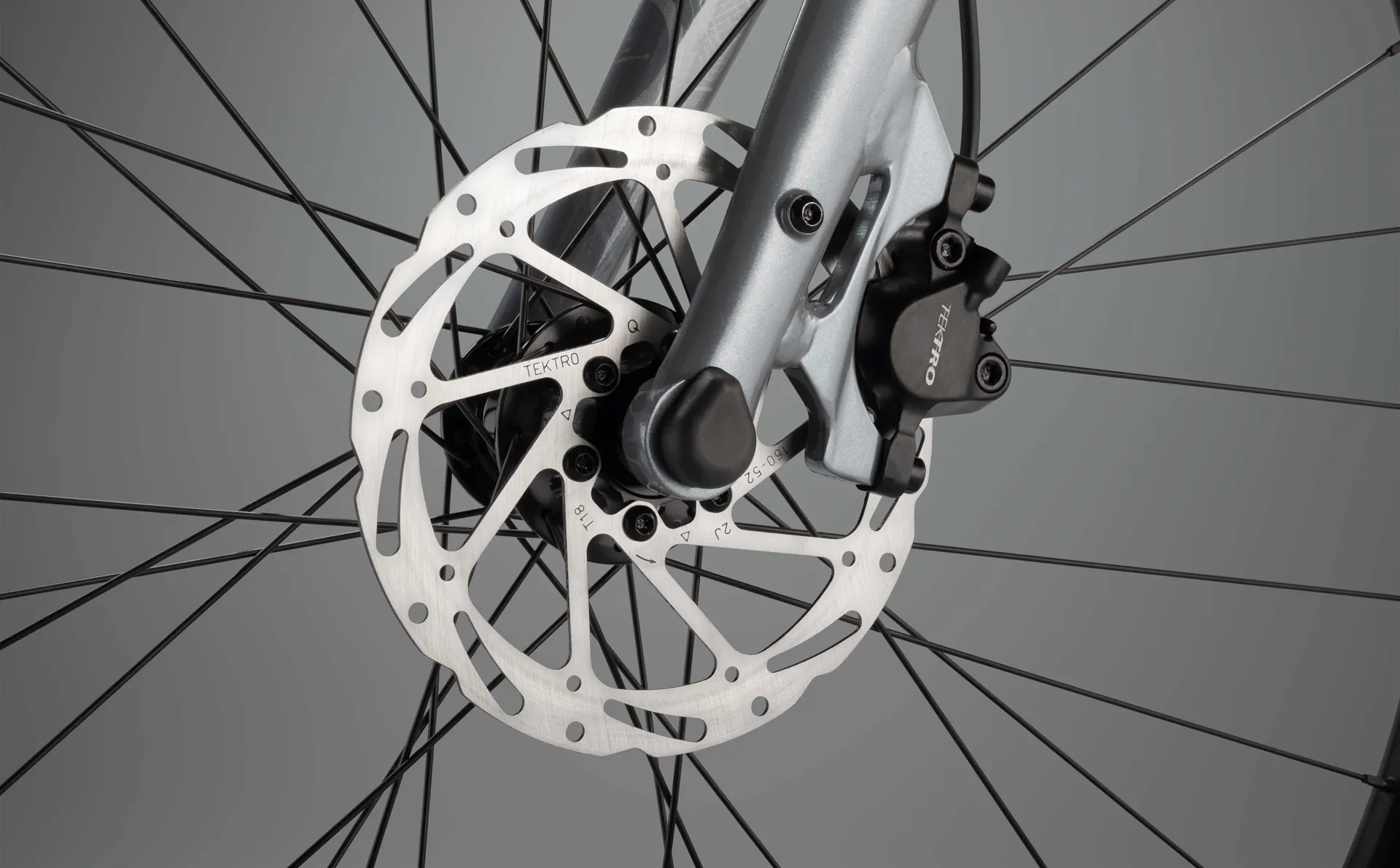

Front Brake: Tektro T3020 hydraulic, 1.8mm thick 180mm diameter disc rotor
Rear Brake: Tektro T3020 hydraulic, 1.8mm thick 180mm diameter disc rotor
Brake Levers: Tektro T3020 Clean Sweep Design, three finger comfort lever
Components

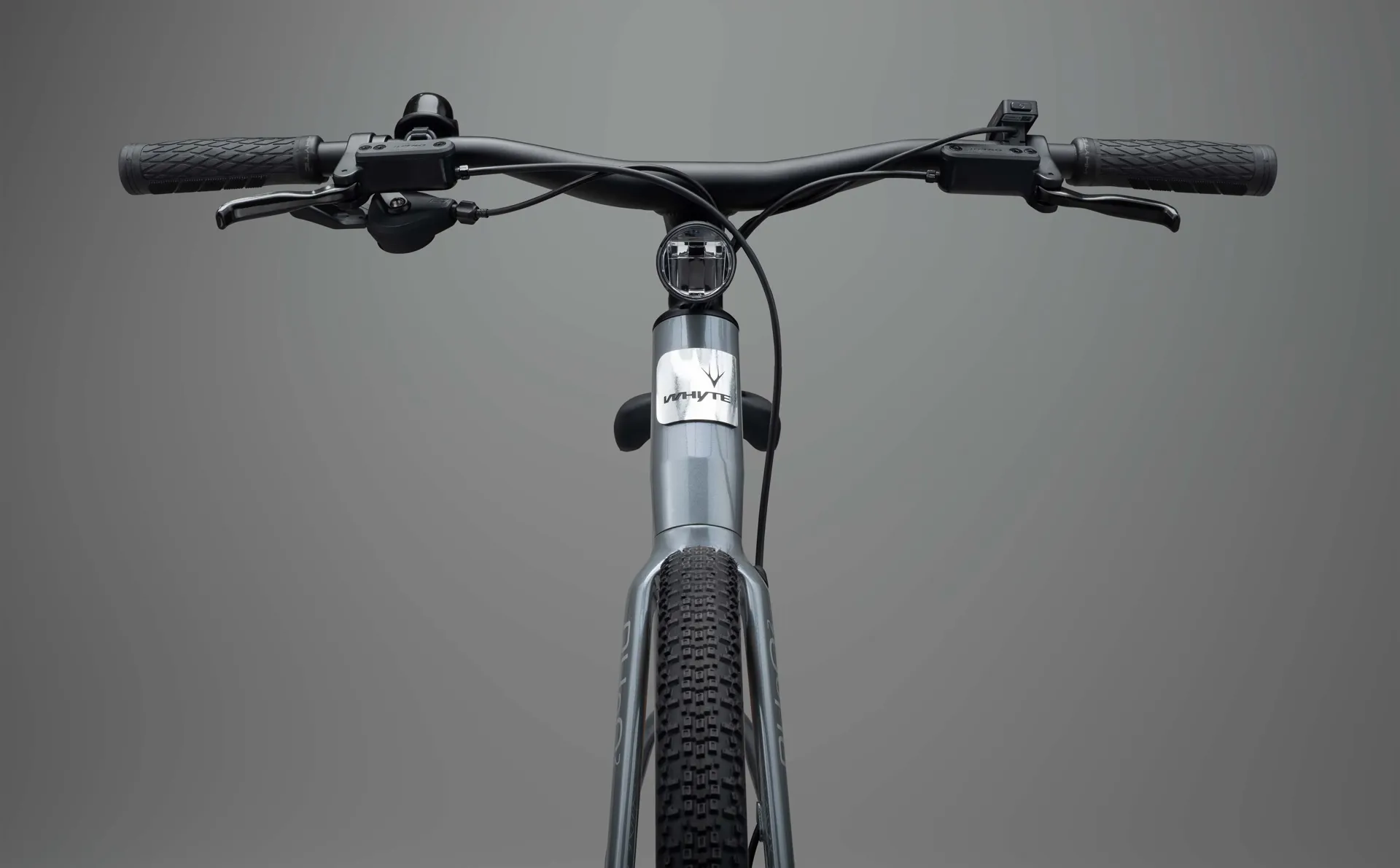

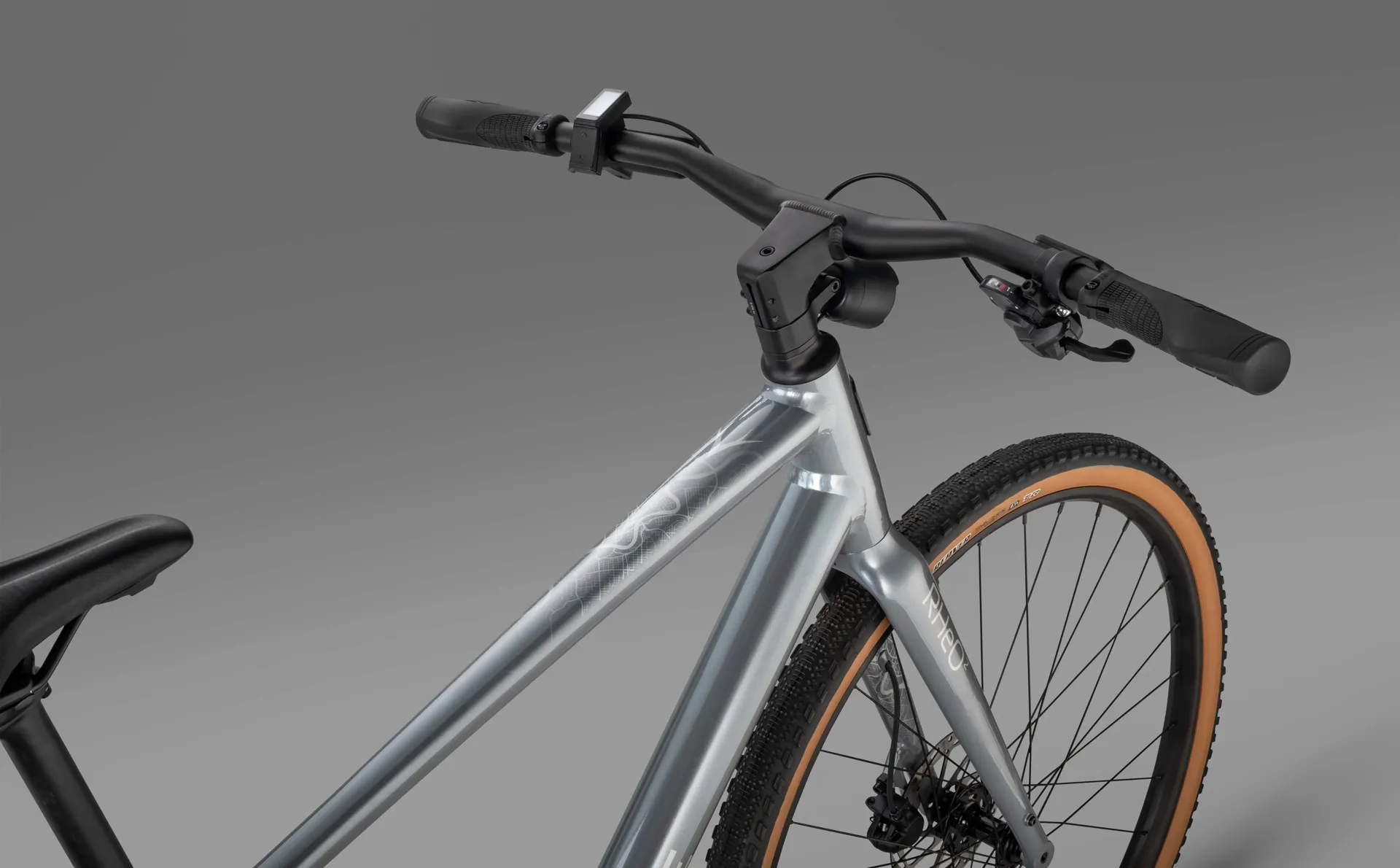

Handlebar: Whyte one piece bar and stem: 50mm extension, 720mm width, 20mm rise, seven degree backsweep, four degree upsweep
Grips: Whyte Custom dual density lock-on
Saddle: Whyte Custom
Seatpost: Whyte 6061 alloy, 27.2mm diameter, two-bolt clamp
Headset: No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed catridge bearings and front entry for cables
Pedals: Fibre reinforced composite platform
Weight
Weight: 15.5kg (size M)
