Frame & Fork

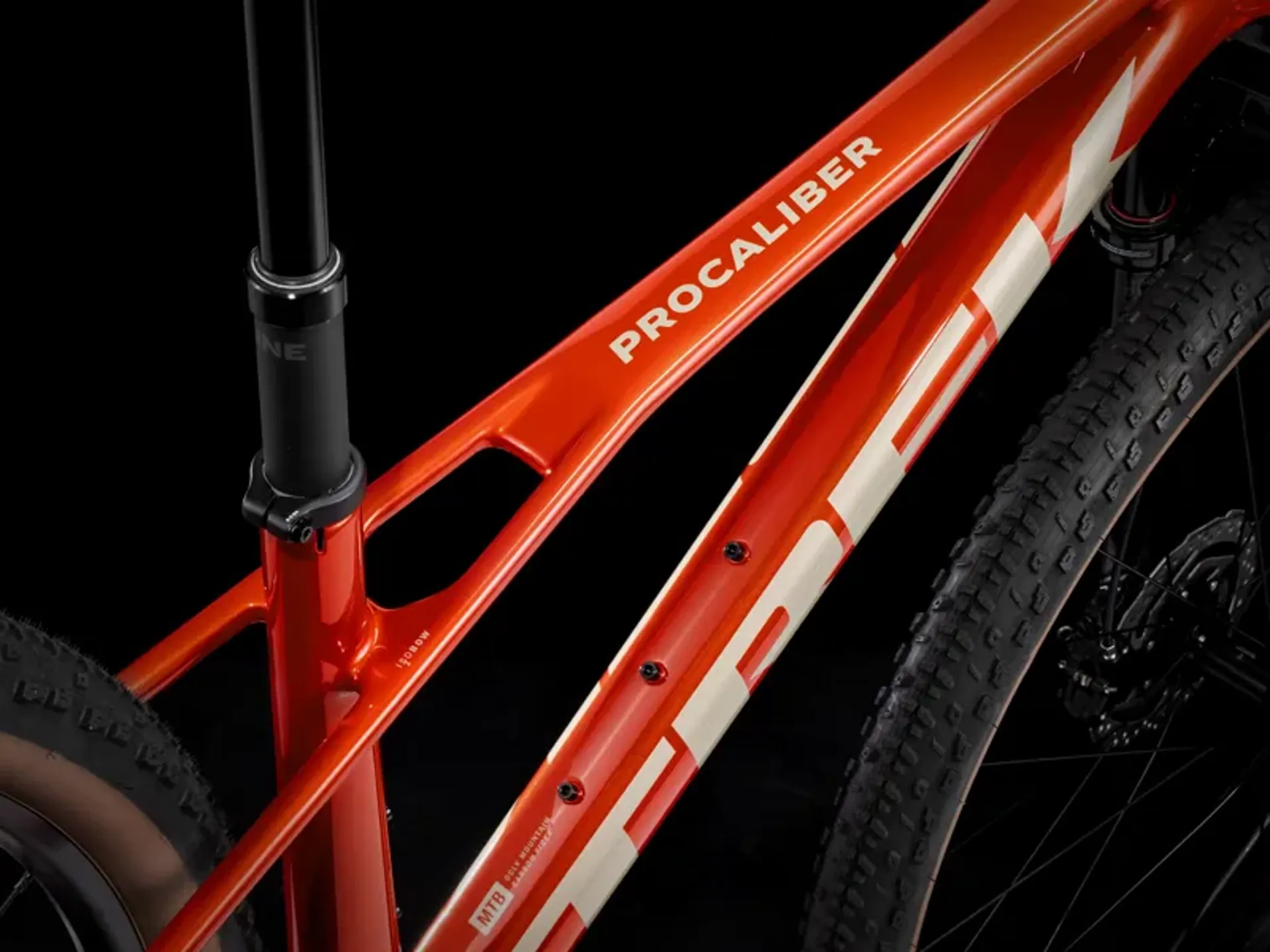

Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
Fork: RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Wheels & Tyres
Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta Valve
Front Hub: Shimano TC500 alloy, Centerlock, 110x15mm thru axle
Rear Hub: Shimano TC500 alloy, Centerlock, 148x12mm thru axle
Tyre: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 29x2.4”
Tyre: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 29x2.2”

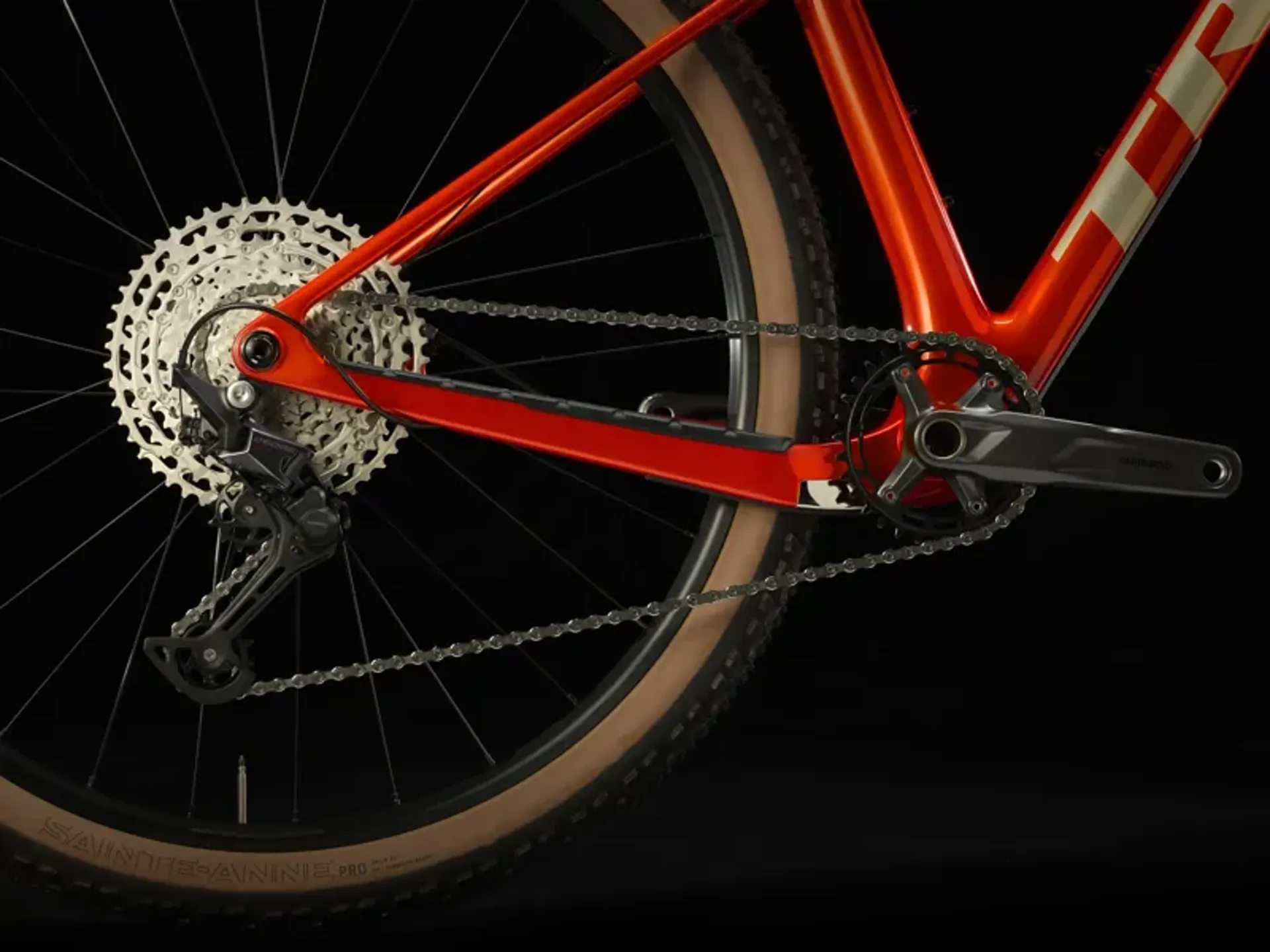

Gears & Drivetrain
Shifters: Shimano Deore M6100, 12-speed
Rear Derailleur: Shimano Deore M6100, long cage
Bottom Bracket: Shimano MT500, 92 mm, PressFit
Crankset: Shimano MT512, 32T, 55 mm chain line
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Brakes
Brakes: Shimano BR-MT200 Hydraulic Disc Brake
Rotor Size: 160/180mm
Components

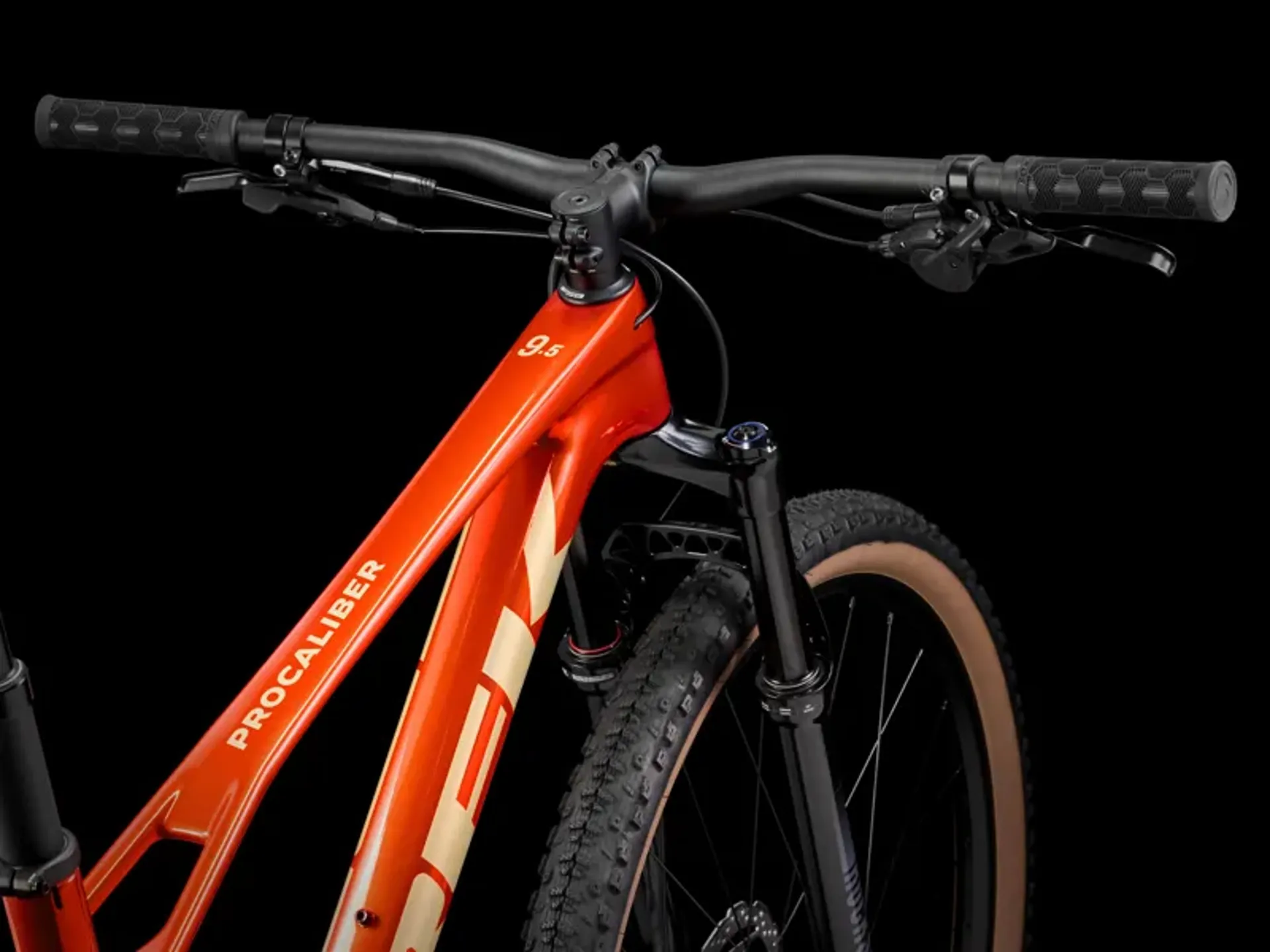

Handlebar: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Stem: Bontrager Elite, 31.8mm, Blendr-compatible, 7-degree
Grips: Bontrager XR Trail Comp, Nylon Lock-On
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Saddle: Verse Short, chromoly rails, 145 mm width
Seat Post: Bontrager Line Dropper, Travel: 100mm (S), 150mm (M,ML,L), 170mm (XL), MaxFlow, internal routing, 31.6 mm
Weight
Weight: M – 12.13kg / 26.75lbs
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
