Frame & Fork

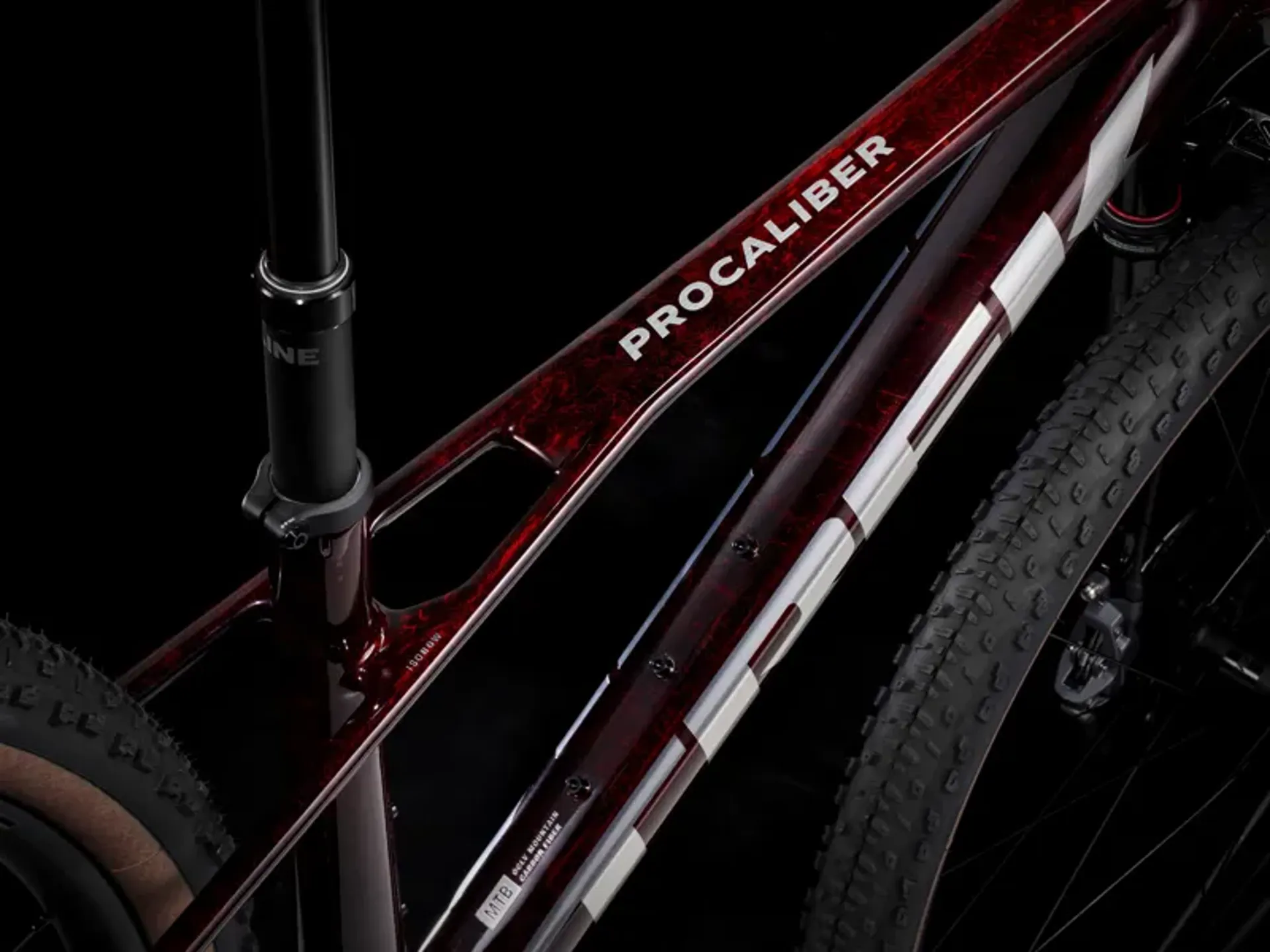

Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
Fork: RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost120, 15 mm Maxle Stealth, 120 mm travel
Wheels & Tyres
Front Wheel: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Rear Wheel: Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
Tyres: Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220tpi, 29x2.4”
Sealant: Bontrager TLR sealant, 180 ml/6 oz
Gears & Drivetrain
Shifters: SRAM AXS POD

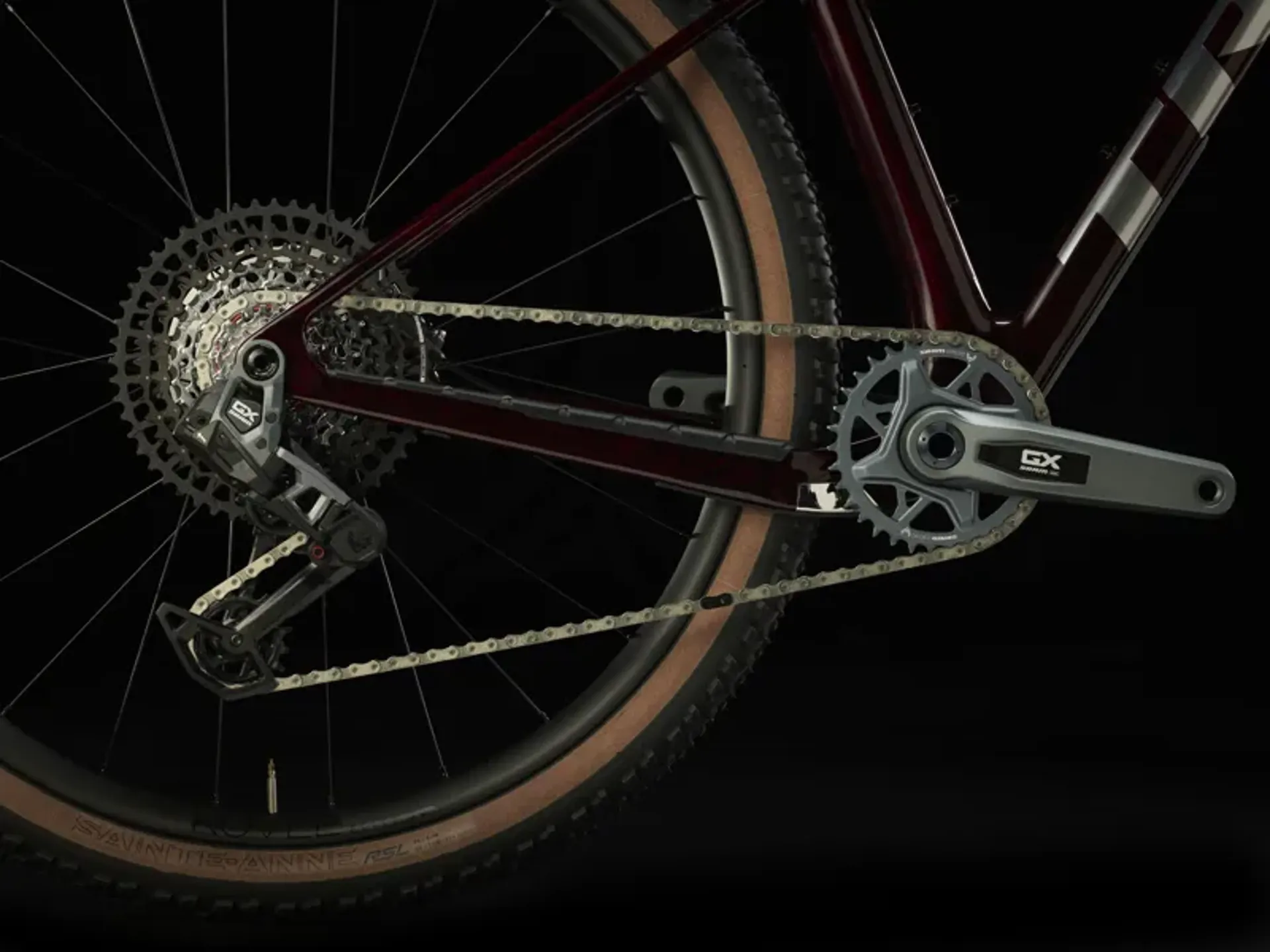

Rear Derailleur: SRAM GX Eagle AXS, T-Type
Bottom Bracket: SRAM DUB, 92 mm, PressFit
Crankset: SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line
Cassette: SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
Chain: SRAM GX Eagle, T-Type, 12-speed
Brakes
Brakes: SRAM Level Bronze 4-piston hydraulic disc
Brake Levers: SRAM
Rotor Size: 160/180mm
Components

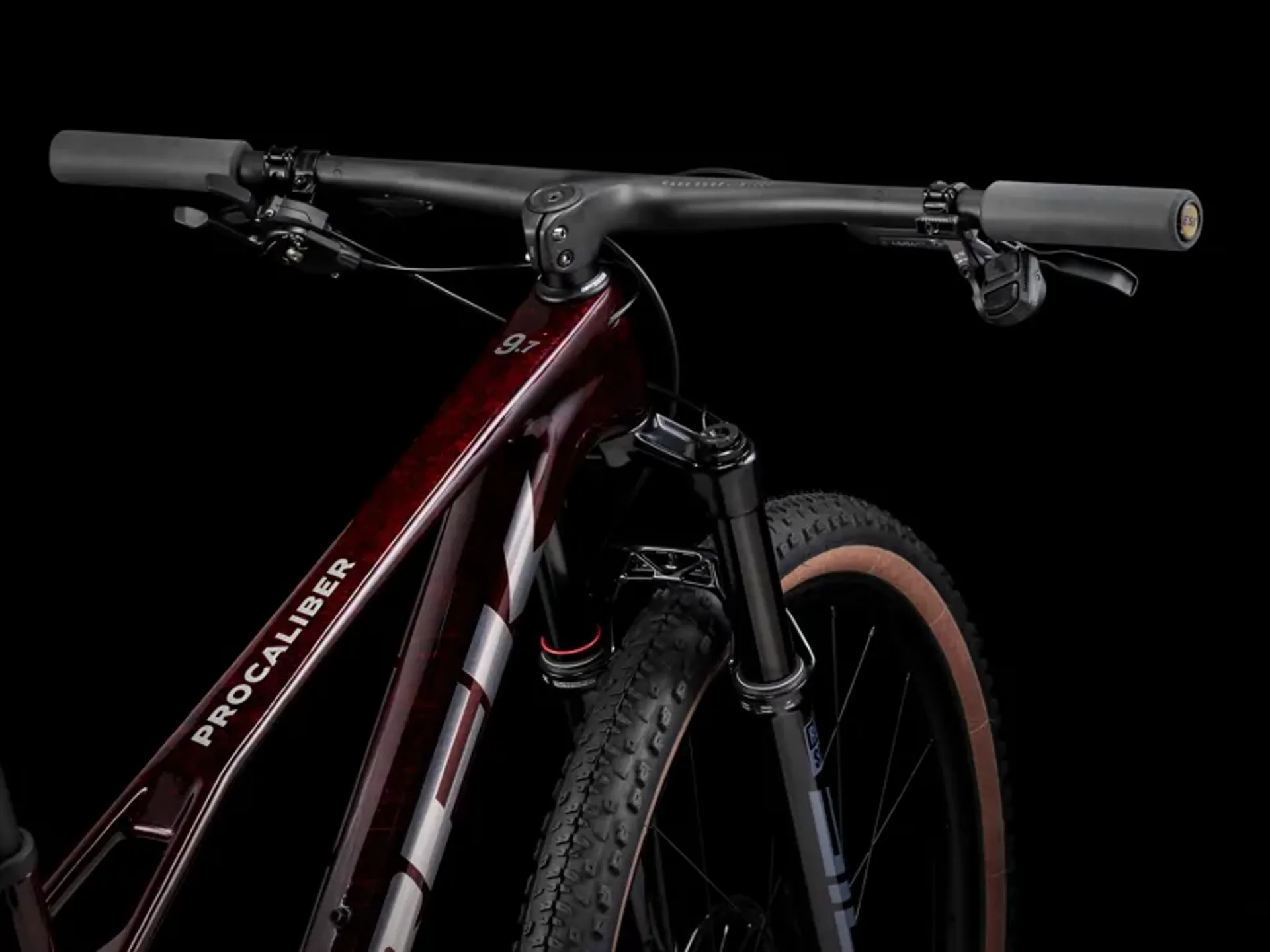

Handlebar/Stem: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm ride, 750mm width
Grips: ESI Chunky
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
Seat Post: Bontrager Line Dropper, Travel: 100mm (S), 150mm (M,ML,L), 170mm (XL), MaxFlow, internal routing, 31.6 mm
Weight
Weight: M – 10.58kg / 23.33lbs
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
