SPECIFICATIONS
Compatibility
Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
Compatible Adapters and freewheel bodies
ID360 Shimano / Sram freewheel body (V3430101 - Delivered on the wheel)
ID360 XD freewheel body (V2580101)
ID360 Campagnolo freewheel body (V3440101)
ID360 Shimano / Sram Light freewheel body (V3850101)
12x135 rear axle adapters (V2510901)
12 to 9mm rear adapter for quick release (V2510801 - Delivered with the wheel)
12x142 rear axle adapters (V2510701 - Delivered with the wheel)
12mm front hub cap (V2680501 - Delivered with the wheel)
12 to 9mm front adapter for quick release (V2680301 - Delivered with the wheel)
Weight
Pair without tyre: 1690 grams
Front without tyre: 775 grams
Rear without tyre: 915 grams

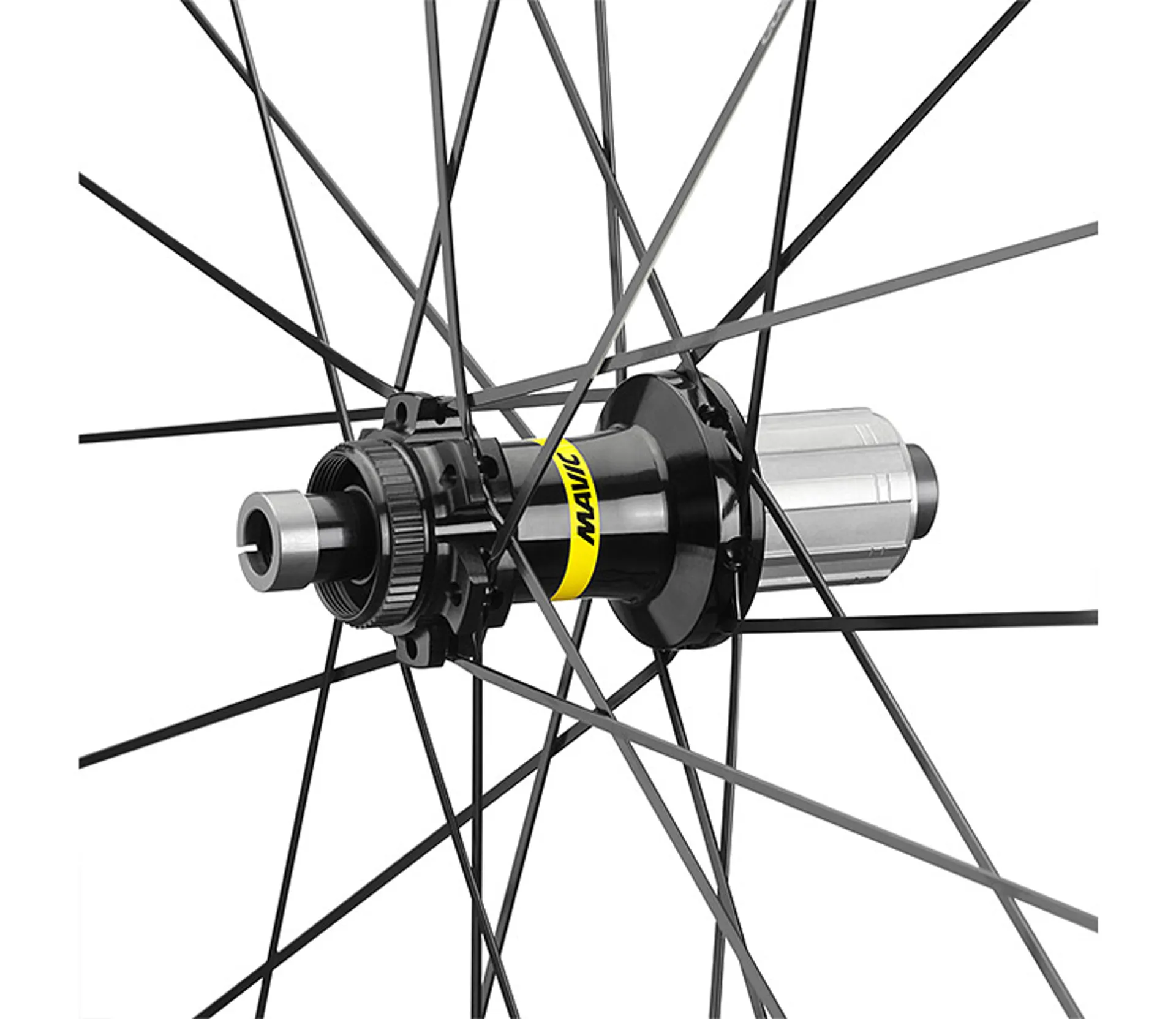

Hubs
Front: Quick release and 12x100 through axle compatible
Auto adjust sealed cartridge bearings (QRM Auto), front and rear
Freewheel: Instant Drive 360 steel
Rear: Quick Release, 12x142 and 12x135 compatible
Front and rear bodies: aluminum
Axle material: aluminum
Intended Use
Max. Pressure: 23mm 8.7 bars - 125 psi, 25/28mm 7.7 bars - 110 psi
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Recommended tyre sizes: 25 to 32 mm
Rims
Height: 22 mm
ETRTO size: 622x19TC Road
Use with Mavic Tubeless Tape
Drilling: traditional
Internal width: 19 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Weight reduction: ISM
Joint: SUP
Material: Maxtal
Spokes
Nipples: steel, ABS
Shape: straight pull, flat, double butted
Material: steel
Lacing: front and rear crossed 2
Count: 24 front and rear
Tyre
Dimensions: 28-622 (700x28c)
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Breaker: Polyamide, from bead to bead
Casing: 127 TPI
Versions
Disc standard: Center Lock
Color: Black only

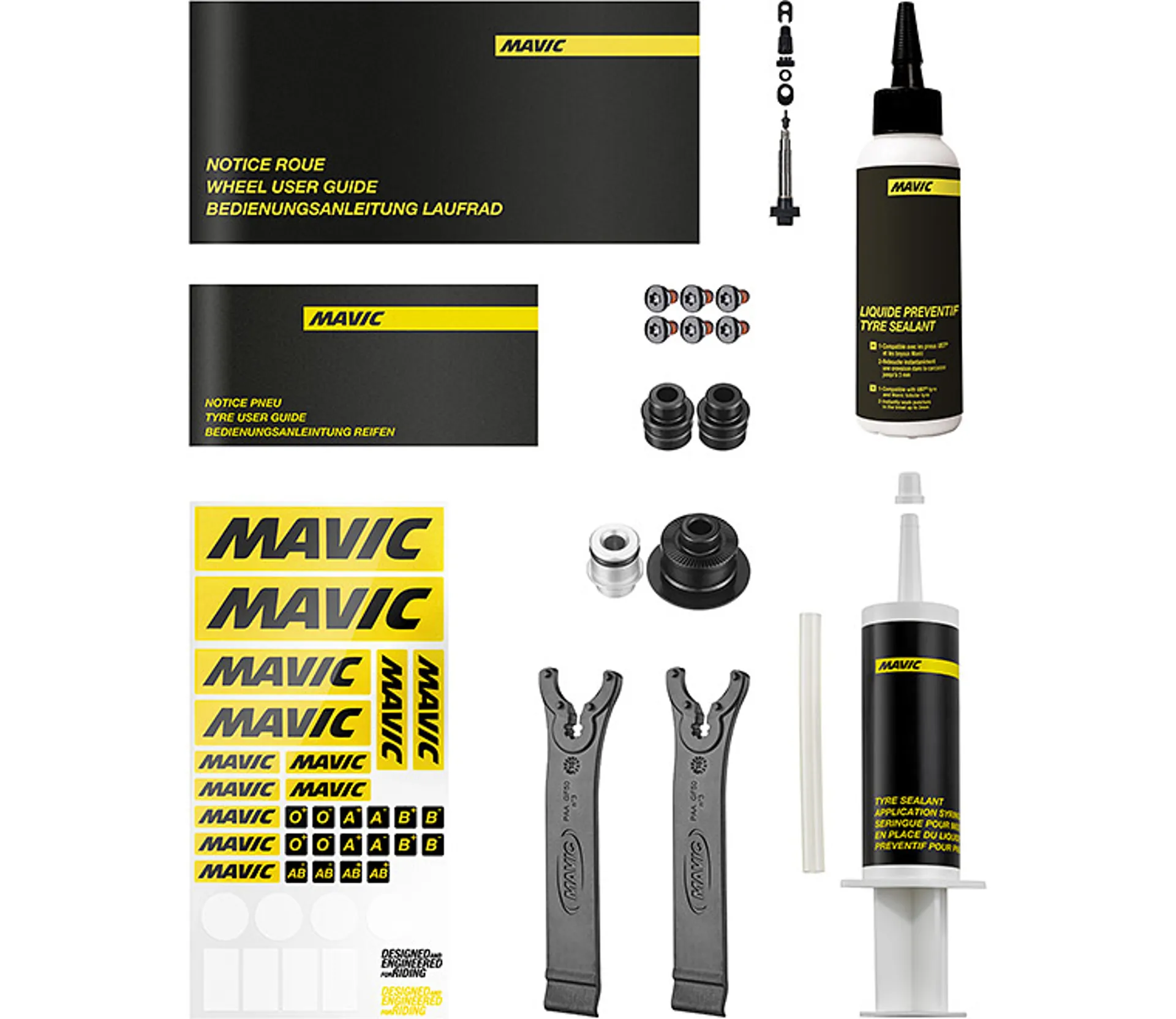

Delivered With
Tyre sealant syringe
Rear QR adapters for Instant Drive 360
