Frame & Fork

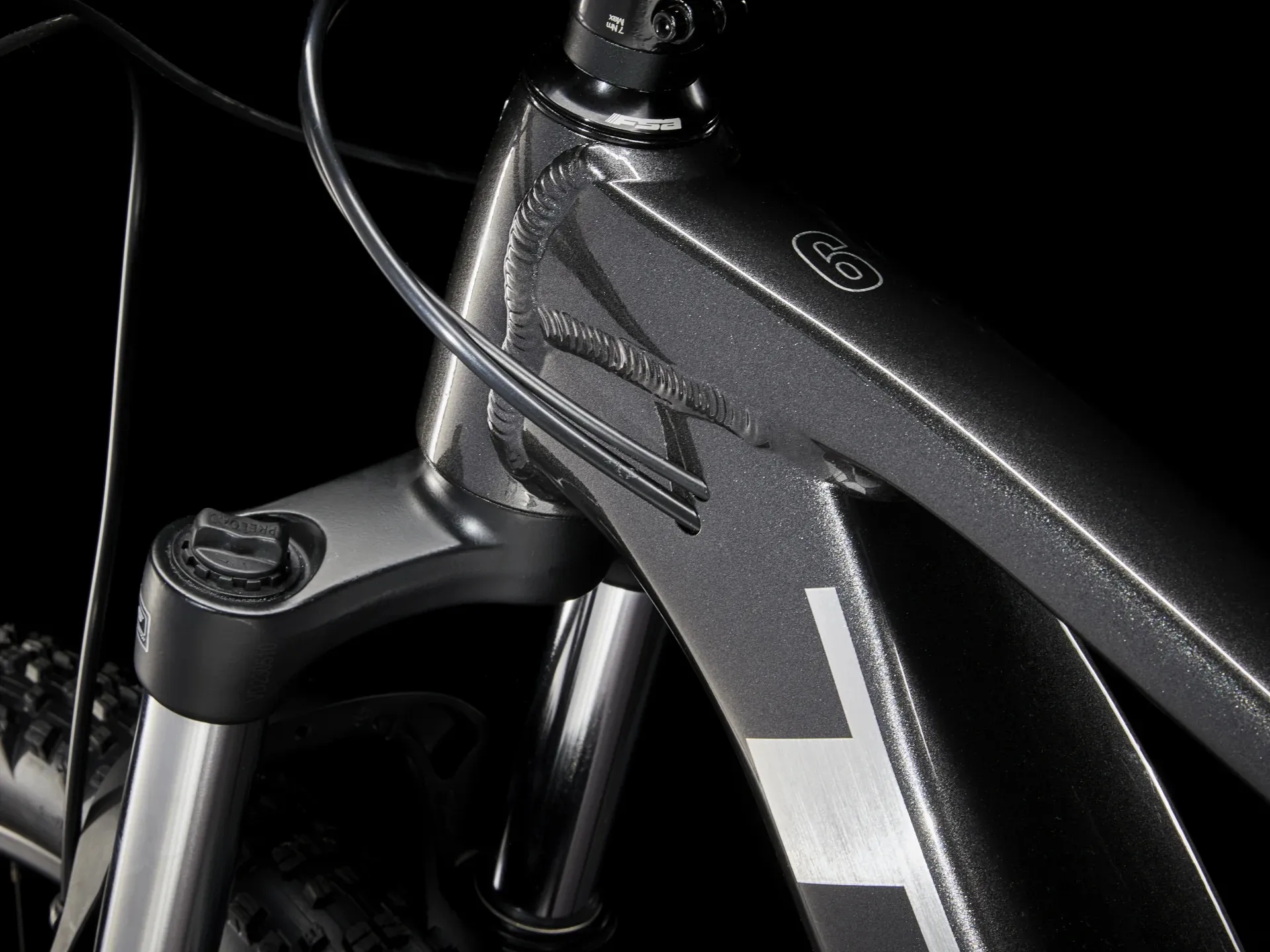

Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle

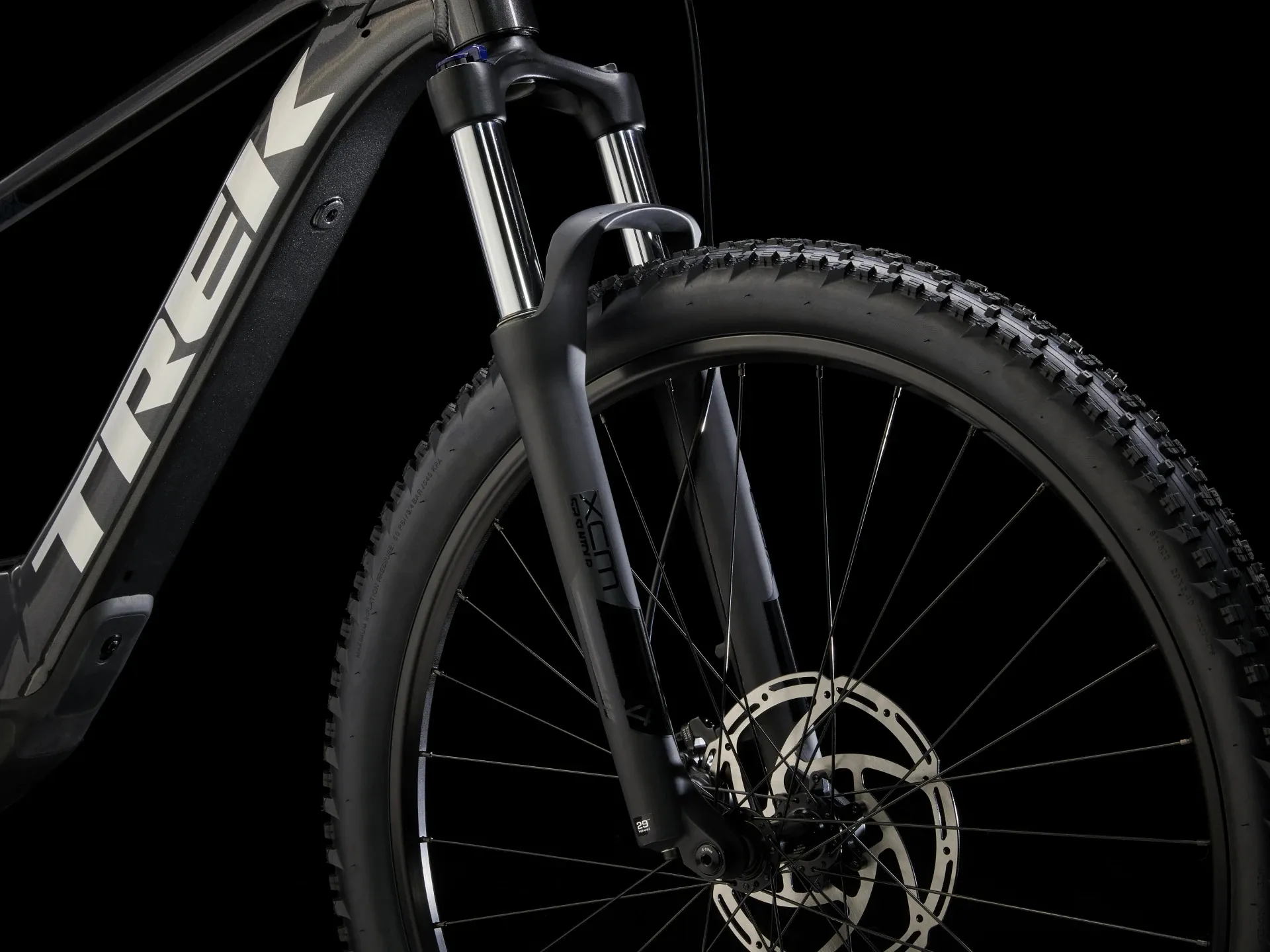

Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Wheels & Tyres
Front Hub: Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15 mm thru axle
Rear Hub: Formula CL-3248, alloy, CentreLock, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Rear Skewer: Bontrager Switch thru-axle, removable lever
Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tyres: Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40 (XS,S) 29x2.40" (M-XL)
Gears & Drivetrain
Shifter: Shimano U4000, 9-speed

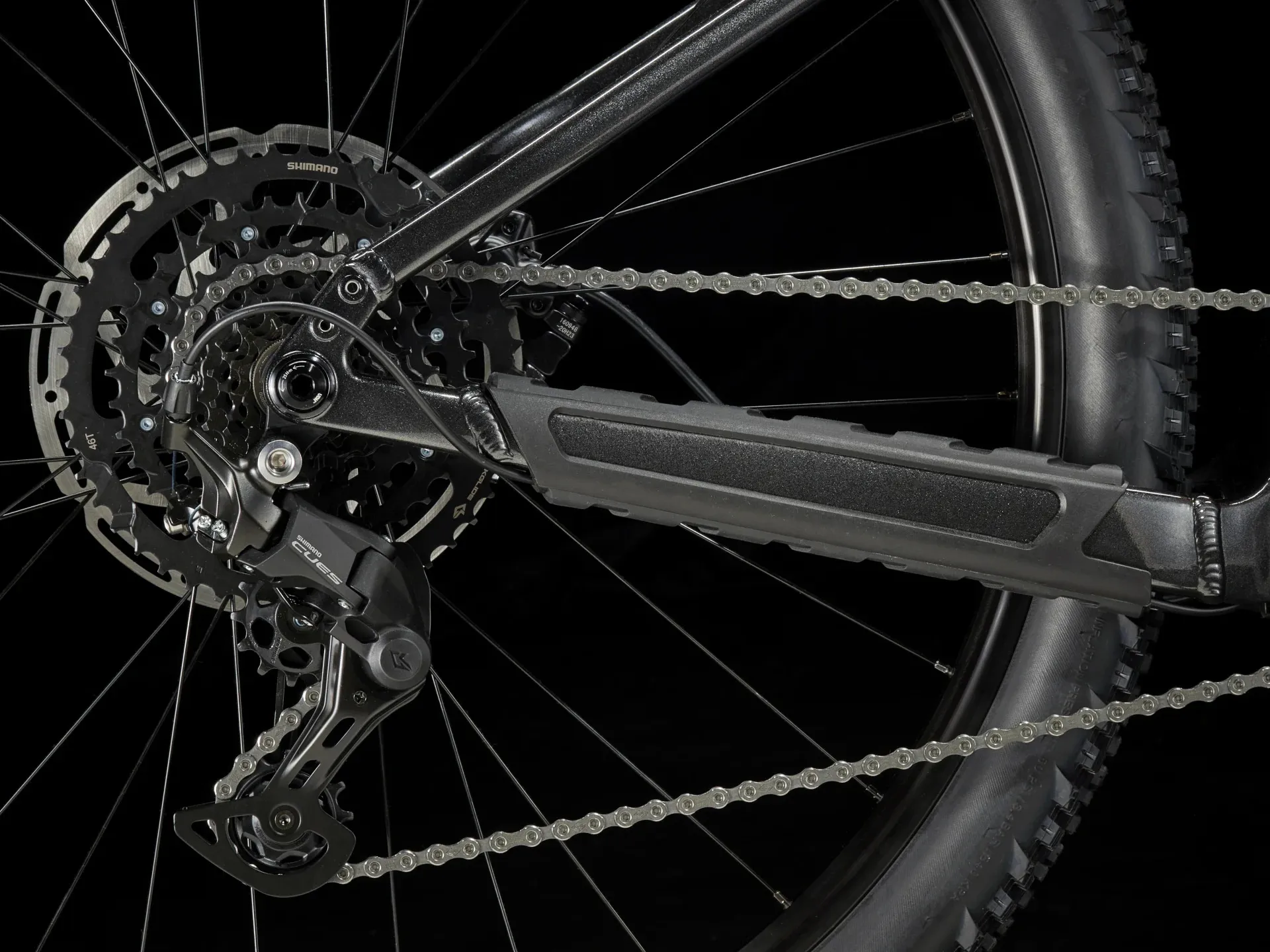

Rear Derailleur: Shimano CUES U4000
Crank: FSA CK-220
Chainring: FSA, 32T, steel
Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain: Shimano LG500, 9/10/11-speed
Brakes
Brake Set: Tektro HD-M275 hydraulic disc
Brake Rotors: Tektro, CentreLock, 203 mm
Components

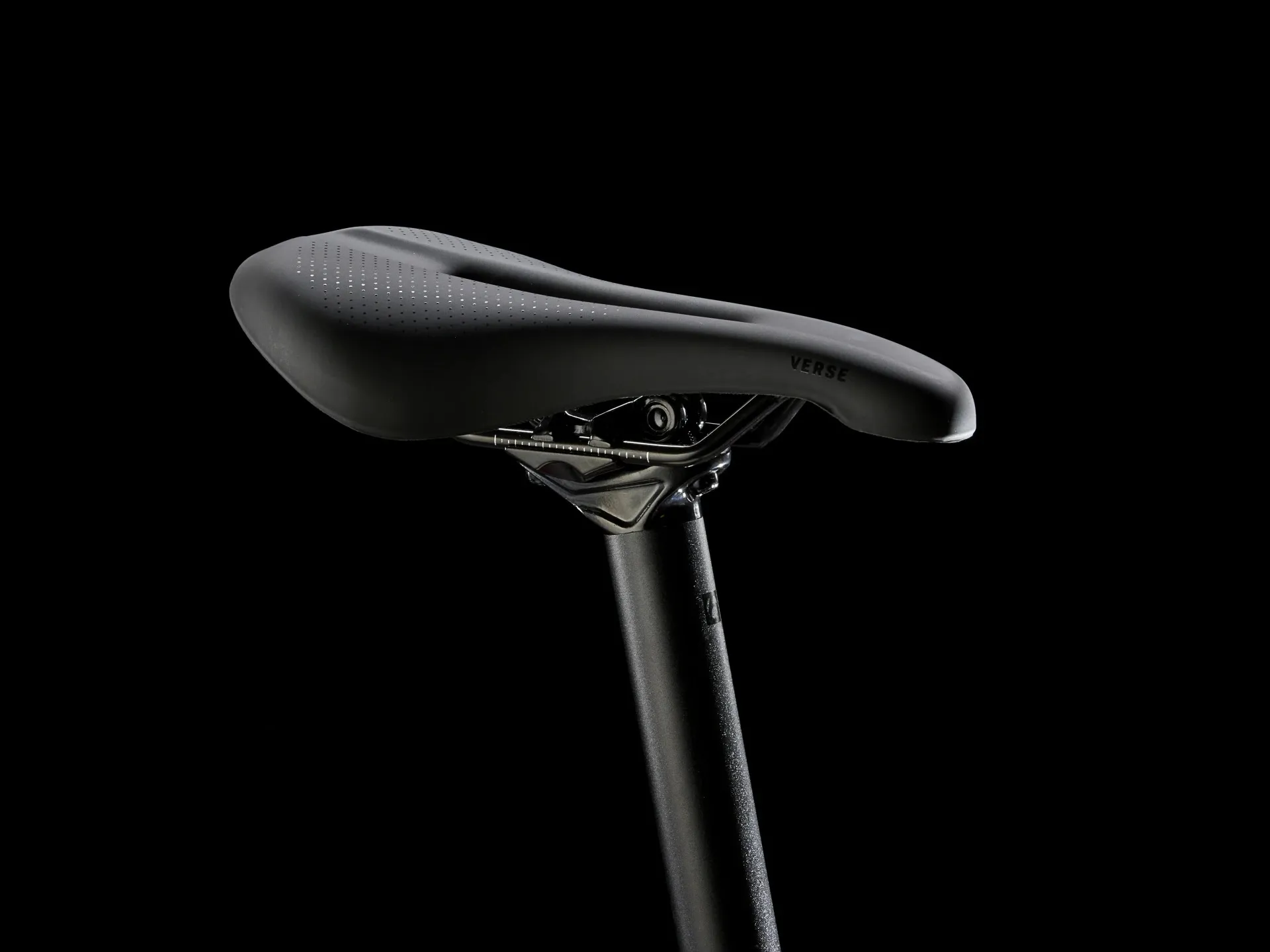

Saddle: Bontrager Arvada, steel rails, 138 mm width
Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset
Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise
Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
Grips: Bontrager XR Endurance Comp, lock-on
Pedals: VP-536 nylon platform
Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
Weight
Weight: M - 22.45 kg / 49.5 lbs (with tubes)
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Battery & Motor

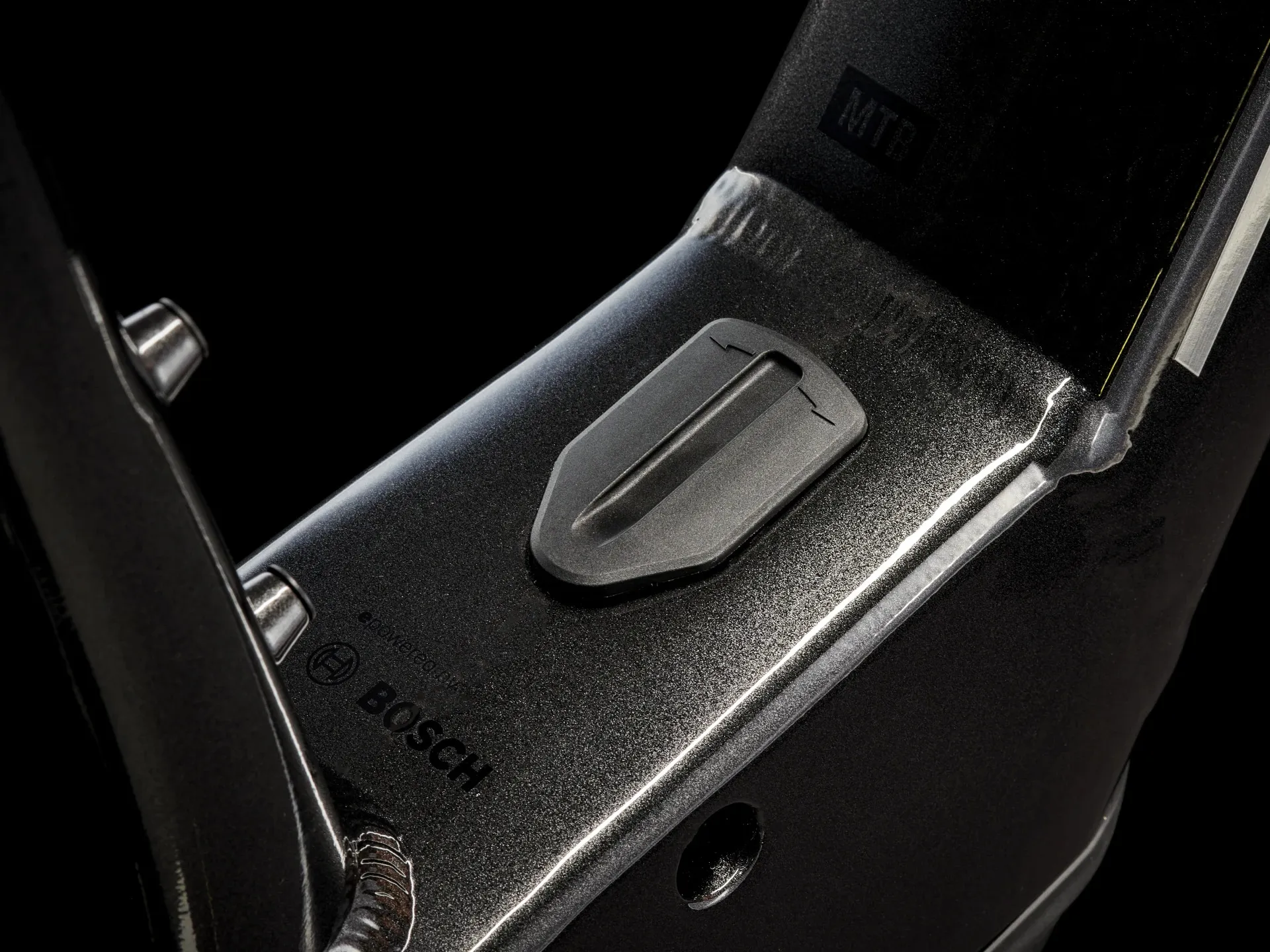

Battery: Bosch CompactTube 400 Wh
Charger: Bosch standard 2A, 230V, smart system

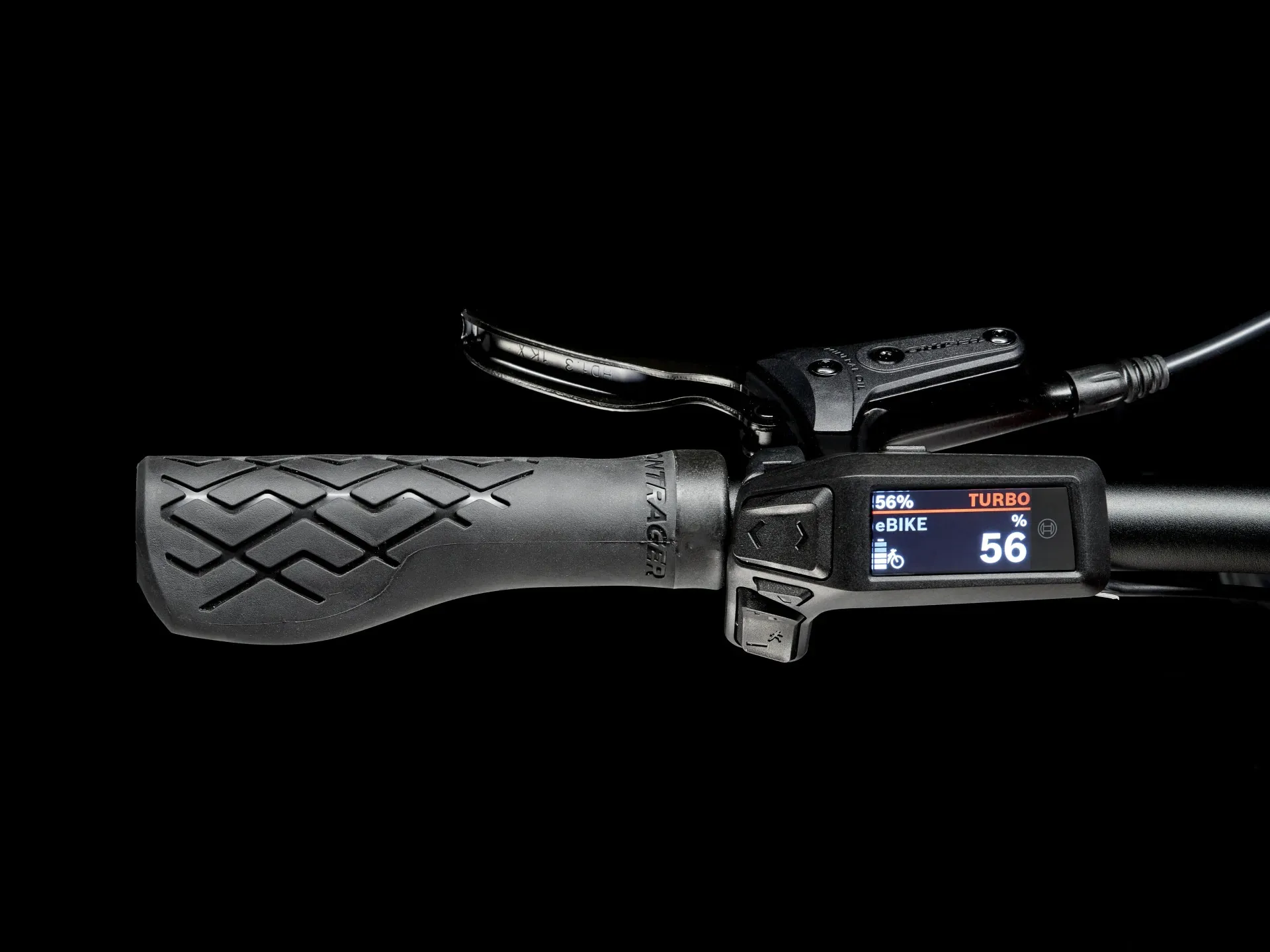

Computer: Bosch Purion 200

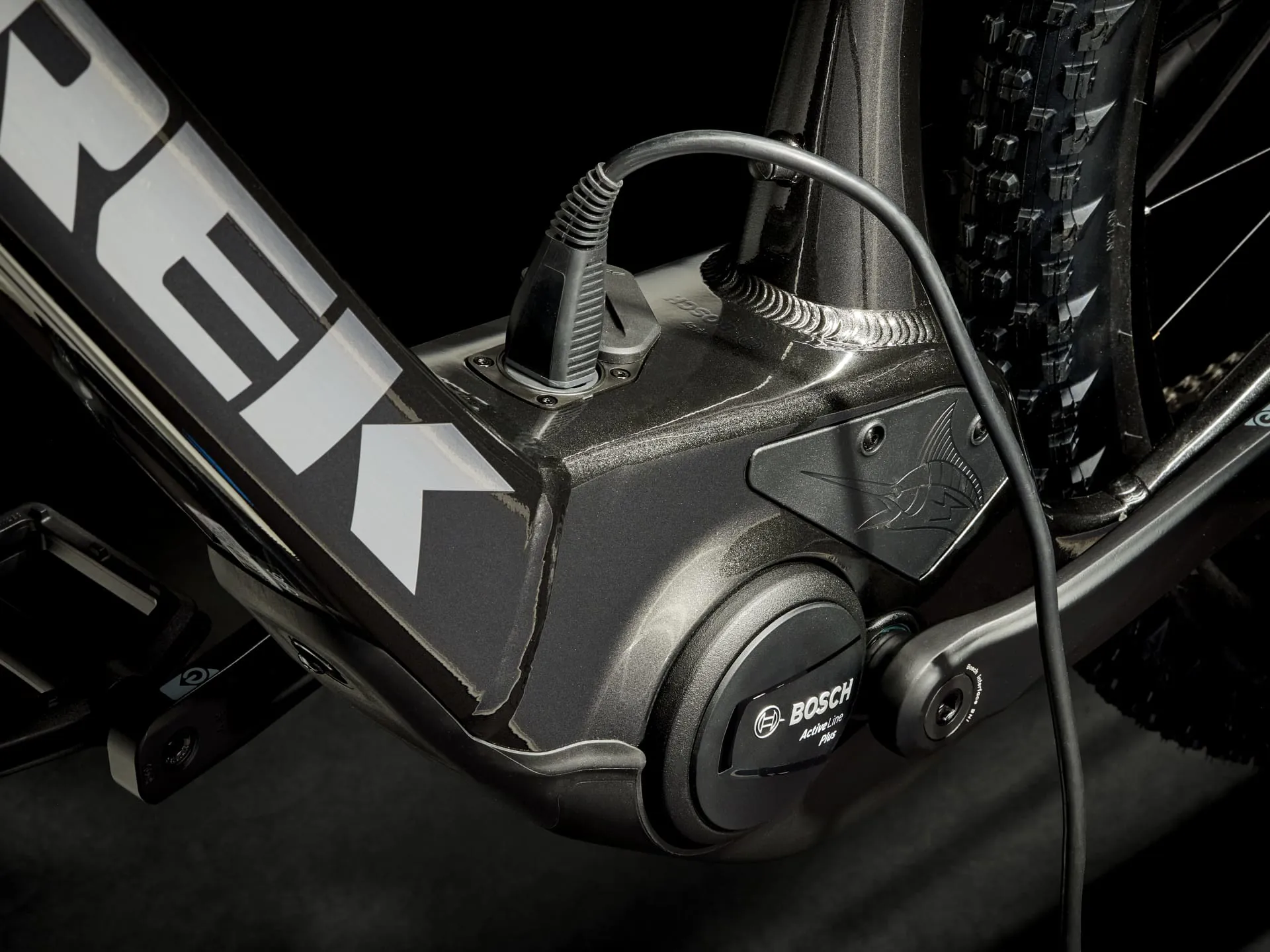

Motor: Bosch Active Line Plus, 50 Nm
