Frame & Fork

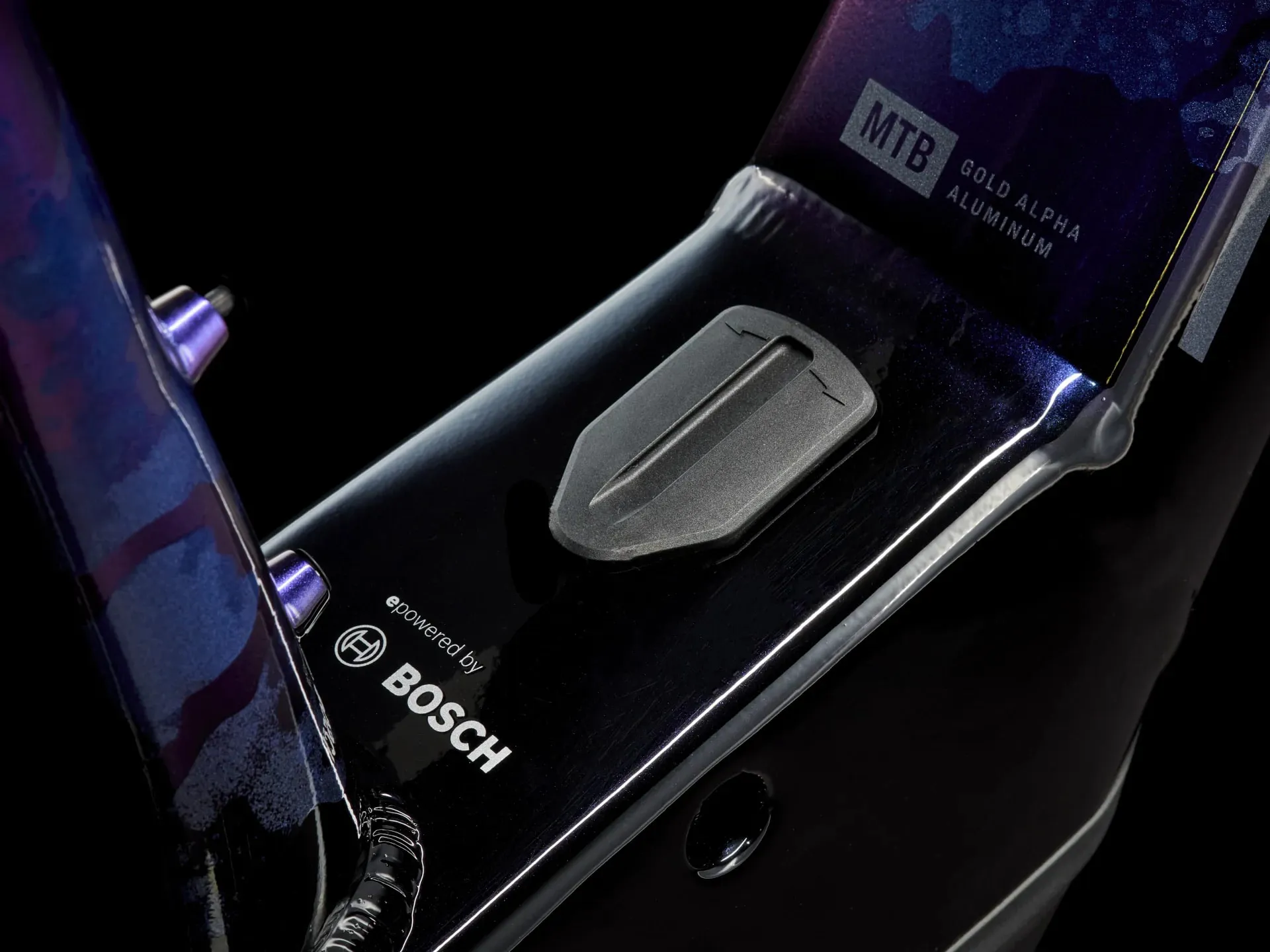

Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle

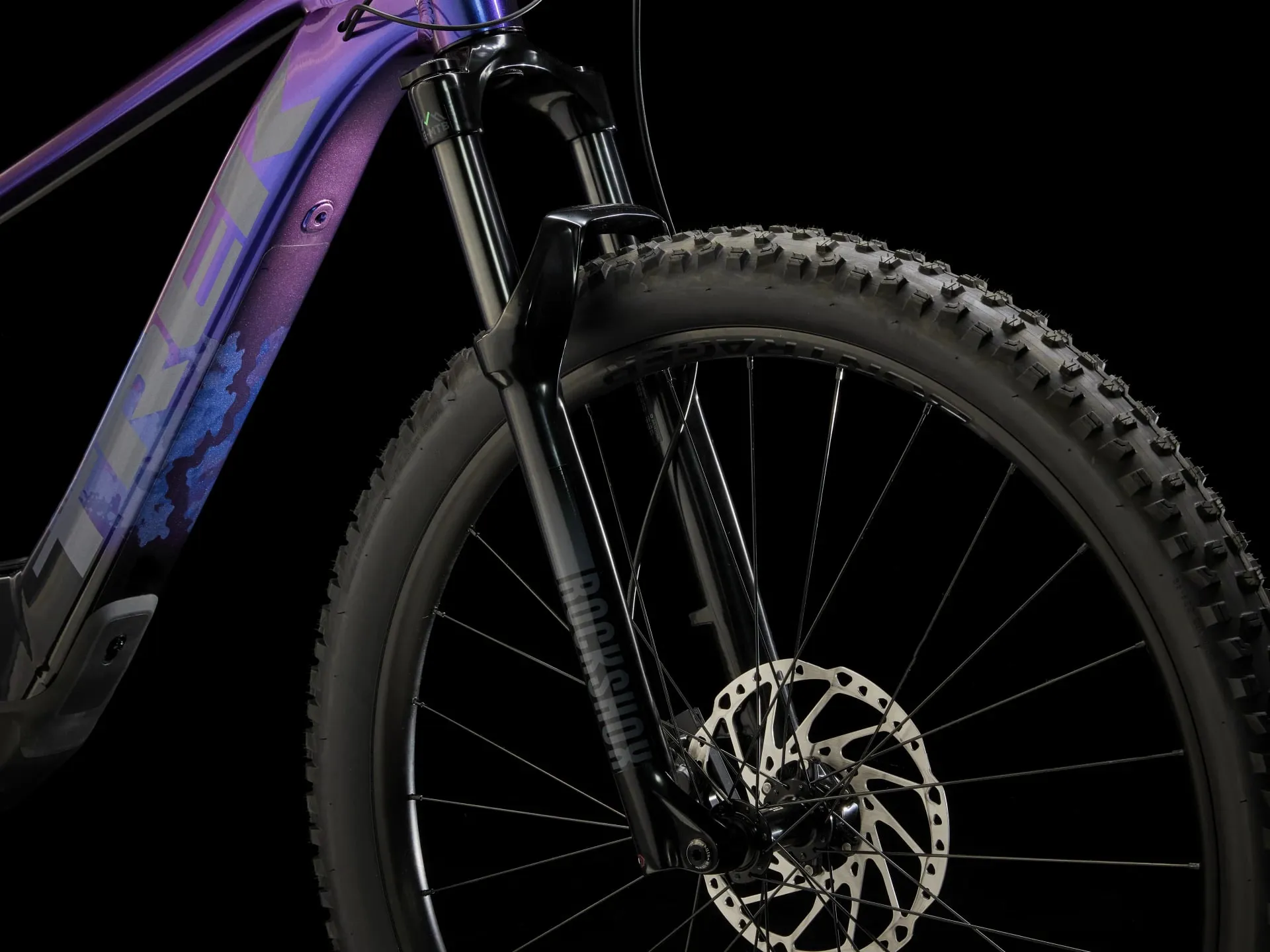

Fork: RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel
Wheels & Tyres
Front Hub: Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15 mm thru axle
Rear Hub: Formula CL-3248, alloy, CentreLock, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Rear Skewer: Bontrager Switch thru-axle, removable lever
Rims: Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tyres: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5/29x2.60”
Gears & Drivetrain
Shifter: Shimano Deore M6100, 12-speed

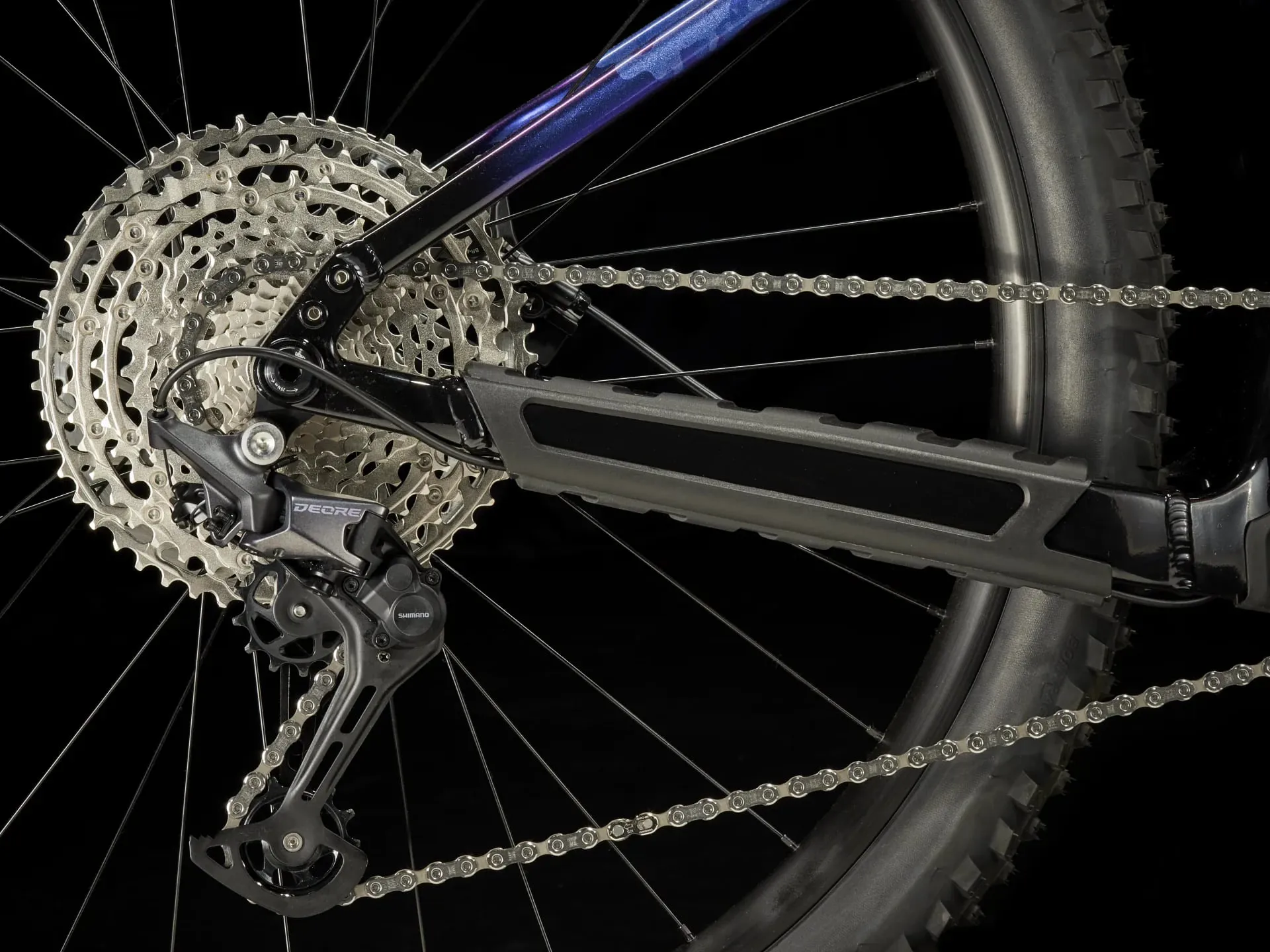

Rear Derailleur: Shimano Deore M6100, long cage
Crank: FSA CK-220, 165 mm length
Chainring: FSA, 32T, steel
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Brakes
Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake Rotor: Shimano RT64, CentreLock, 203 mm
Components
Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise
Stem: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

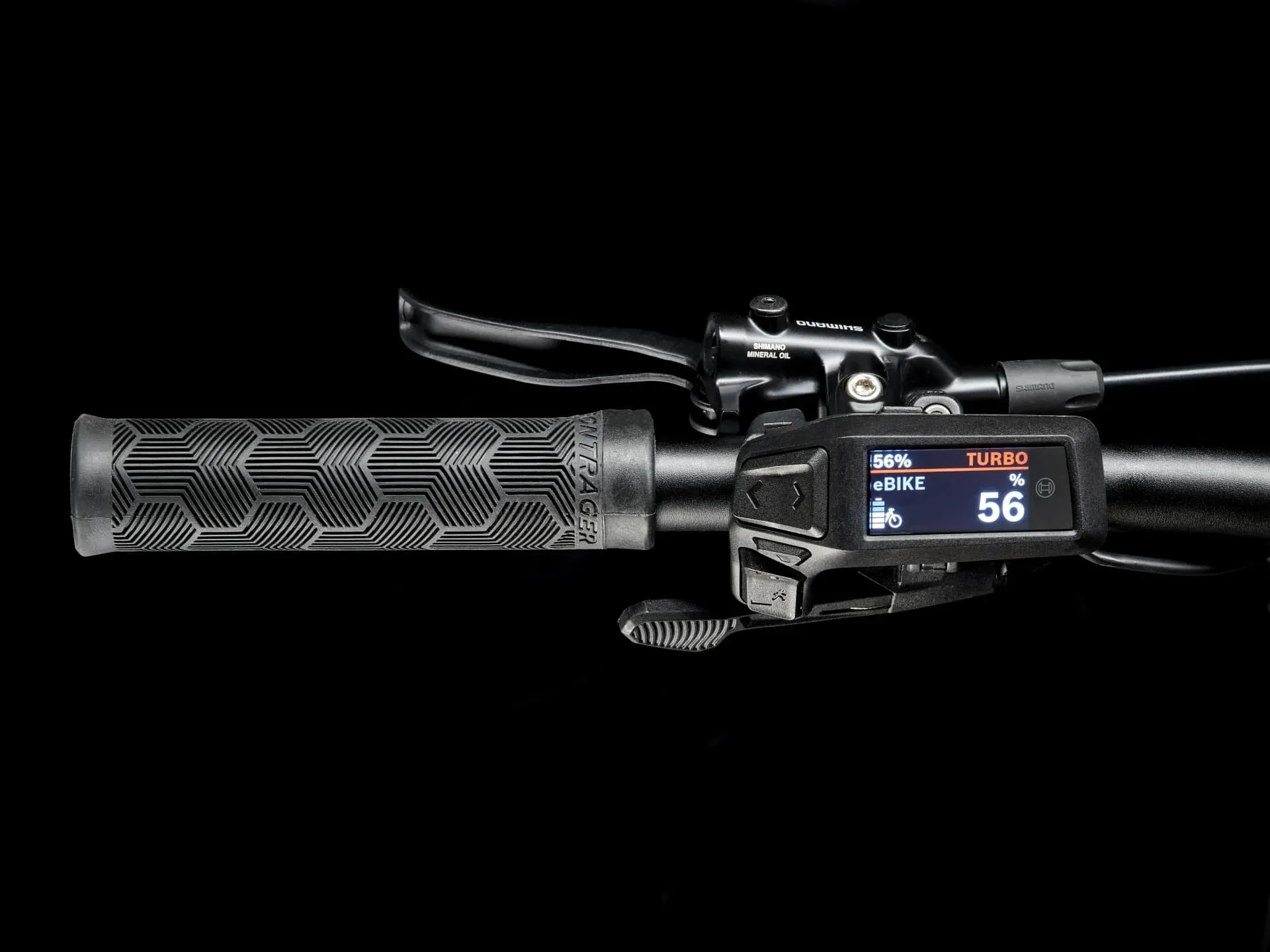

Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree

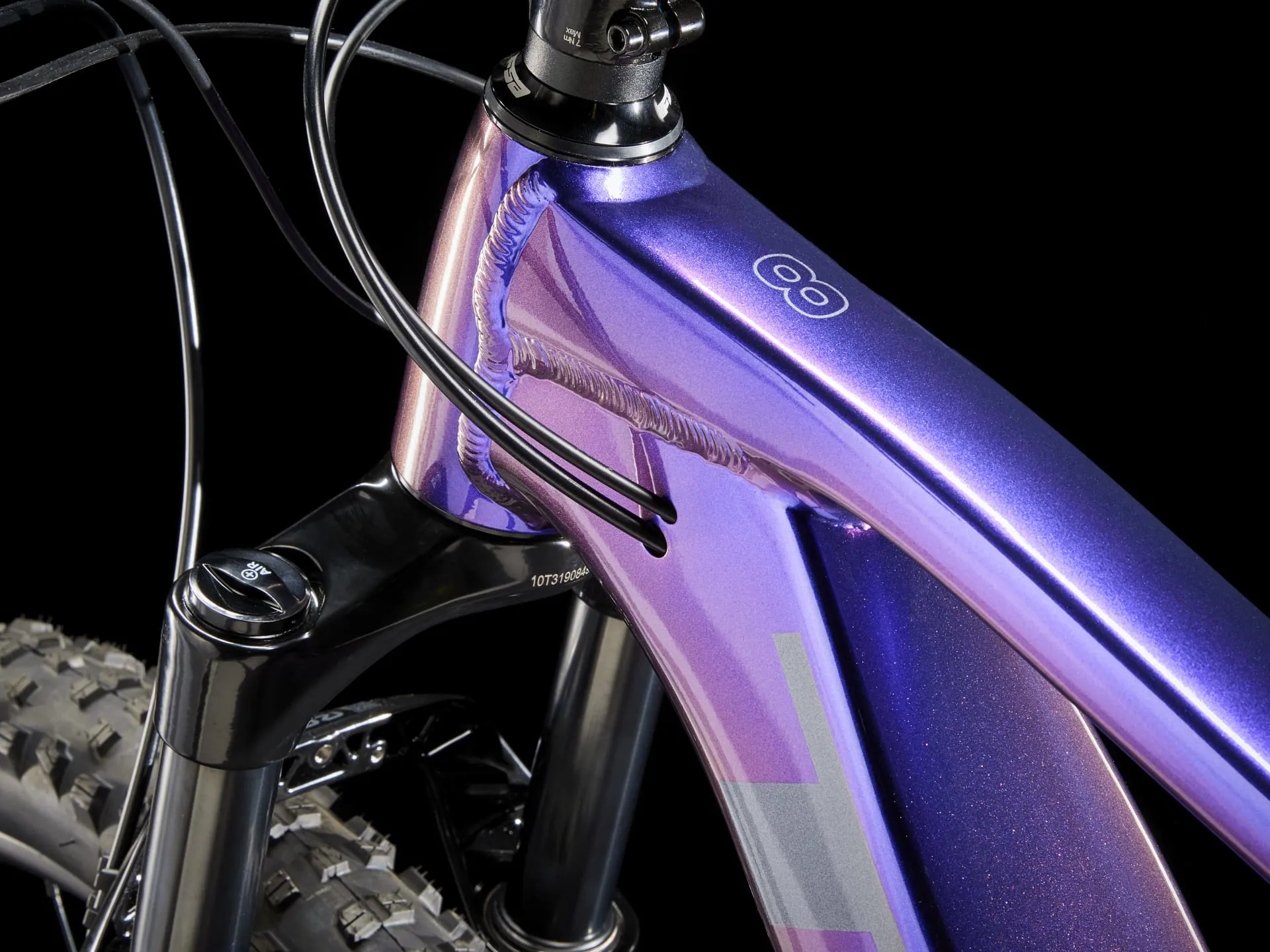

Headset: Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Pedals: VP-536 nylon platform
Weight:
Weight: M - 21.30 kg / 46.96 lbs (with TLR sealant, no tubes)
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
