Frame & Fork

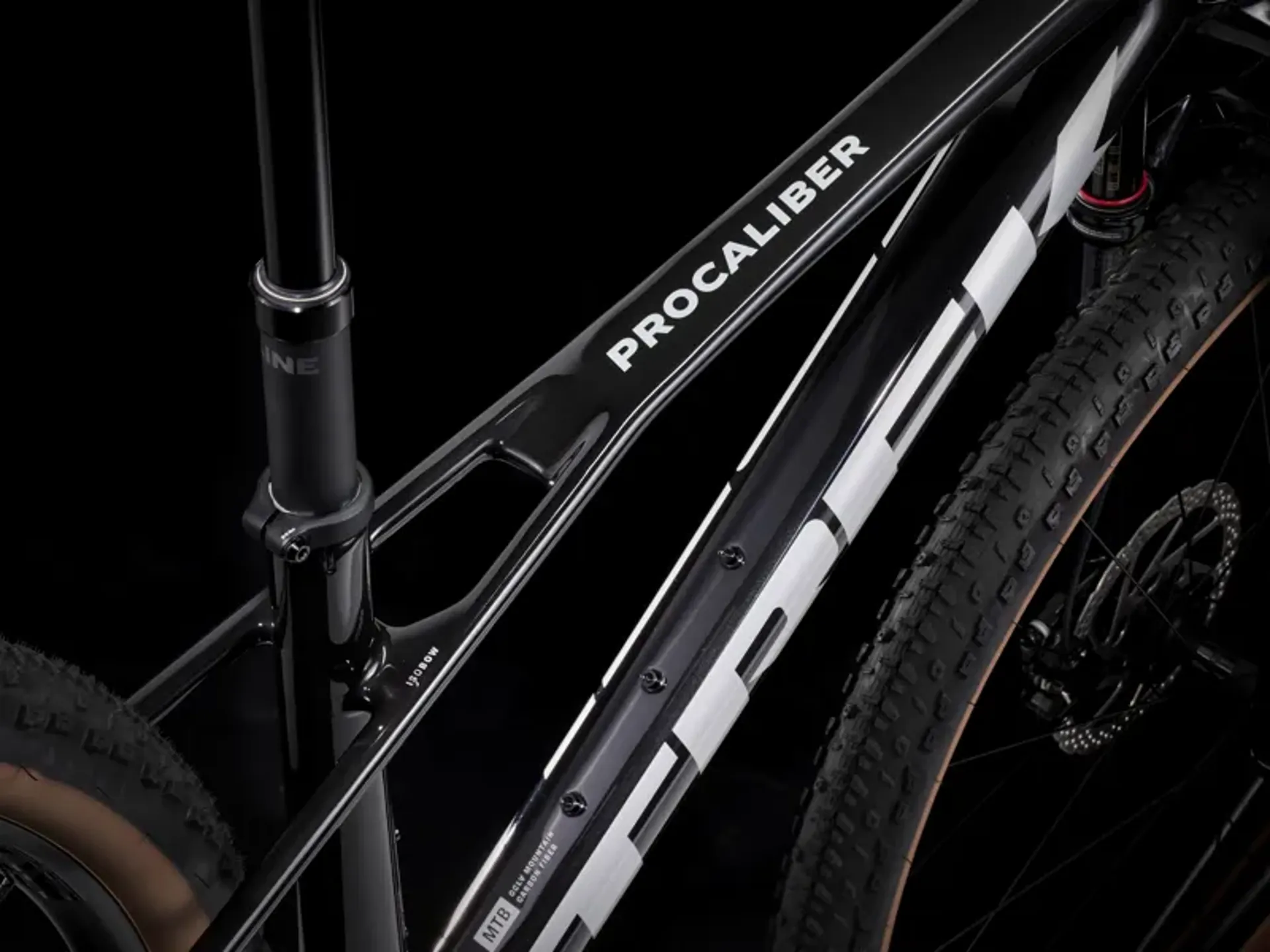

Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
Fork: RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 51 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Wheels & Tyres
Front Wheel: Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
Rear Wheel: Bontrager Kovee Comp 25, Tubeless-Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
Tyres: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 29x2.4”

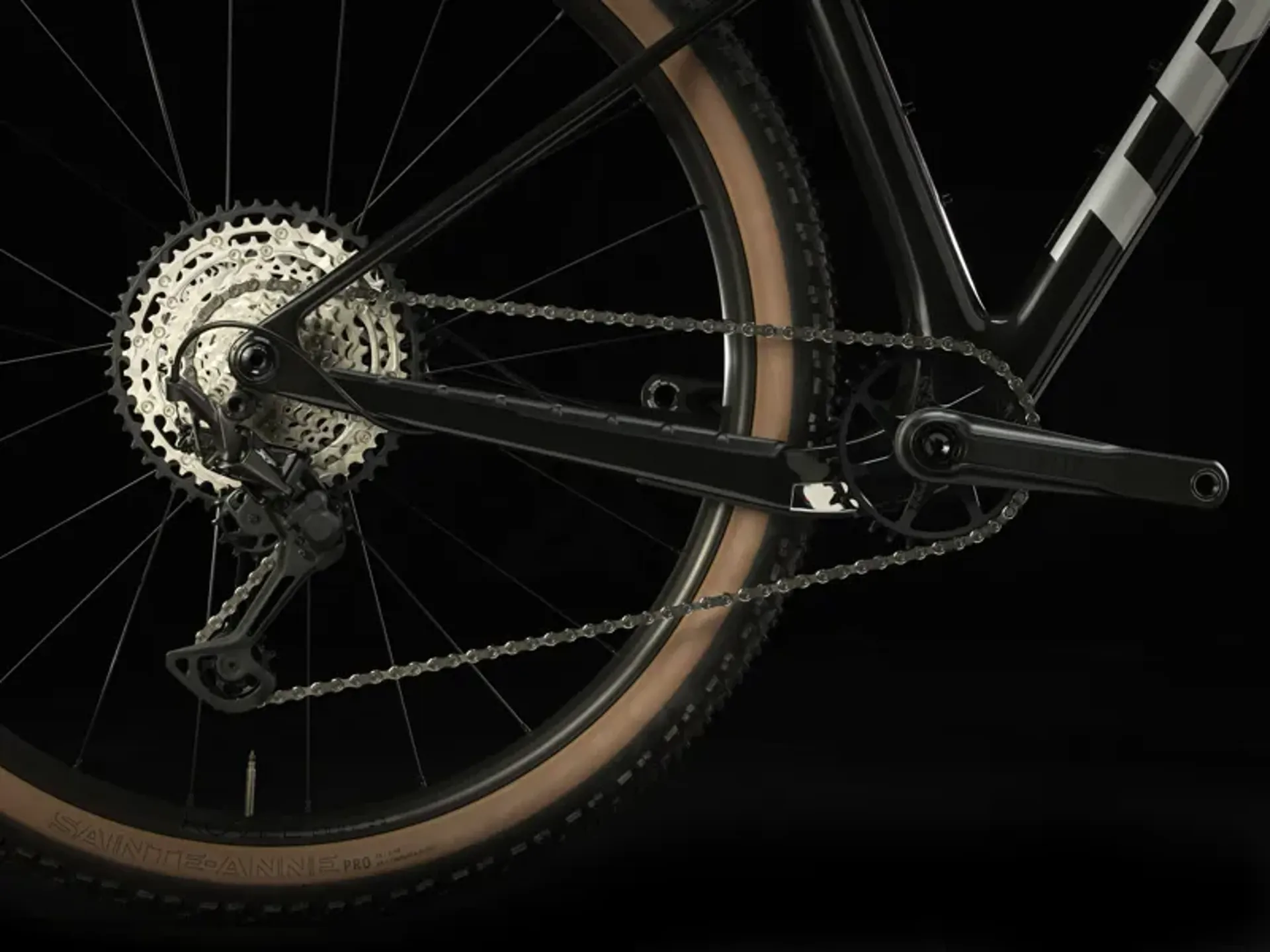

Gears & Drivetrain
Shifters: Shimano SLX M7100, 12-Speed
Rear Derailleur: Shimano XT M8100, long cage
Bottom Bracket: Shimano MT500, 92 mm, PressFit
Crankset: E*thirteen Helix core, 32T alloy ring, 55 mm chainline
Cassette: Shimano SLX M7100, 10-51T, 12-speed
Chain: Shimano Deore M6100, 12-speed
Brakes
Brakes: Shimano BR-MT500 Hydraulic Disc Brake
Brake Levers: Shimano MT501
Rotor Size: 160/180mm
Components

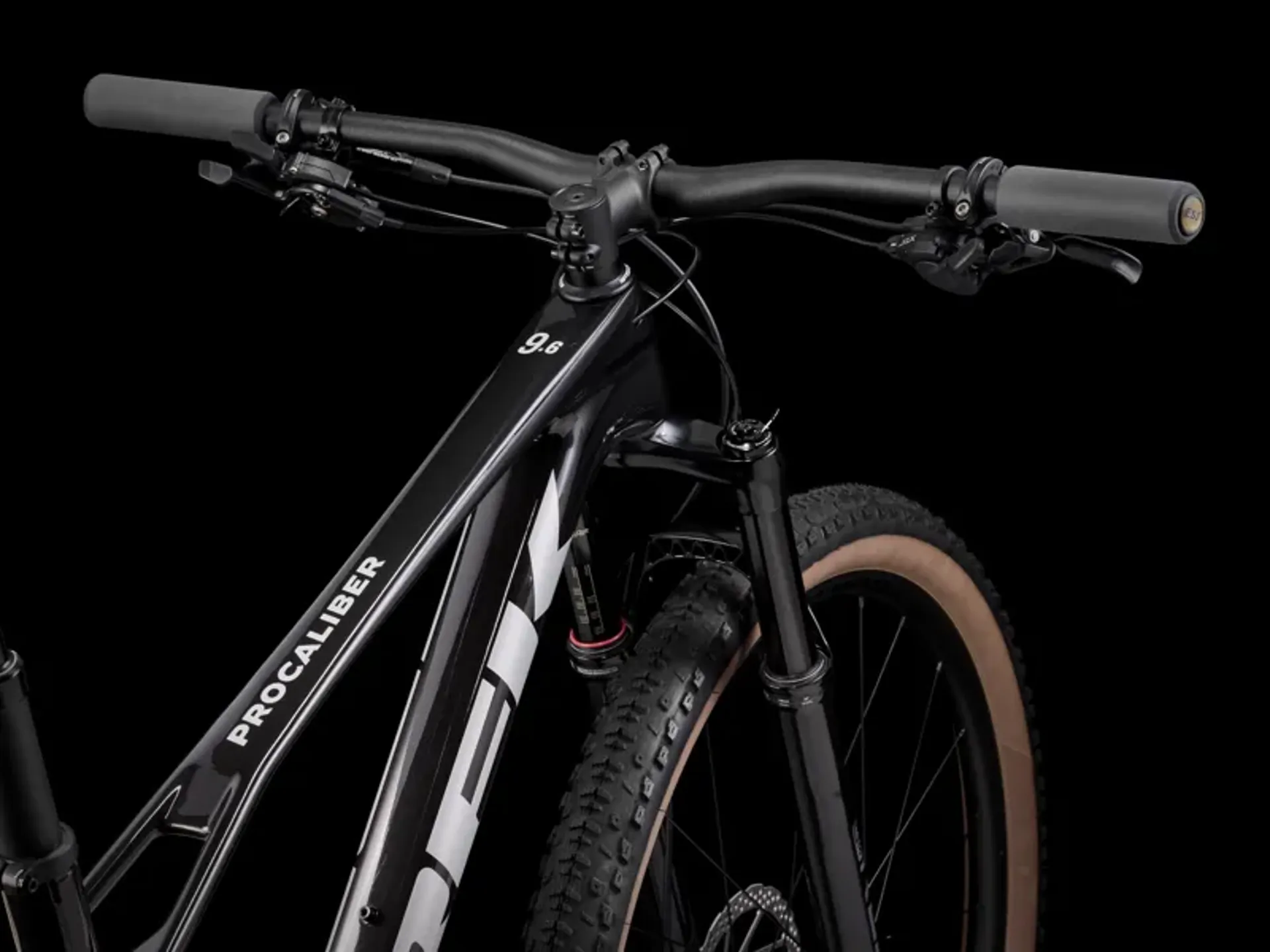

Handlebar: Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Stem: Bontrager Elite, 31.8mm, Blendr-compatible, 7-degree
Grips: ESI Chunky
Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
Saddle: Verse Short, steel rails, 145 mm width
Seat Post: Bontrager Line Dropper, Travel: 100mm (S), 150mm (M,ML,L), 170mm (XL), MaxFlow, internal routing, 31.6 mm
Weight
Weight: M – 11.08kg / 24.43lbs
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
