Frame & Fork

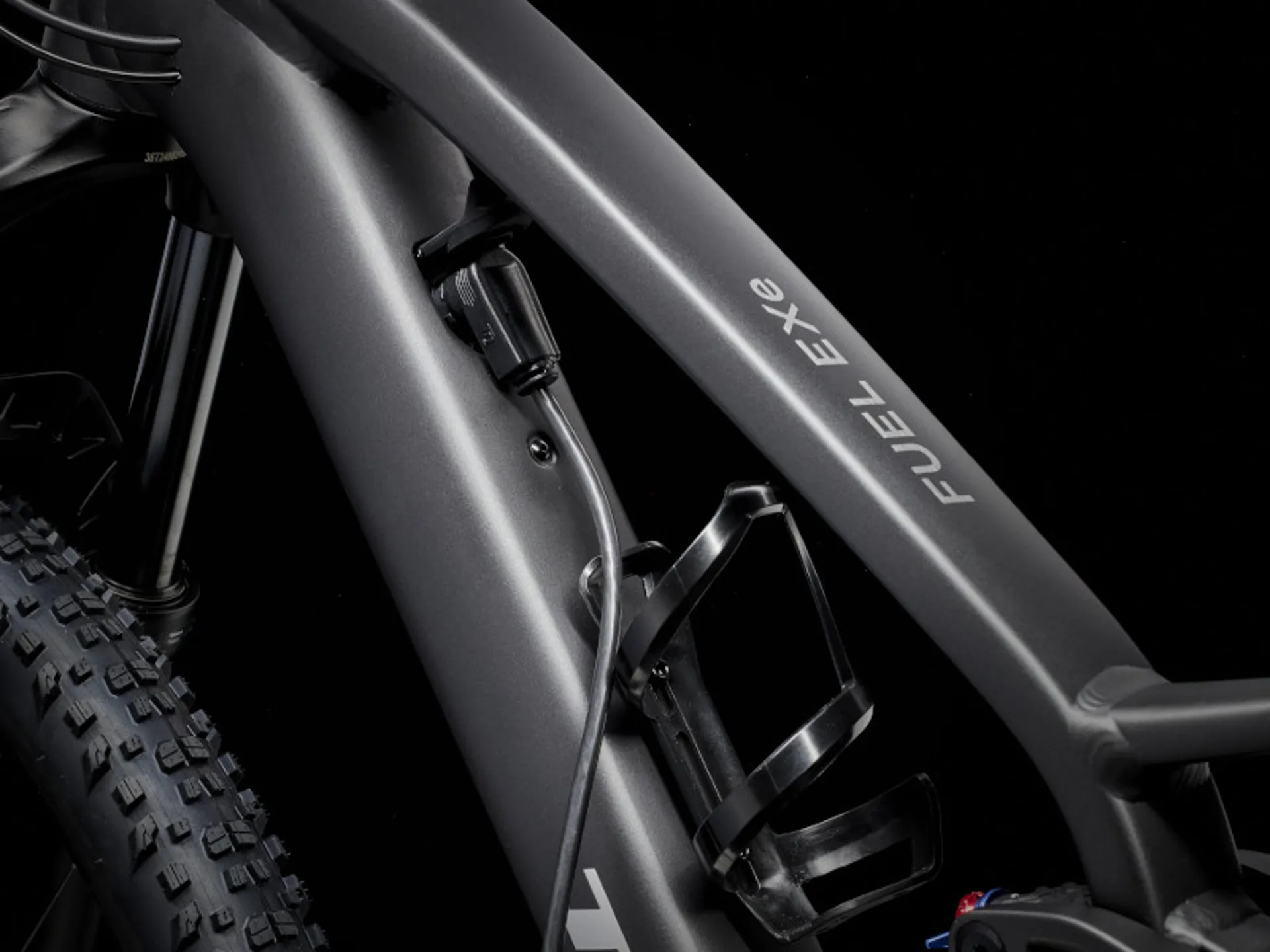

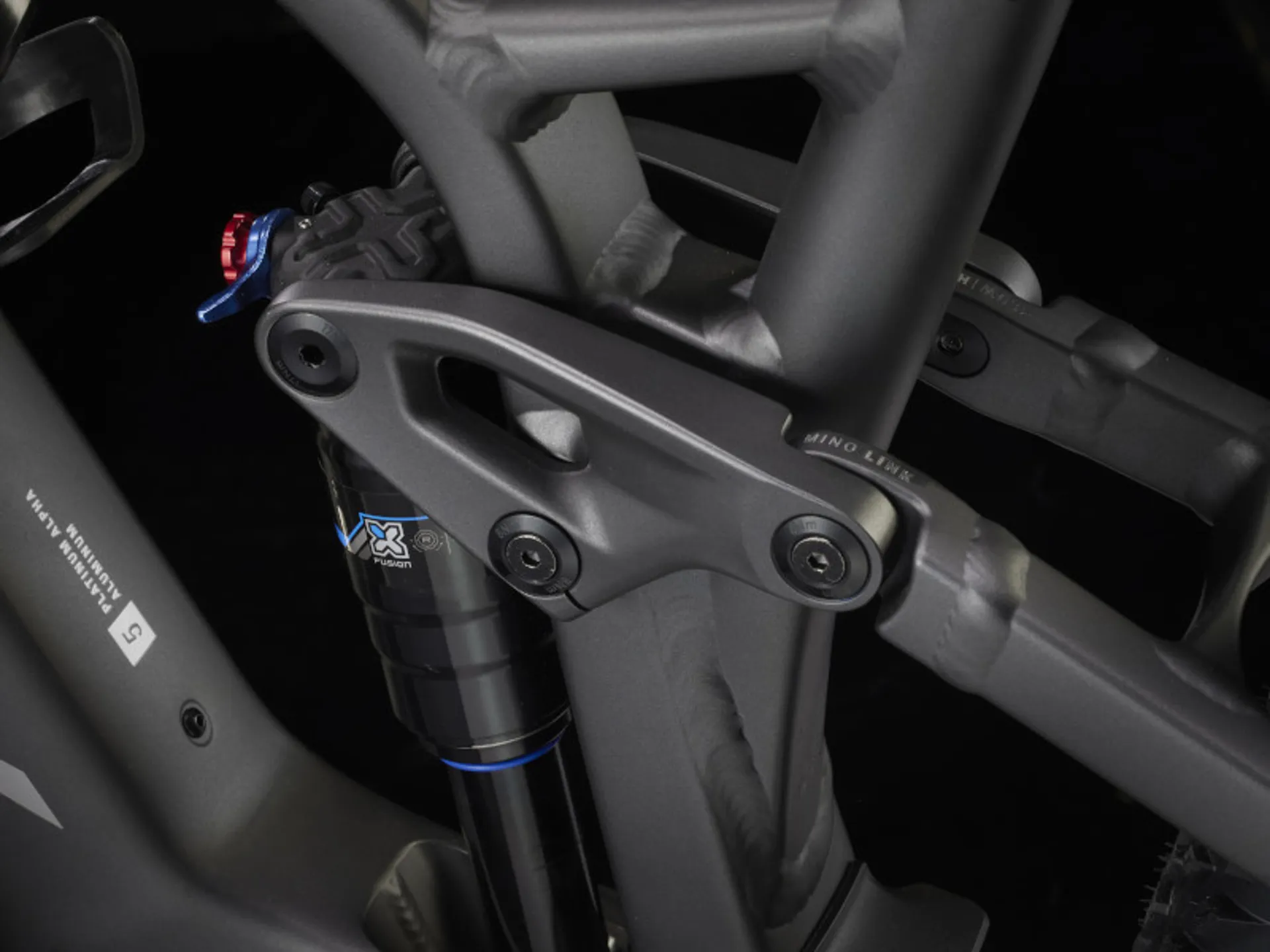

Frame: Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork: RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel

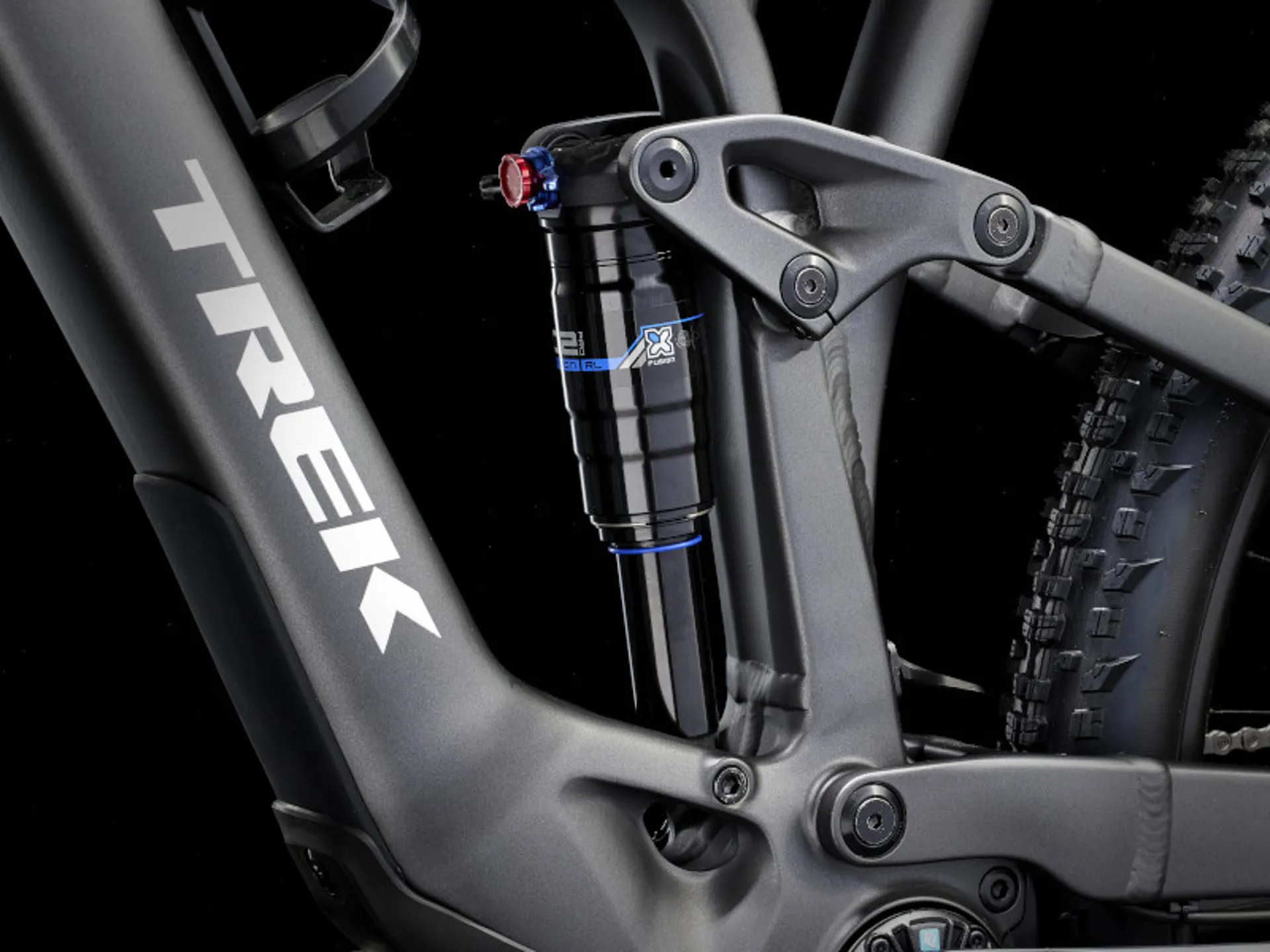

Shock: X-Fusion Pro 2, 2-position damper, 205 mm x60 mm
Wheels & Tyres
Front Hub: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rear Skewer: Bontrager Switch thru-axle, removable lever
Rims: Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
Tyres: Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
Sealant: Bontrager TLR sealant, 180 ml/6 oz
Rim Strip: Bontrager TLR
Gears & Drivetrain
Shifter: Shimano Deore M6100, 12-speed
Rear Derailleur: Shimano Deore M6100, long cage
Crank: E*thirteen E*spec Plus, 165 mm length
Chainring: E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Brakes

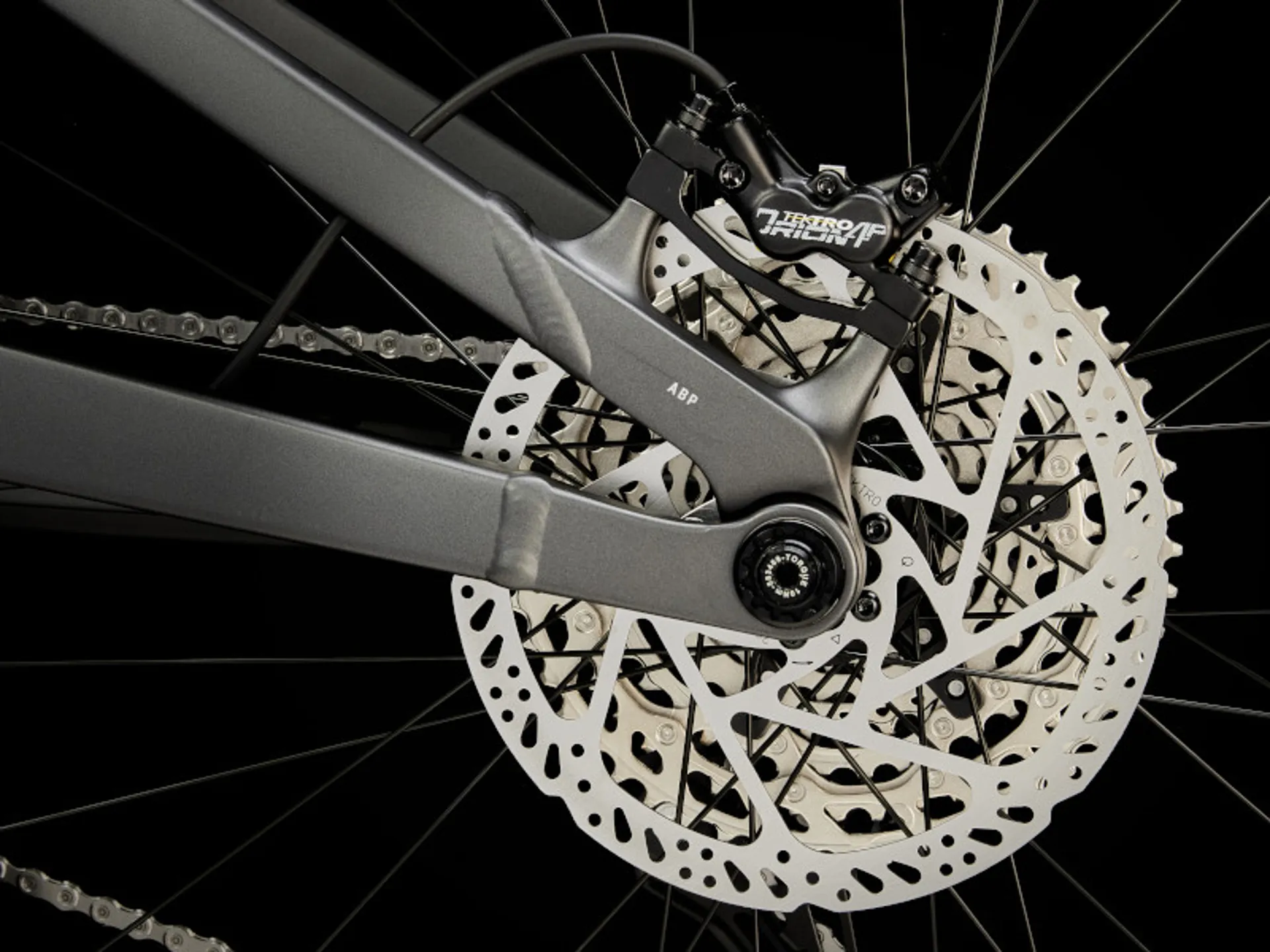

Brake: Tektro HD-745 4-Piston Hydraulic Disc
Brake Rotor: Tektro 6-Bolt, 203mm
Components
Saddle: Bontrager Arvada, Steel Rails, 138m width

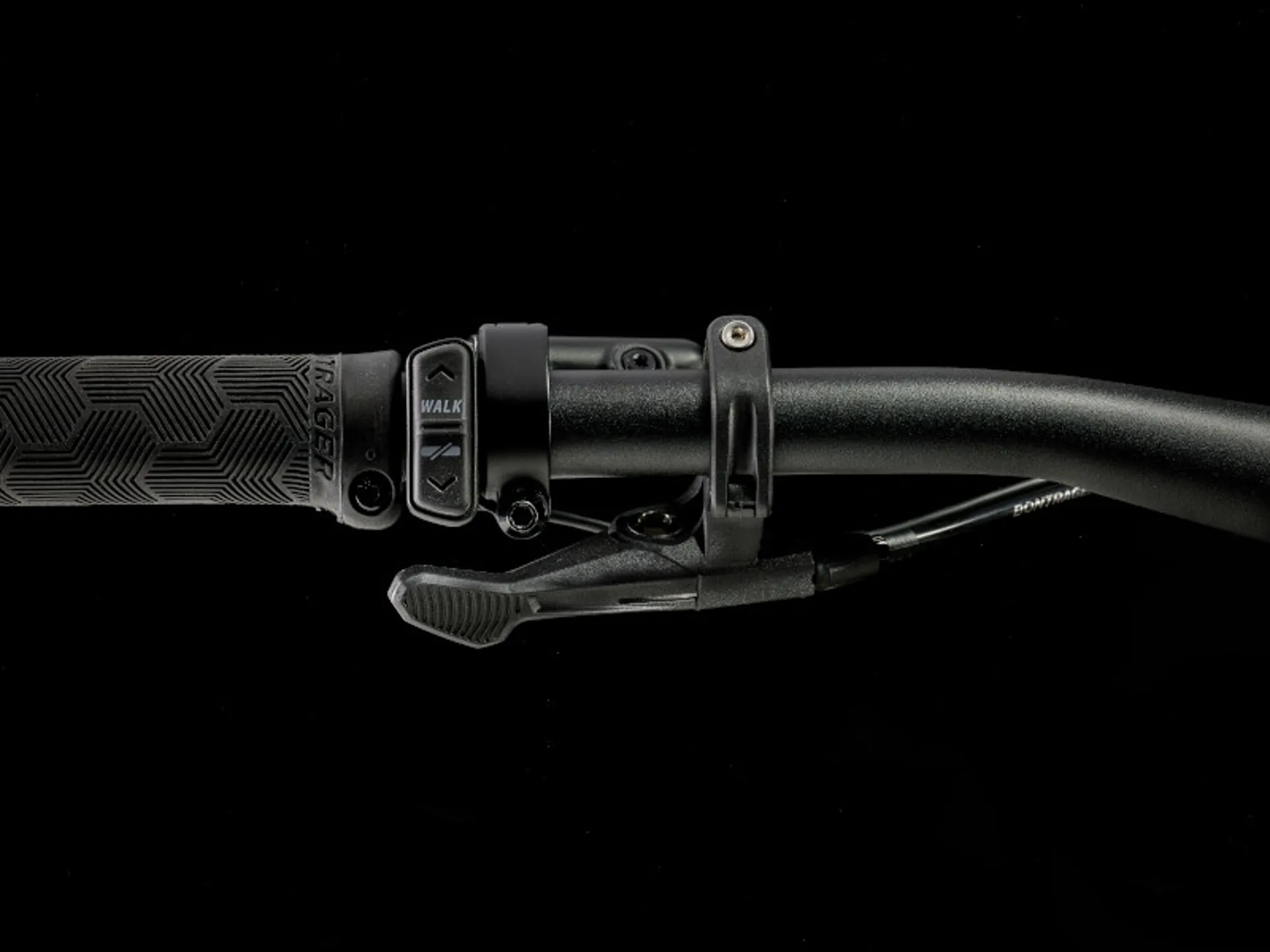

Seatpost: TranzX ranzX JD-YSI-22PLQ, internal routing, 34.9 mm, S: 100mm Travel, M: 150mm Travel, L/XL: 170mm Travel
Handlebar: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Battery & Motor

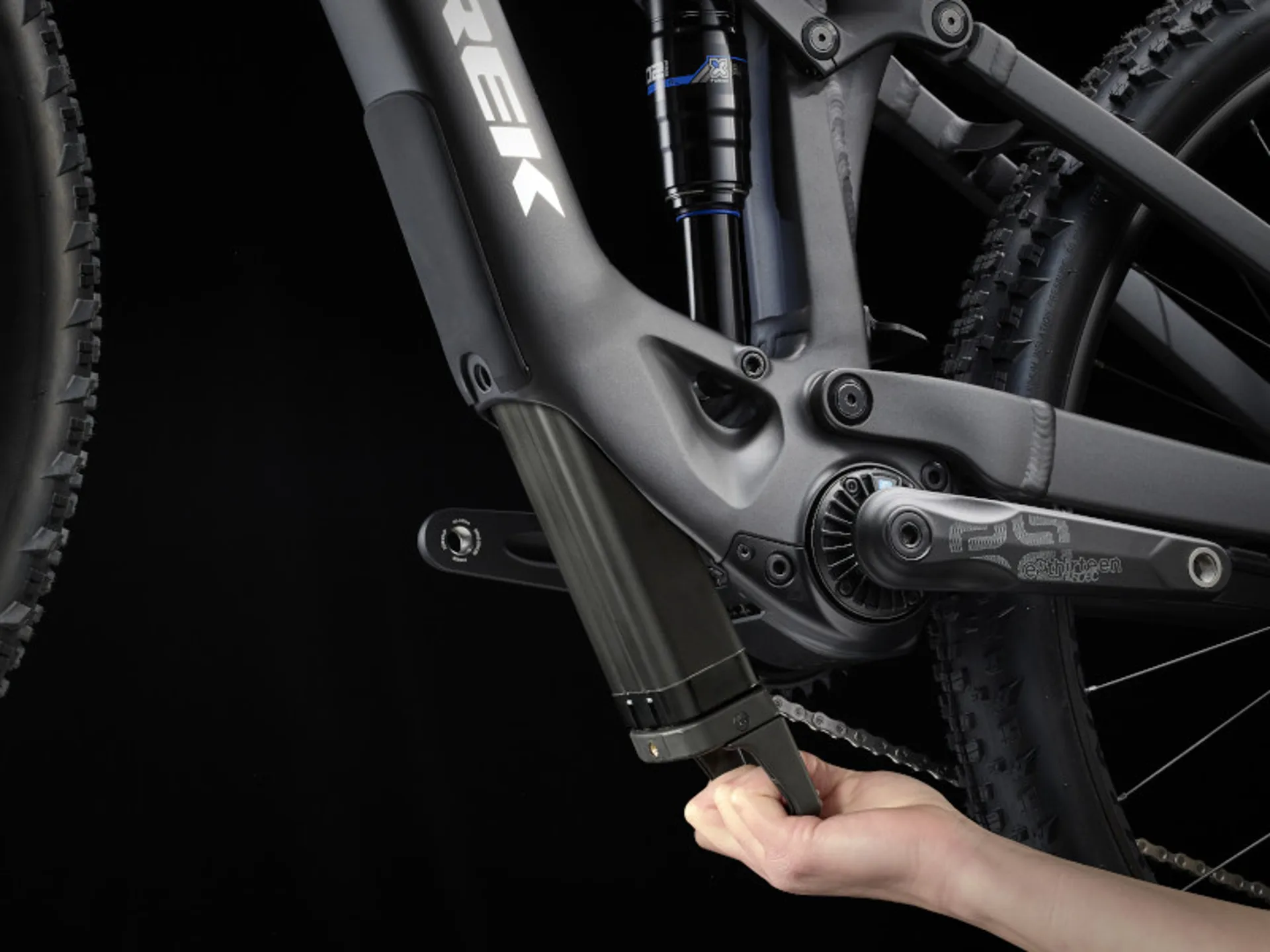

Battery: TQ 360Wh

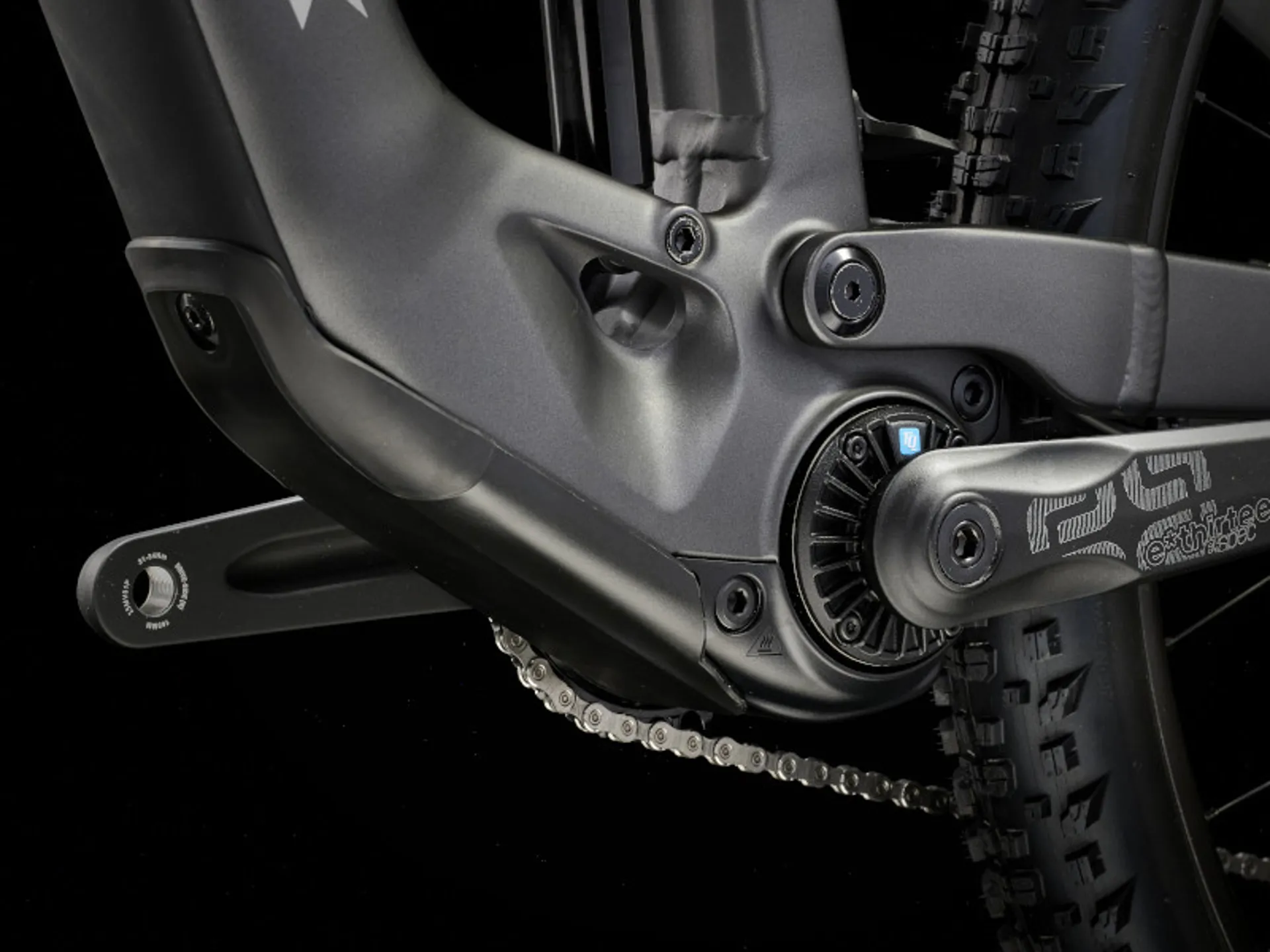

Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

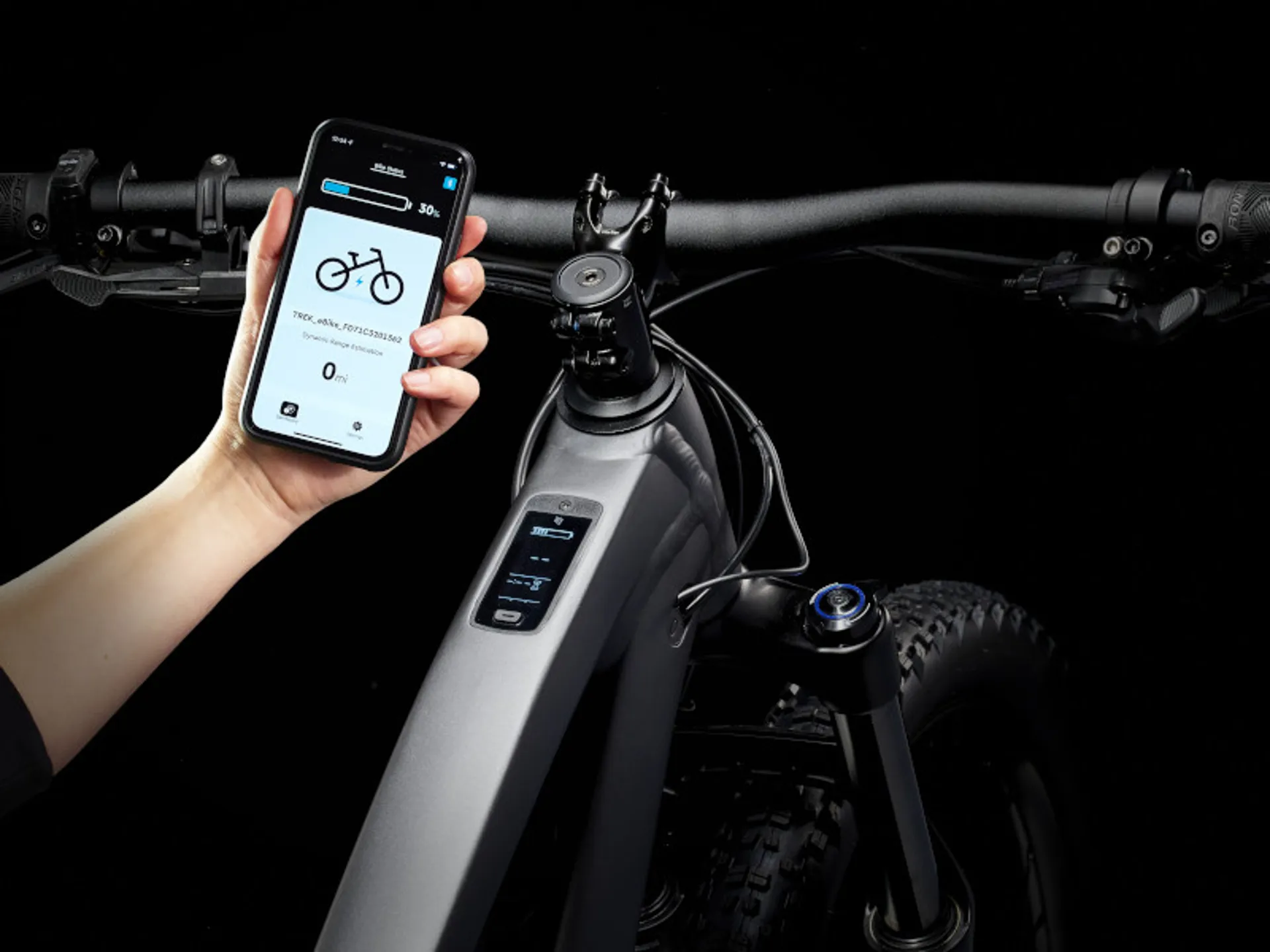

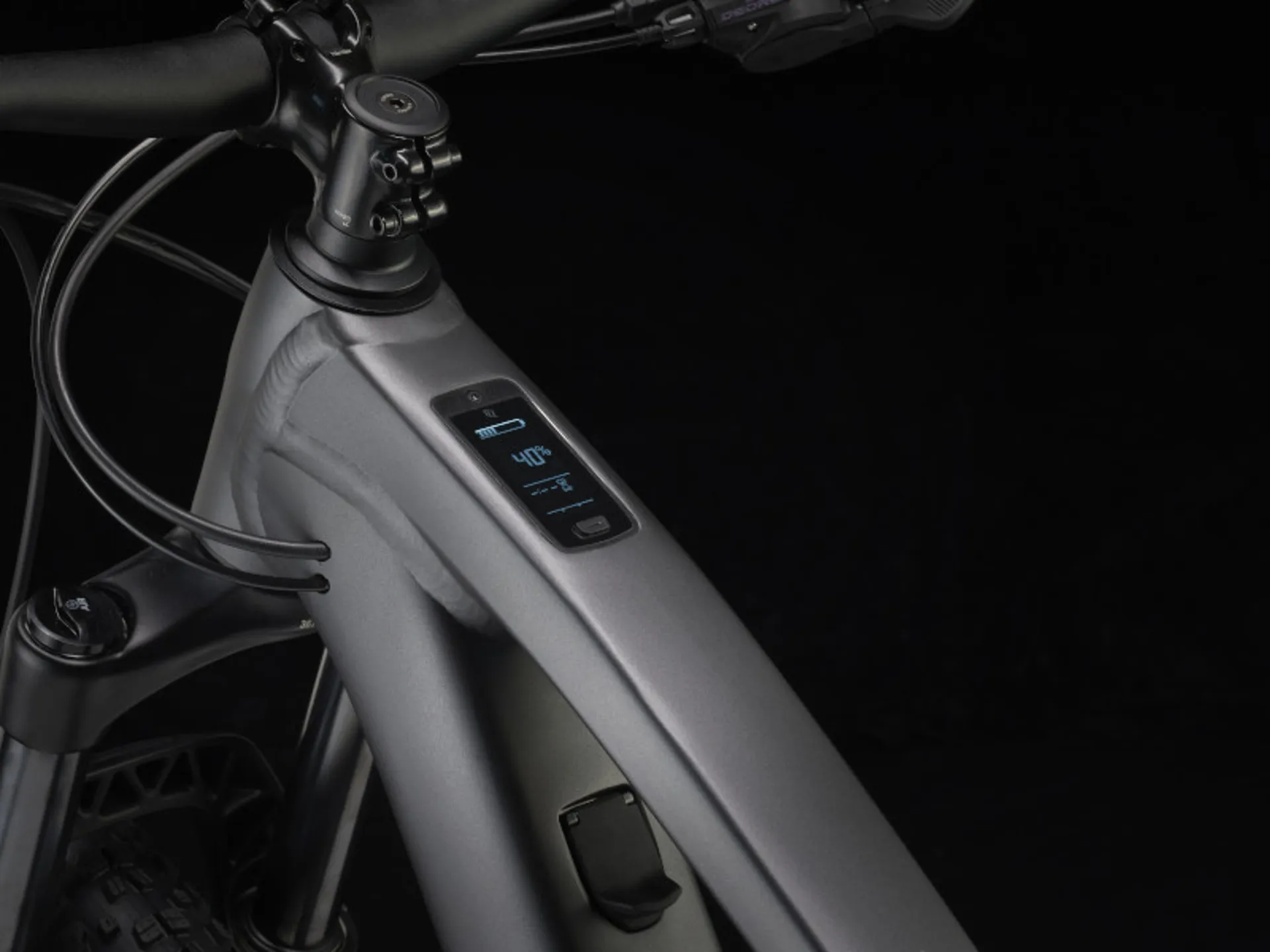

Computer: TQ LED display with Bluetooth & ANT+ connectivity
Charger: TQ 4A Charger
Weight
M – 20.80kg / 45.86 lbs (with TLR sealant, no tubes)
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
* Trek reserves the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
** Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
