Frame & Fork

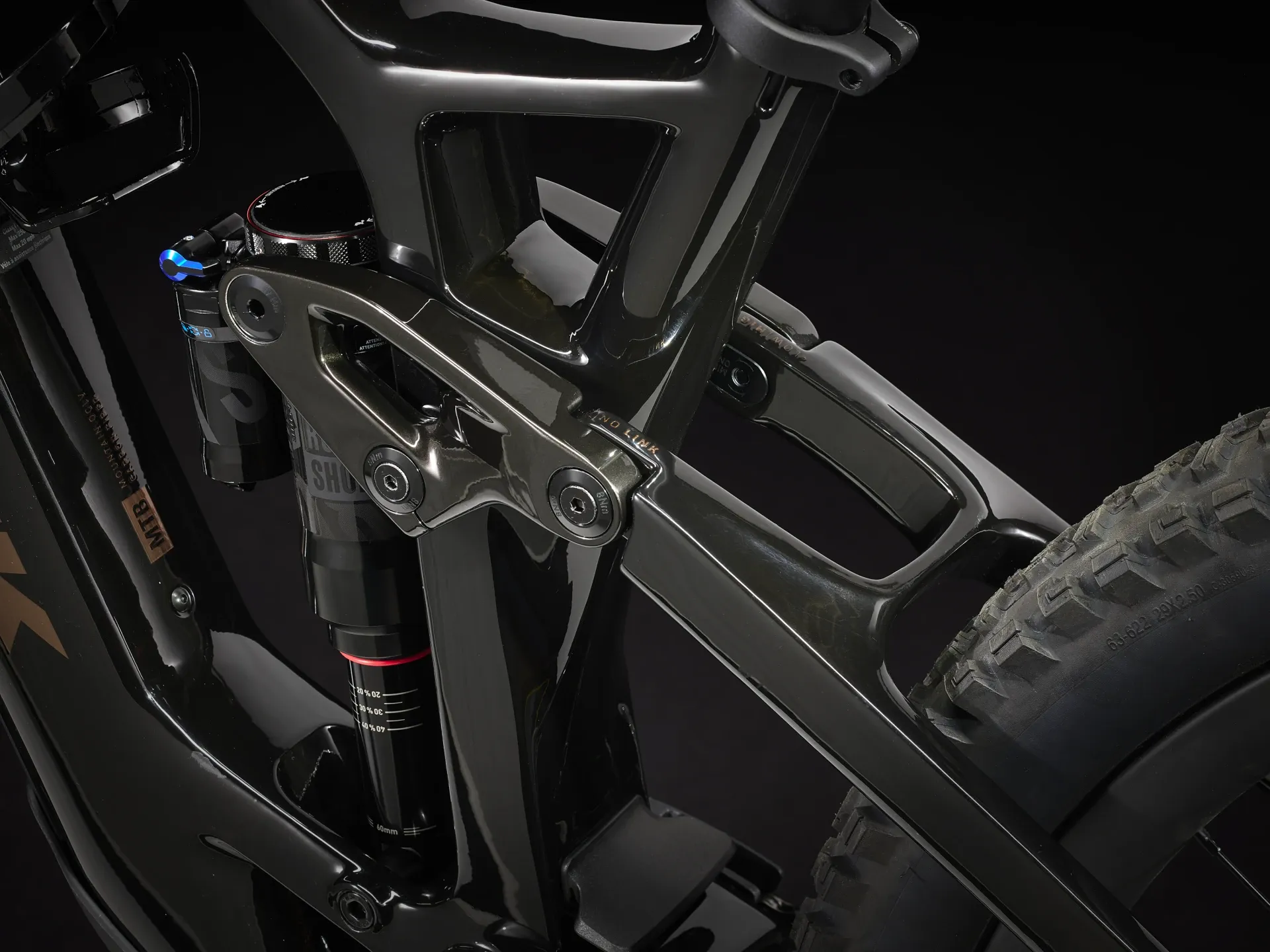

Frame: OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork: RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

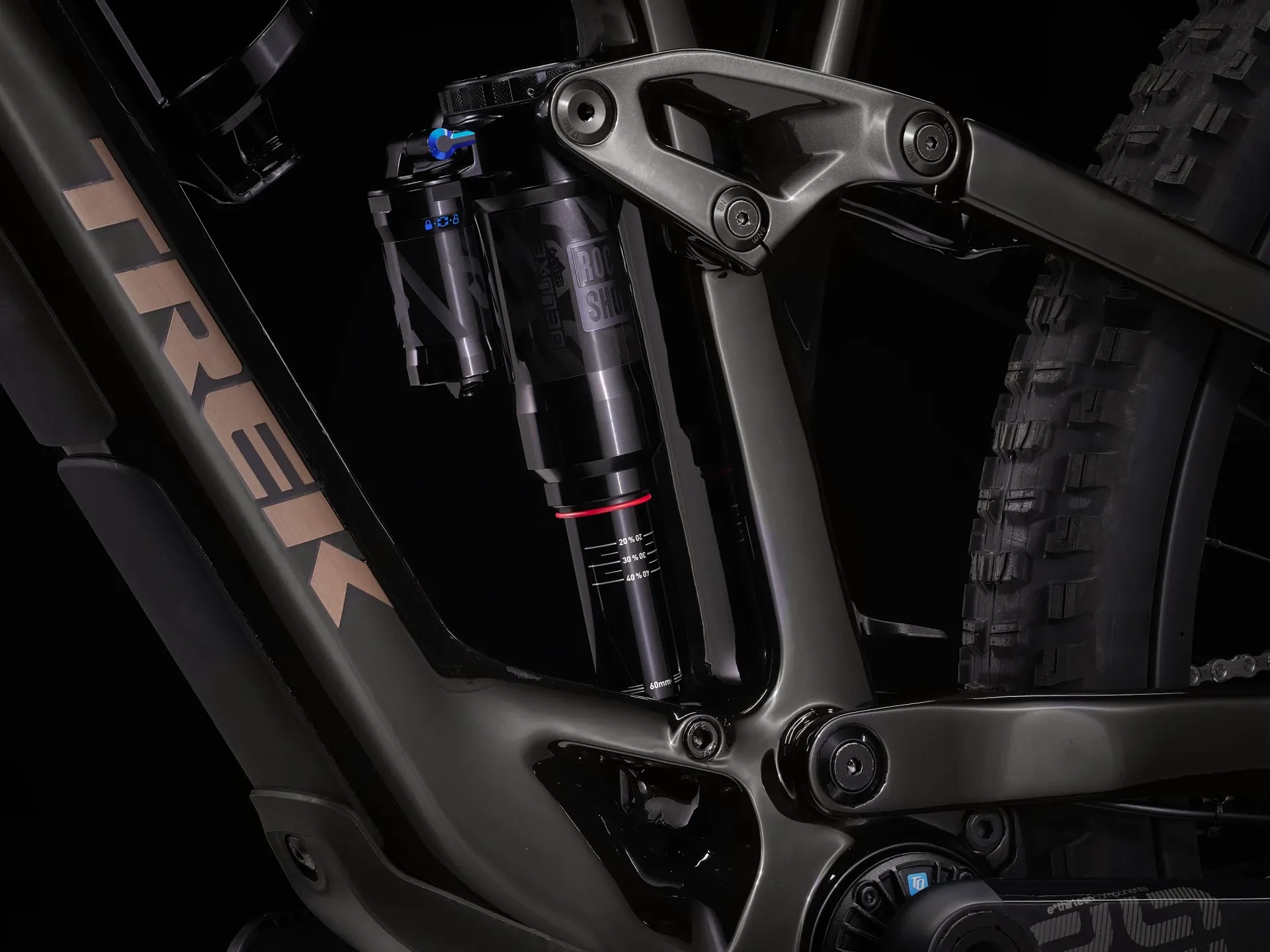

Shock: RockShox Super Deluxe Select+ RT, 205 mm x 60 mm
Wheels & Tyres
Front Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
Rear Skewer: Bontrager Switch thru-axle, removable lever
Tyres: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Sealant: Bontrager TLR sealant, 180 ml/6 oz
Battery & Motor

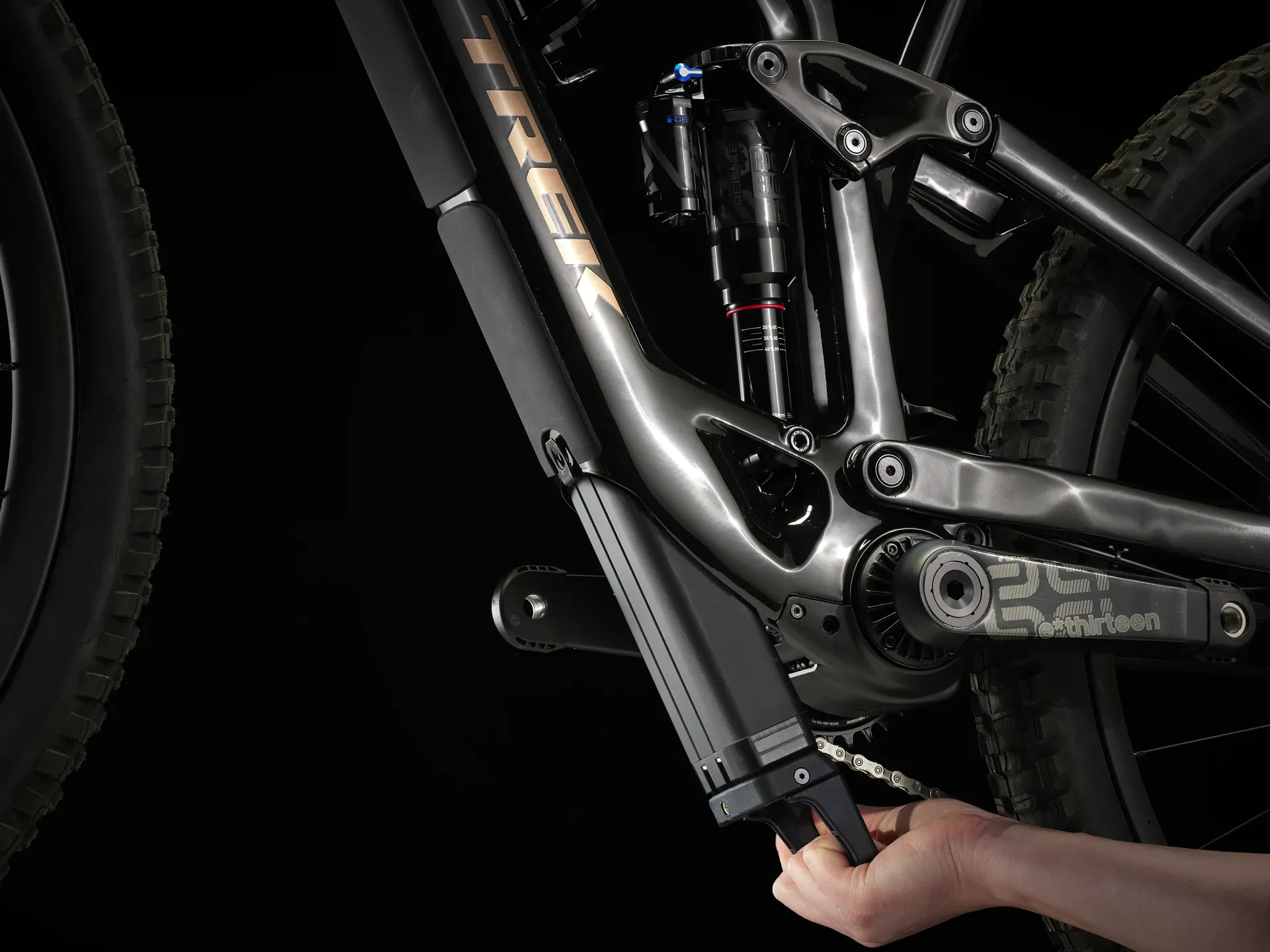

Battery: TQ 360 Wh

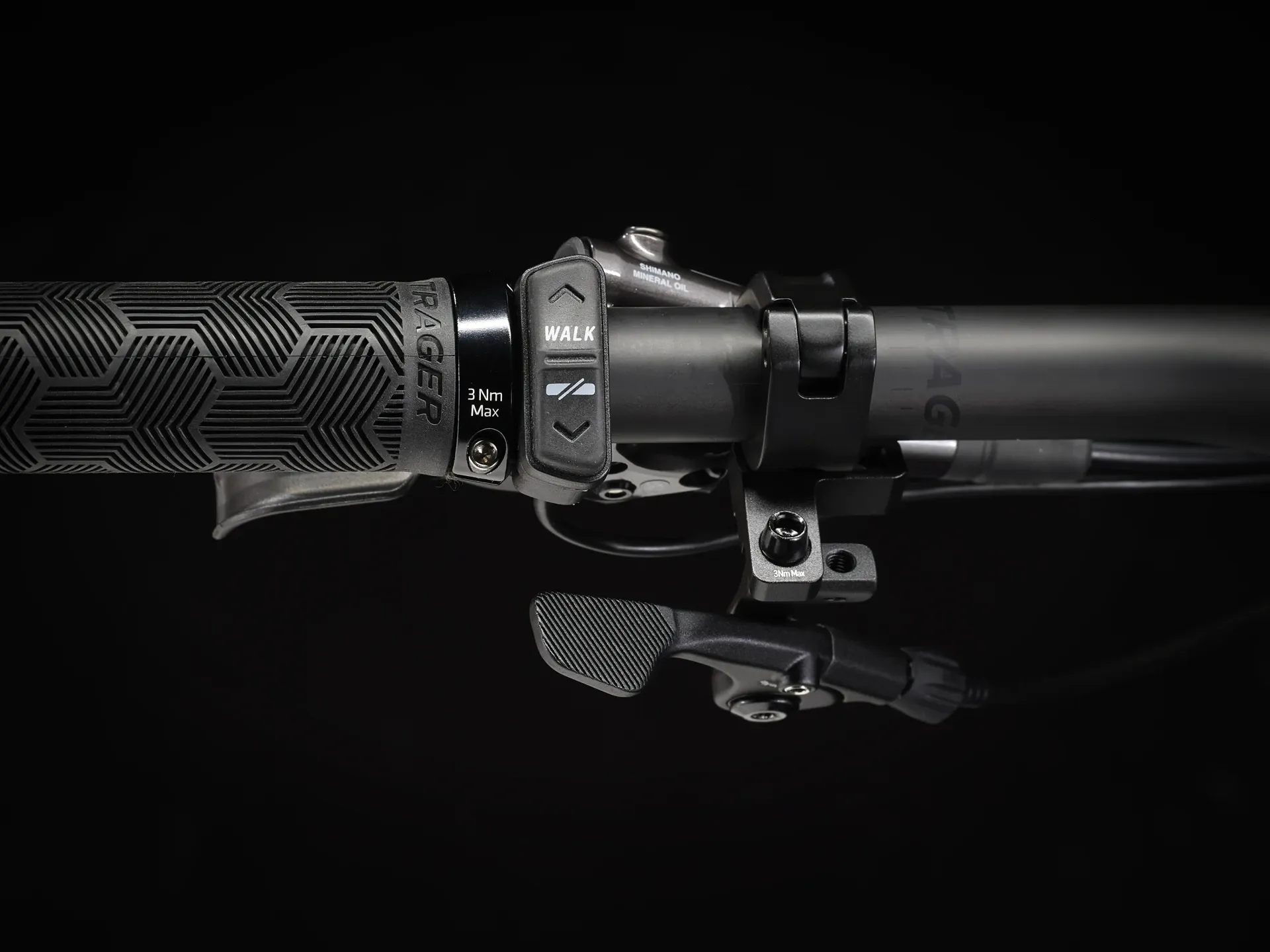

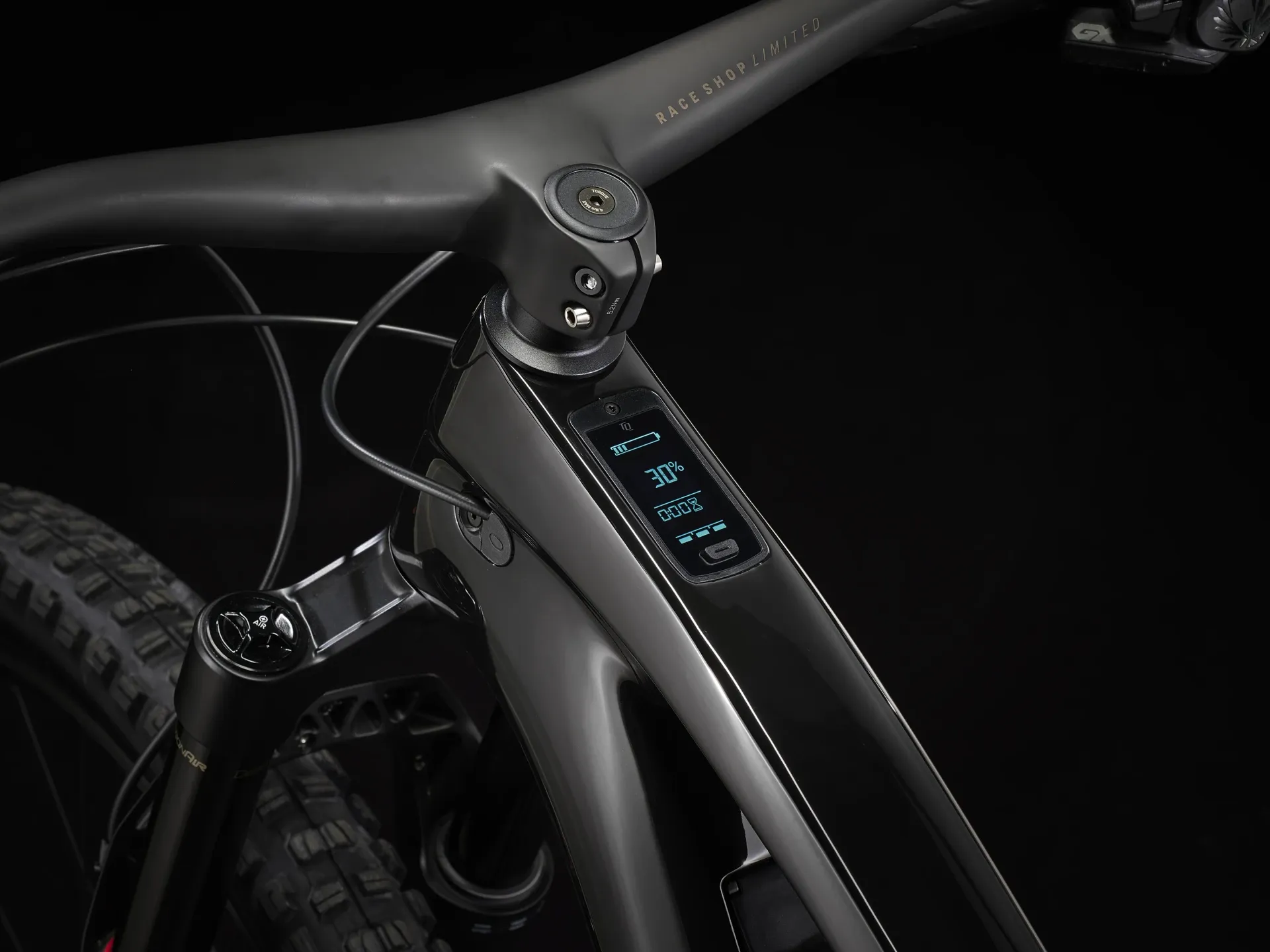

Controller: TQ LED display with Bluetooth & ANT+ connectivity
Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Electronics: TQ 4A charger
Gears & Drivetrain
Shifter: Shimano XT M8100, 12-speed
Rear Derailleur: Shimano XT M8100, long cage

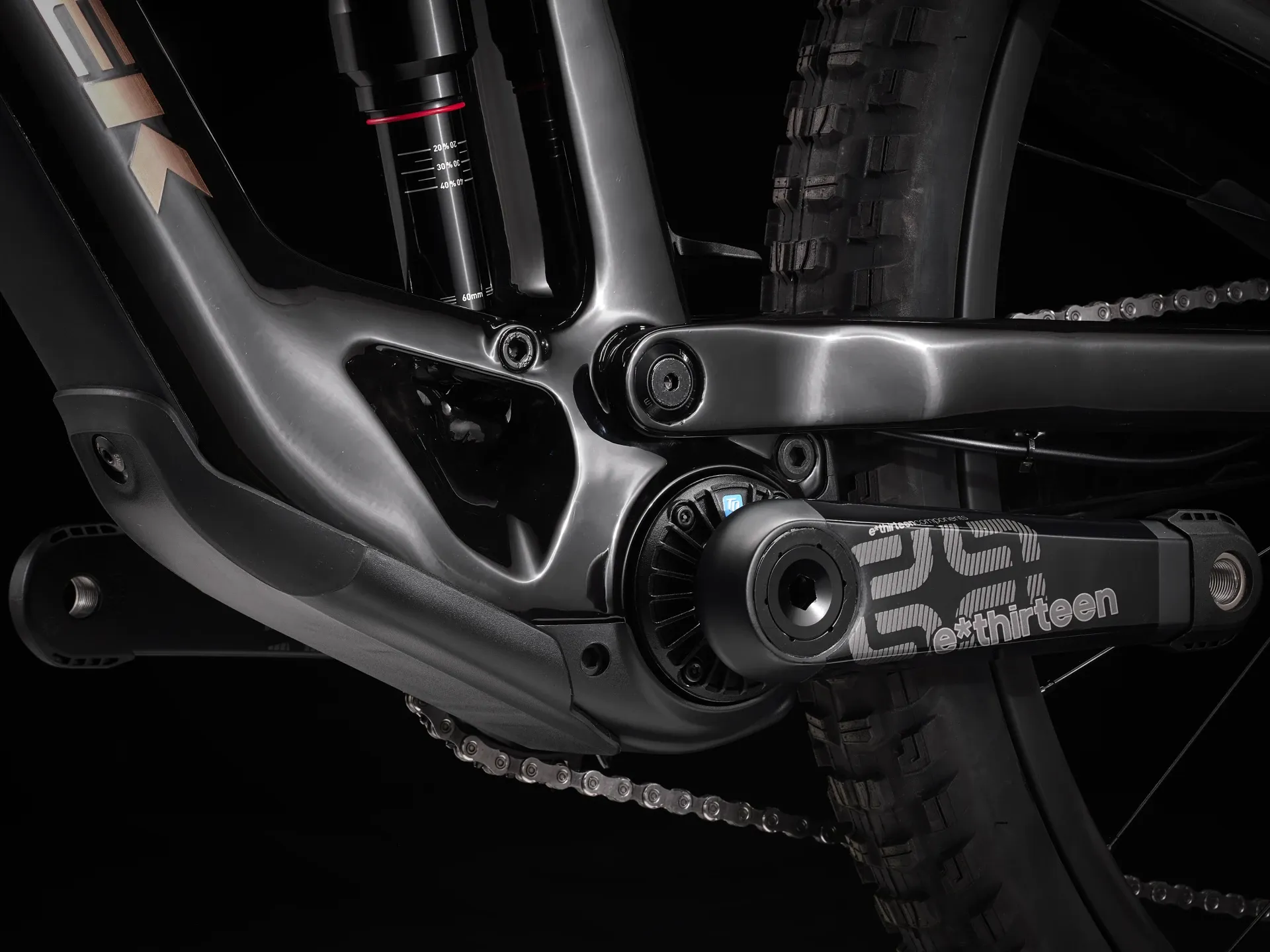

Crank: E*thirteen E*spec Plus, 34T, 165 mm length
Crank Arm: E*thirteen E*spec Race carbon, 34T, 165 mm length
Chainring: E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette: Shimano XT M8100, 10-51, 12-speed
Chain: Shimano XT M8100, 12-speed
Brakes

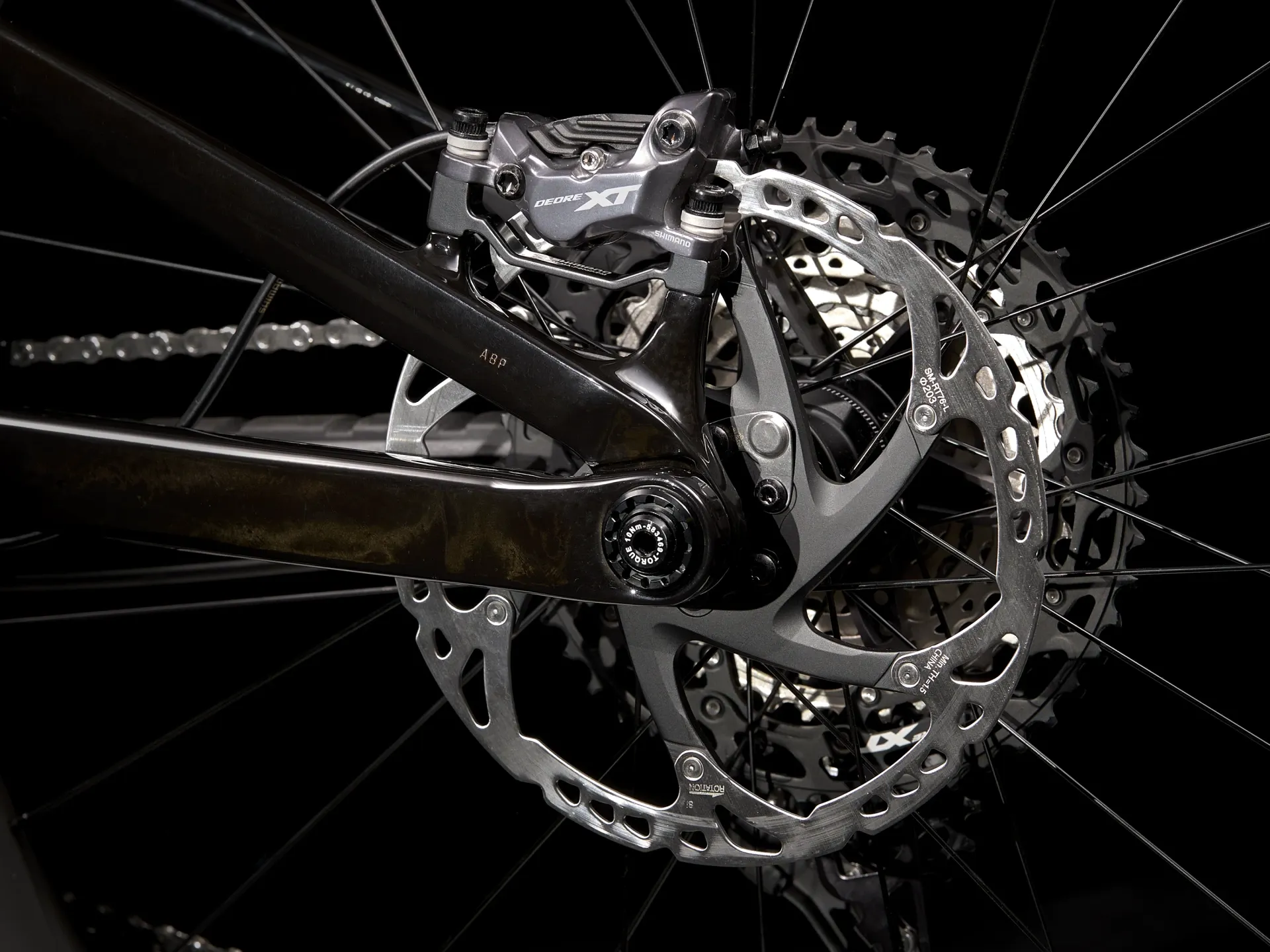

Brakes: Shimano XT M8120 4-piston hydraulic disc
Brake Rotor: Shimano RT76, 6-bolt, 203 mm
Components
Saddle: Bontrager Arvada, austenite rails, 138 mm width
Seatpost: Bontrager Line Elite Dropper, S - 100mm, M – 150mm, L – 170mm, XL – 200mm Travel, MaxFlow, internal routing, 34.9 mm, S - 345 mm, M – 440mm, L – 485mm, XL – 550mm length
Integrated Bar Stem: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, S: 35mm Length, M-XL: 45mm Length
Grips: Bontrager XR Trail Elite, nylon lock-on
Weight
Weight: M – 18.10kg / 39.91 lbs
Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
